Degas Bottle: Notes
NOTE:
3.5L Gasoline Turbocharged Direct Injection (GTDI) vehicles are not equipped with power steering reservoirs.

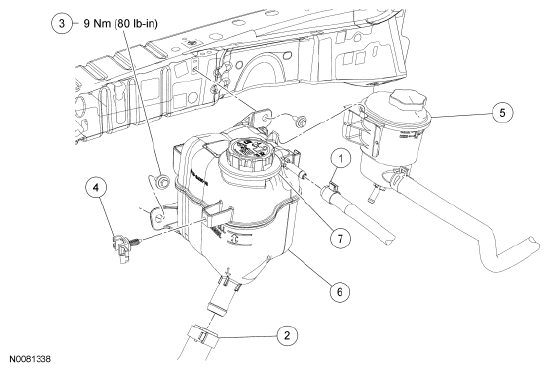

| Item | Part Number | Description |
|---|---|---|
| 1 | 8B541 | Upper degas bottle hose |
| 2 | 8W005 | Lower degas bottle hose |
| 3 | W706681 | Degas bottle bolt (2 required) |
| 4 | 19B632 | Pin-type retainer |
| 5 | 3E764 | Power steering reservoir (if equipped) |
| 6 | 8A080 | Degas bottle |
| 7 | 8101 | Pressure relief cap |
