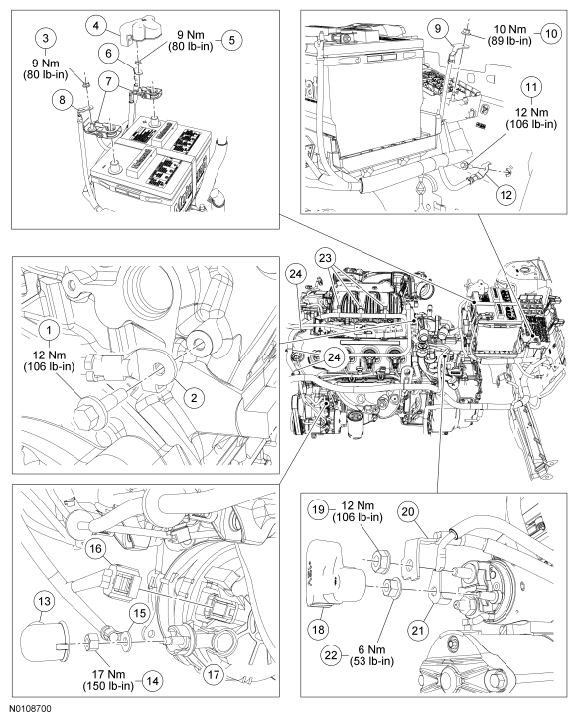

| 1 |
W506412 |
Engine ground cable bolt |
| 2 |
- |
Engine ground cable end (part of 14300) |
| 3 |
N805320 |
Battery negative terminal cable end nut |
| 4 |
- |
Battery positive protective cover |
| 5 |
N805320 |
Battery positive terminal cable end nut |
| 6 |
- |
Battery positive terminal cable end (part of 14300) |
| 7 |
14300 |
Battery cable terminals |
| 8 |
- |
Battery positive cable end (part of 14300) |
| 9 |
- |
Battery Junction Box (BJB) cable end (part of 14300) |
| 10 |
W705764 |
BJB cable nut |
| 11 |
- |
Body ground cable bolt |
| 12 |
- |
Body ground cable terminal (part of 14300) |
| 13 |
- |
Generator B+ terminal cover |
| 14 |
W711953 |
Generator B+ cable nut |
| 15 |
- |
Generator B+ cable end (part of 14300) |
| 16 |
- |
Generator electrical connector (part of 14300) |
| 17 |
- |
Generator B+ terminal |
| 18 |
11N087 |
Starter terminal cover |
| 19 |
W706414-S |
Starter B+ cable nut |
| 20 |
- |
Battery cable starter cable |
| 21 |
- |
Starter solenoid cable terminal (part of 14B060) |
| 22 |
N805320-S |
Starter solenoid terminal nut |
| 23 |
- |
Battery cable harness locators (part of 14B060) |
| 24 |
14A163 |
Battery cable locators (3 required) |
