Halfshaft - RH: Notes

SPECIAL TOOLS

Remover, Front Wheel Hub
205-D070 (D93P-1175-B) or equivalent

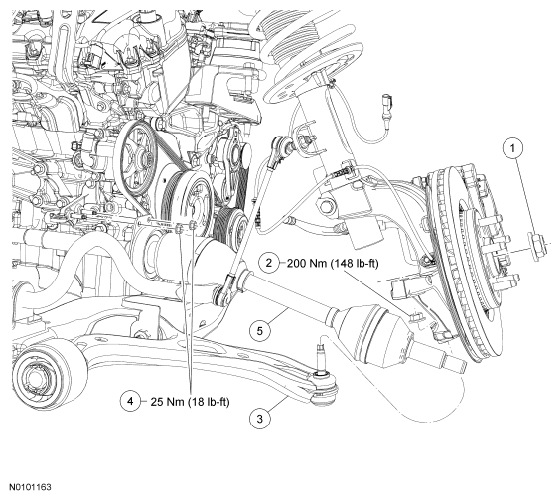

Fig 1: Exploded View Of Halfshaft - RH With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W712435	Wheel hub nut
2	W710015	Lower ball joint nut
3	3K170	Lower ball joint
4	W520413	Halfshaft bracket nuts (2 required)
5	3B436	Halfshaft assembly
