Removal and Installation

NOTE: For parts identification and location, refer to SEAT - EXPLODED VIEW, SECOND ROW .

Remove the rear seat cushion. For additional information, refer to SEAT CUSHION - REAR .
At the right rear of the seat cushion, remove the hog rings necessary to access the heated seat module.
Remove the tie strap, disconnect the 2 electrical connectors and remove the heated seat module.

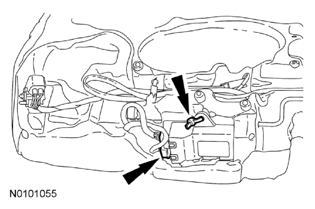

Fig 1: Locating Tie Strap And Electrical Connectors
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
Carry out module auto-configuration:
- Start the vehicle and push the low button on either heated seat switch.
- Operate the heated seats, monitor the indicators and verify the system is operating correctly in high and low.
