OEM Ground Distribution: Grounds: G203

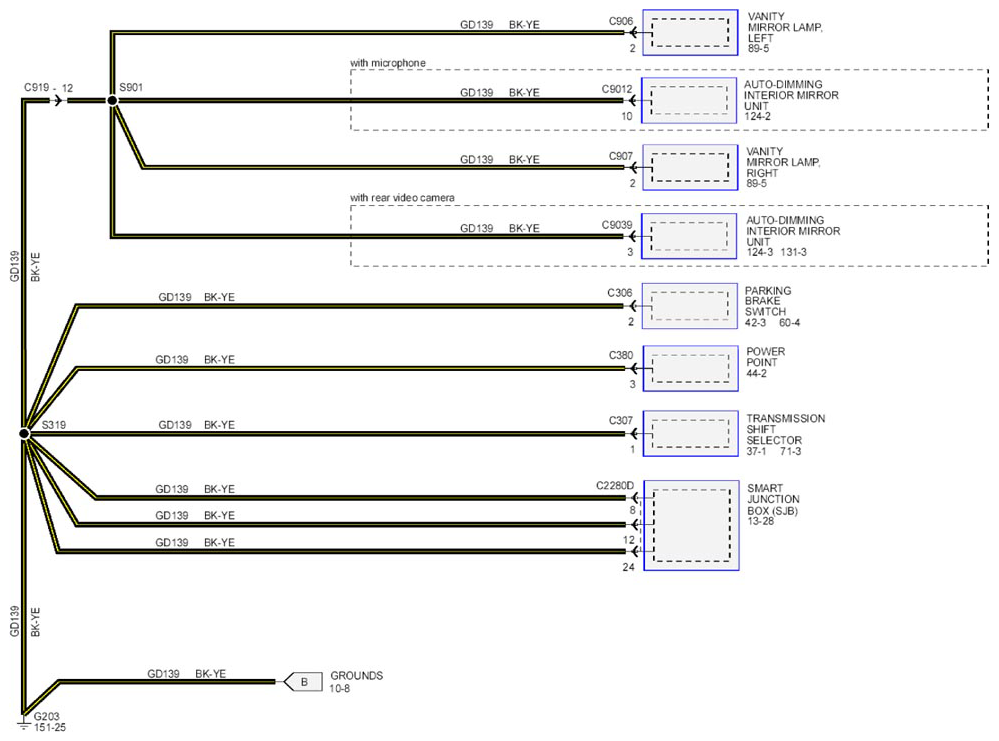

Fig 1: Ground Circuit Diagram - G203 (1 Of 2)

G07925311

Courtesy of FORD MOTOR CO.

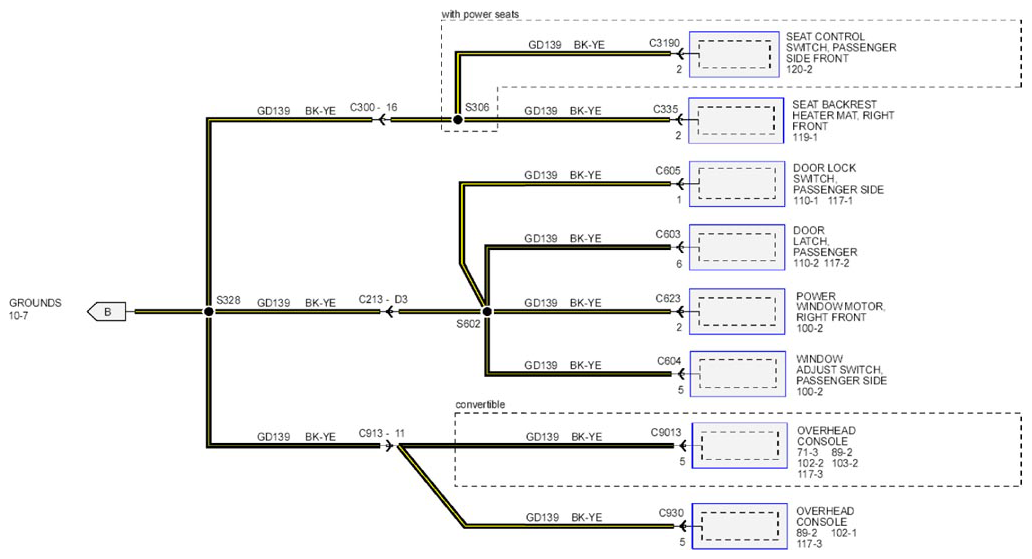

Fig 2: Ground Circuit Diagram - G203 (2 Of 2)

G07925312

Courtesy of FORD MOTOR CO.
