Fuel Pump Control Module: Notes

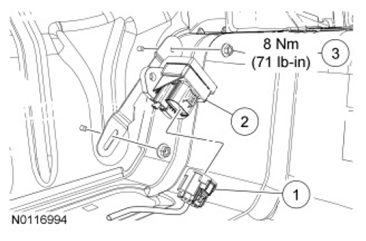

Fig 1: Fuel Pump Control Module, Bracket Nut And Electrical Connector With Torque Specifications
G07488262Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Fuel Pump Control Module (FPCM) electrical connector (part of 14A005)
2 9D372 FPCM
3 W707142 FPCM bracket nut (2 required)
