Hood Latch Release Handle: Notes

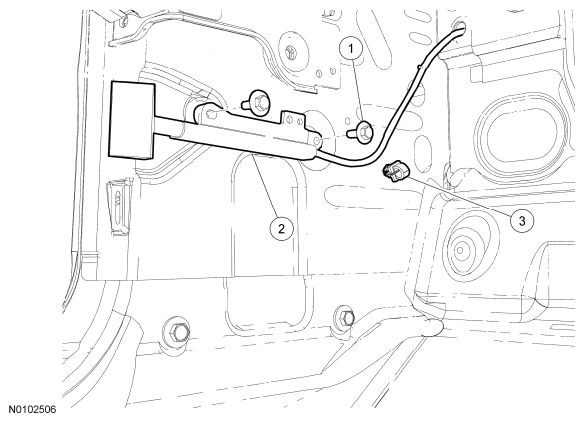

Fig 1: Identifying Hood Latch Release Handle
G06404050Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W611103 Hood latch release handle bolts (2 required)
2 16916 Hood latch release handle and cable
3 W712867 Hood latch release cable clip
