Selector Lever Knob: Removal

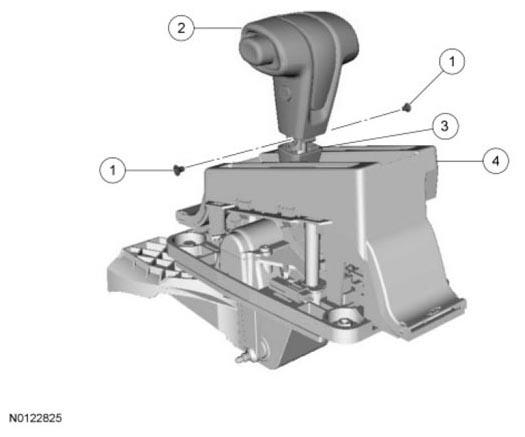

Fig 1: Identifying Selector Lever Knob Related Components

G07488542

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W701894	Selector lever knob screws (2 required)
2	7213	Selector lever knob
3	-	Selector lever knob shroud (part of 7213)
4	7210	Selector lever assembly

Remove the selector lever. For additional information, refer to SELECTOR LEVER .
Disconnect the Transmission Control Switch (TCS) electrical connector.

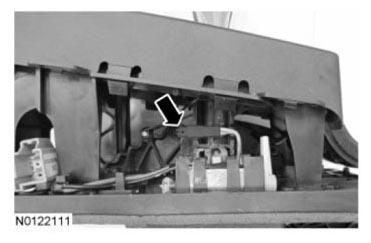

Fig 2: Locating Transmission Control Switch Electrical Connector
Courtesy of FORD MOTOR CO.
Using a suitable tool, carefully pry the selector lever knob shroud down.

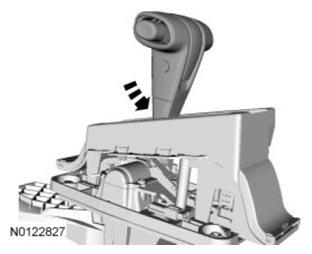

Fig 3: Prying Selector Lever Knob Shroud Down
Courtesy of FORD MOTOR CO.

NOTE: LH shown in illustration, RH similar.

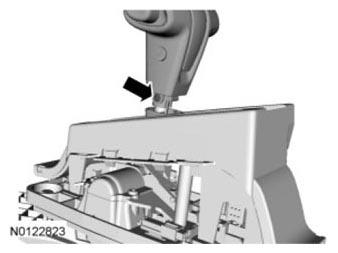

Fig 4: Locating Selector Lever Knob Screw

G07488545

Courtesy of FORD MOTOR CO.

With the selector lever knob shroud down, remove the 2 selector lever knob screws.
Remove the selector lever knob and shroud from the selector shaft.
