Home >> Ford >> 2012 >> Mustang Base, 2D Convertible, Automatic Trans >> Repair and Diagnosis >> Quick Lookups >> Wiring Diagrams >> OEM Ground Distribution >> Grounds >> G402

OEM Ground Distribution: Grounds: G402

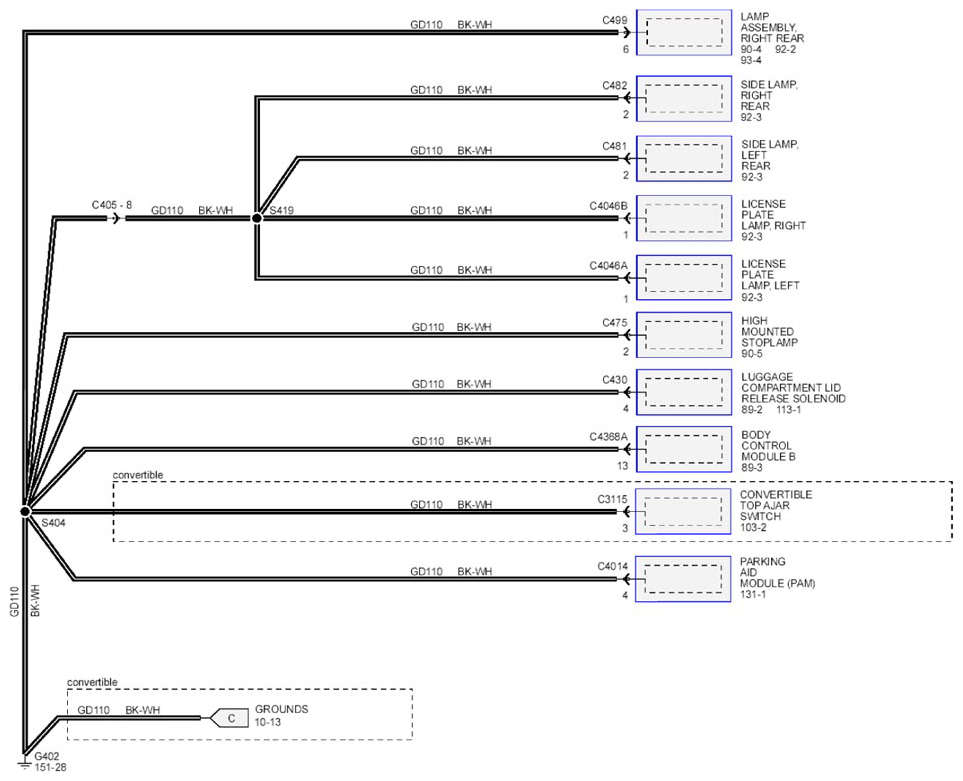

Fig 1: Ground Circuit Diagram - G402 (1 Of 2)

G07925316

Courtesy of FORD MOTOR CO.

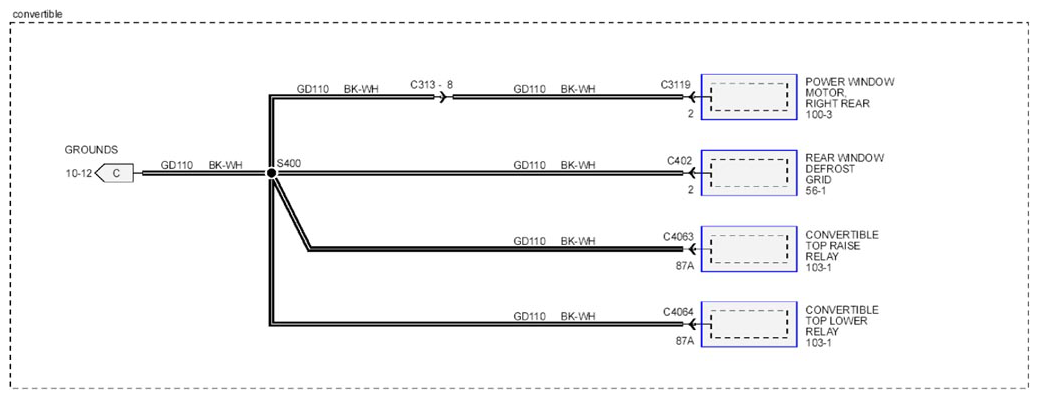

Fig 2: Ground Circuit Diagram - G402 (2 Of 2)

G07925317

Courtesy of FORD MOTOR CO.
