OEM Ground Distribution: Grounds: G201

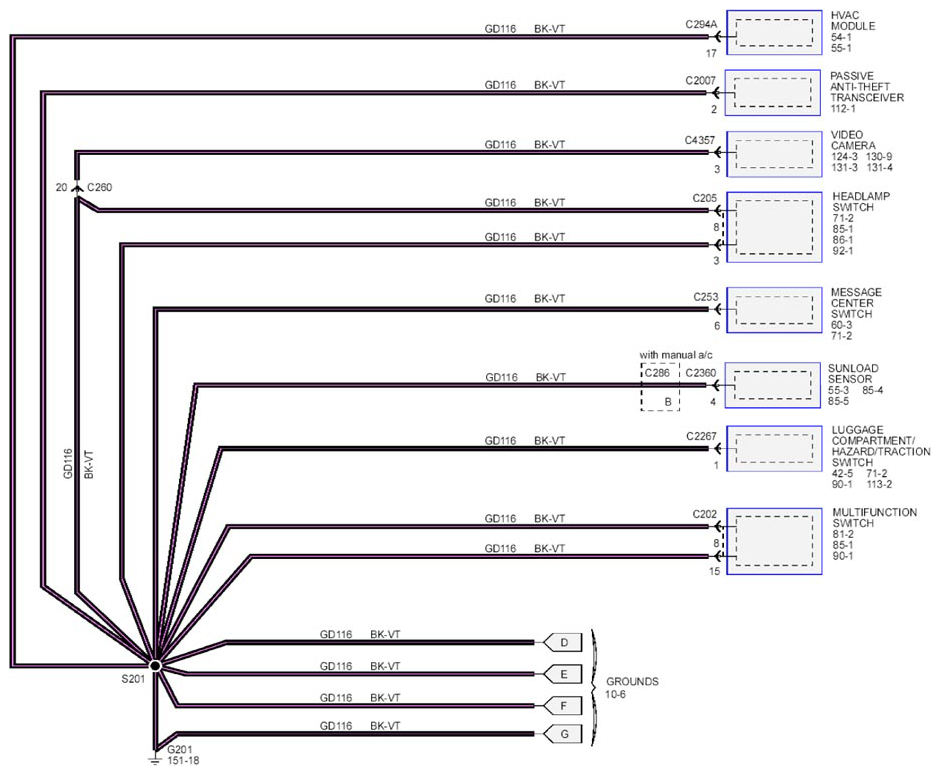

Fig 1: Ground Circuit Diagram - G201 (1 Of 2)

G07925309

Courtesy of FORD MOTOR CO.

Fig 2: Ground Circuit Diagram - G201 (2 Of 2)

G07925310

Courtesy of FORD MOTOR CO.
