Power Liftgate Rod: Notes
WARNING: This page is about a different car, the 2015 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
Material
| Item | Specification |
| Motorcraft ® Threadlock 262TA-26 | WSK-M2G351-A6 |

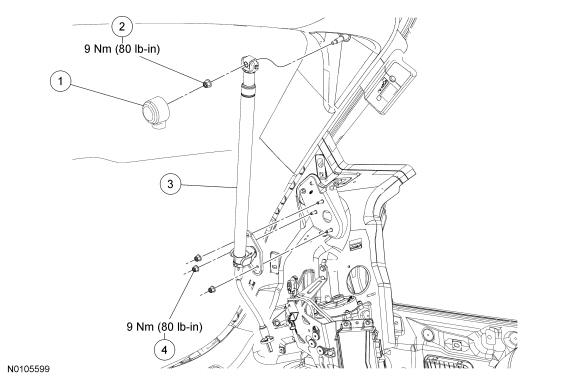

| Item | Part Number | Description |
|---|---|---|
| 1 | 7821978 | Power liftgate rod-to-liftgate nut cover |
| 2 | W520201 | Power liftgate rod-to-liftgate nut |
| 3 | 74431A78 | Power liftgate rod assembly |
| 4 | W520201 | Power liftgate rod mounting bracket nut (3 required) |
