Removal And Installation: Liftgate: Notes
WARNING: This page is about a different car, the 2015 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
Material
| Item | Specification |
| Motorcraft ® Threadlock 262TA-26 | WSK-M2G351-A6 |

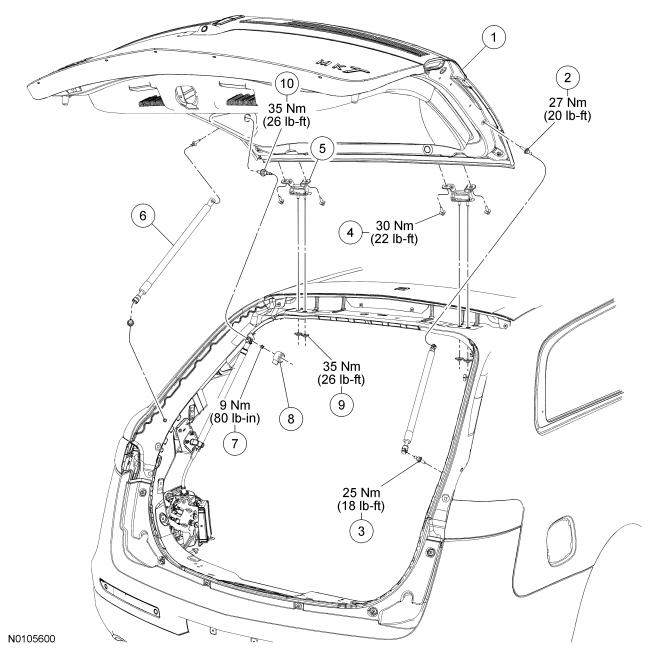

| Item | Part Number | Description |
|---|---|---|
| 1 | 7440400 | Liftgate assembly |
| 2 | W714118 | Liftgate strut-to-liftgate stud (2 required) |
| 3 | W713408 | Liftgate strut-to-body stud (2 required) |
| 4 | N806738 | Liftgate hinge-to-liftgate bolt (4 required) |
| 5 | 7442900 | Liftgate hinge (2 required) |
| 6 | 74406A10 LH/ 74406A11 RH LH/ 74406A11 RH | Liftgate strut (2 required) |
| 7 | W520201 | Power liftgate rod-to-liftgate nut |
| 8 | 7821978 | Power liftgate rod-to-liftgate nut cover |
| 9 | N801193 | Liftgate hinge-to-body nut (4 required) |
| 10 | 404E48 | Power liftgate rod stud |
