Removal And Installation: Door: Notes
WARNING: This page is about a different car, the 2015 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

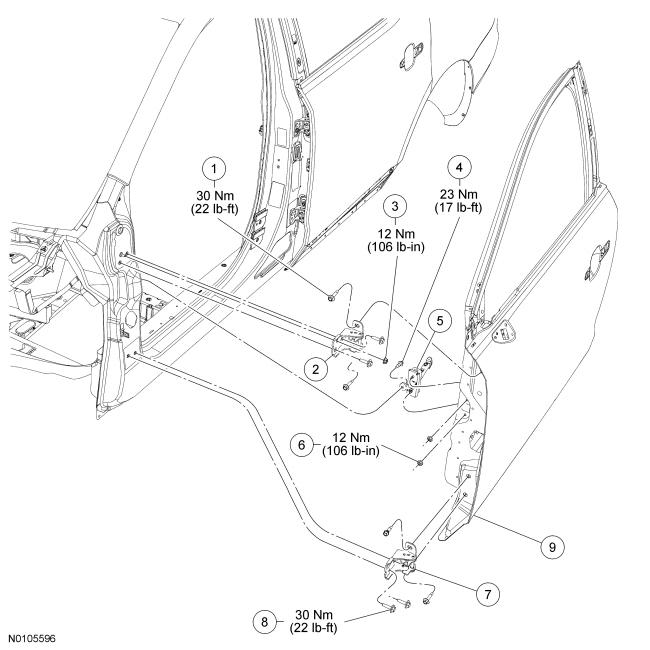

Front Door
| Item | Part Number | Description |
|---|---|---|
| 1 | W713956 | Front door hinge-to-door bolt (4 required) |
| 2 | 22801 LH/ 22800 RH LH/ 22800 RH | Front door upper hinge |
| 3 | W712741 | Front door hinge-to-body nut |
| 4 | W713956 | Front door check arm bolt |
| 5 | 23553 | Front door check arm |
| 6 | W712741 | Front door check arm nut (2 required) |
| 7 | 22810 RH/ 22811 LH RH/ 22811 LH | Front door lower hinge |
| 8 | W713956 | Front door hinge-to-body bolt (4 required) |
| 9 | 20125 LH/ 20124 RH LH/ 20124 RH | Front door assembly |

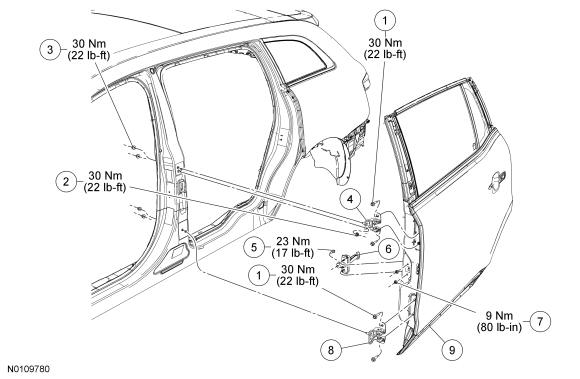

Rear Door
| Item | Part Number | Description |
|---|---|---|
| 1 | W713956 | Rear door hinge-to-door bolts (4 required) |
| 2 | W712741 | Rear door hinge-to-body nut |
| 3 | W712741 | Rear door body-to-hinge nut (4 required) |
| 4 | 26801 LH/ 26800 RH LH/ 26800 RH | Rear door upper hinge |
| 5 | W713956 | Rear door check arm bolt |
| 6 | 27204 | Rear door check arm |
| 7 | W712741 | Rear door check arm nut (2 required) |
| 8 | 26811 LH/ 26800 RH LH/ 26800 RH | Rear door lower hinge |
| 9 | 24631 LH/ 24630 RH LH/ 24630 RH | Rear door assembly |
