Removal And Installation

WARNING: This page is about a different car, the 2015 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

If a new SCCM is being installed, connect the scan tool and upload the module configuration information from the SCCM. For additional information on configuration, refer to PMI in Module Configuration .

2.

Remove the steering column shrouds and steering wheel. Refer to Steering Column .

3.

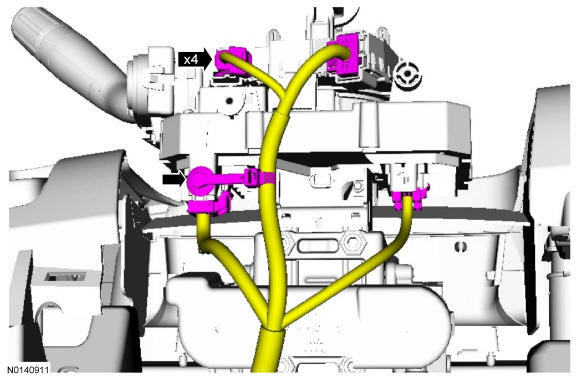

GFD91304

Courtesy of FORD MOTOR COMPANY

4.
1. 1.

  To install, tighten to 3 Nm (27 lb-in).
1. 2.

  -

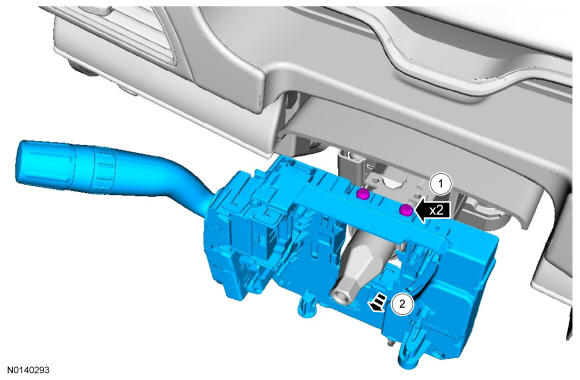

GFD91305

Courtesy of FORD MOTOR COMPANY

5.

To install, reverse the removal procedure.
- If a new SCCM was installed, it must be configured (using vehicle as-built data or module configuration information retrieved earlier in this procedure). For additional information on configuration, refer to PMI in Module Configuration .
