CKP Sensor
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The SC belt must be removed to perform this procedure. For additional information, refer to
ACCESSORY DRIVE
.
NOTE:
The A/C compressor must be positioned aside to access the CKP sensor, it is not necessary to remove the A/C compressor from the vehicle.
NOTE:
After installing the CKP sensor, use the scan tool to perform the Misfire Monitor Neutral Profile Correction procedure, following the on-screen instructions.

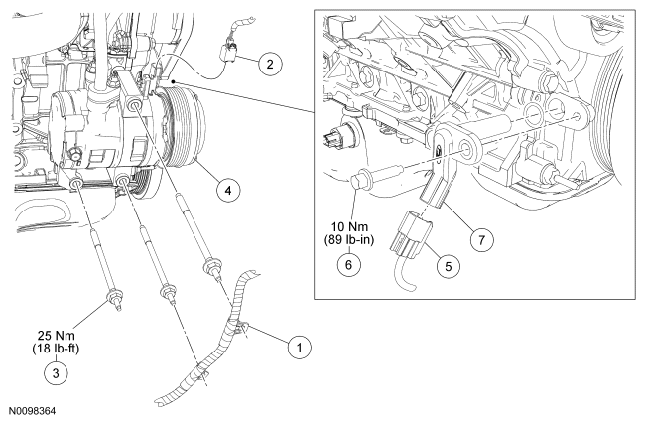

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Wiring harness retainer (part of 12B637) |
| 2 | - | A/C compressor electrical connector |
| 3 | W707821 | A/C compressor stud bolt (3 required) |
| 4 | 190629 | A/C compressor |
| 5 | - | Crankshaft Position (CKP) sensor electrical connector |
| 6 | N806155 | CKP sensor bolt |
| 7 | 6C315 | CKP sensor |
