Center Registers: Removal
WARNING: This page is about a different car, the 2017 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
- 1.

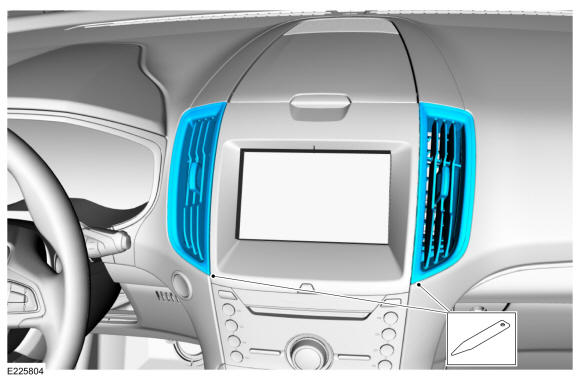

Remove the center registers.Use the General Equipment: Interior Trim Remover
 Courtesy of FORD MOTOR COMPANY
|
- 2.

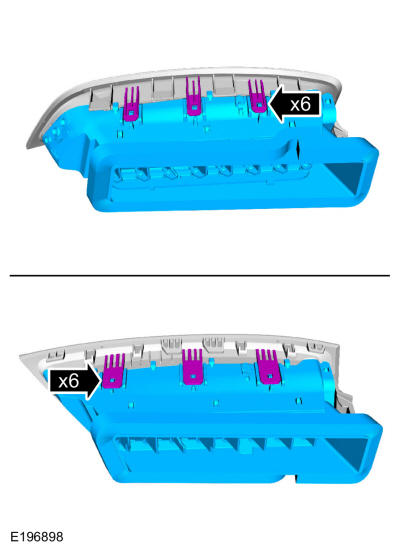

Release the clips and remove the center register assemblies.
 Courtesy of FORD MOTOR COMPANY
|
