Rear Bumper: Disassembly

All vehicles

1. 1.

   Remove the rear bumper. Refer to: Rear Bumper .

1. 2.


   NOTE: The number and location of electrical connectors and retainers will vary depending on option content.

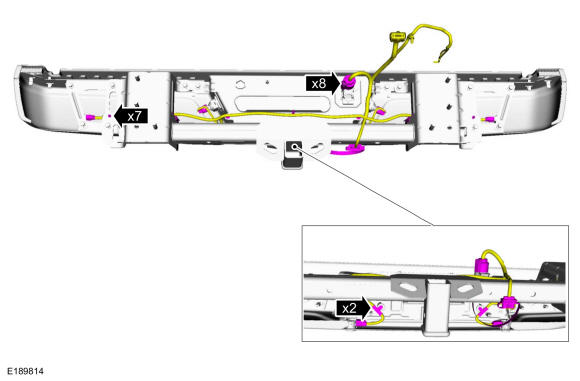

   Remove the rear bumper wiring harness.

   1. 1.

      Disconnect the rear bumper wiring harness electrical connectors.

   1. 2.

      Separate the rear bumper wiring harness retainers.

Courtesy of FORD MOTOR COMPANY

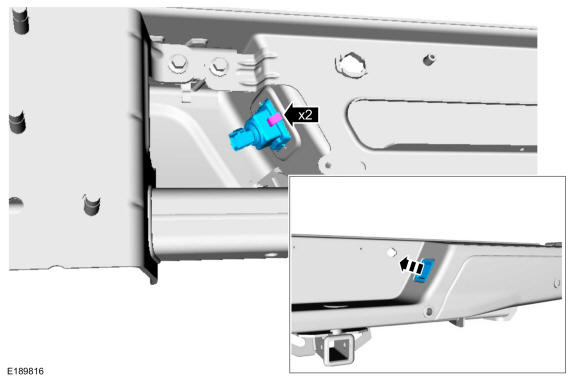

1. 3.


   NOTE: On both sides.

   Release the tabs and remove the license plate lamp.

Courtesy of FORD MOTOR COMPANY

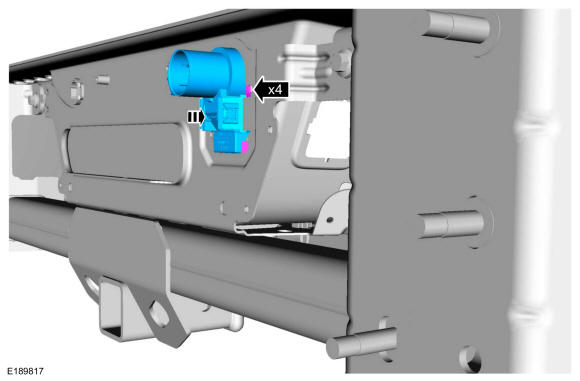

1. 4.

   Release the tabs and remove the trailer brake electrical connector.

Courtesy of FORD MOTOR COMPANY

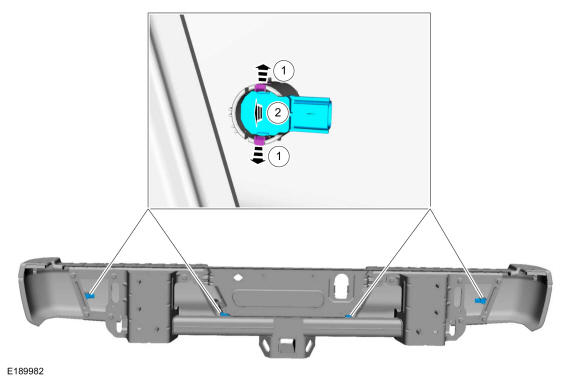

1. 5.

   If equipped, remove the rear parking aid sensors.

   1. 1.

      Release the tabs.

   1. 2.

      Slide the rear parking aid sensors out of the bezels.

Courtesy of FORD MOTOR COMPANY

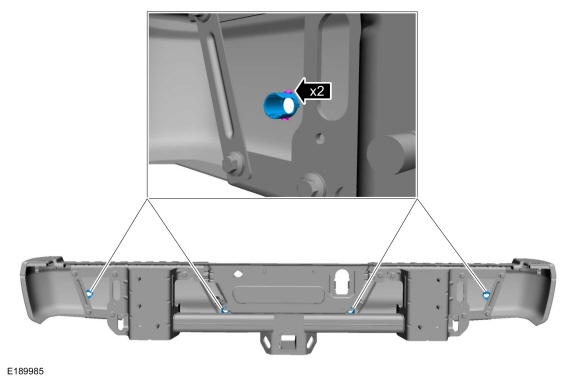

1. 6.

   If equipped, release the tabs and remove the rear parking aid sensor bezels.

Courtesy of FORD MOTOR COMPANY

1. 7.

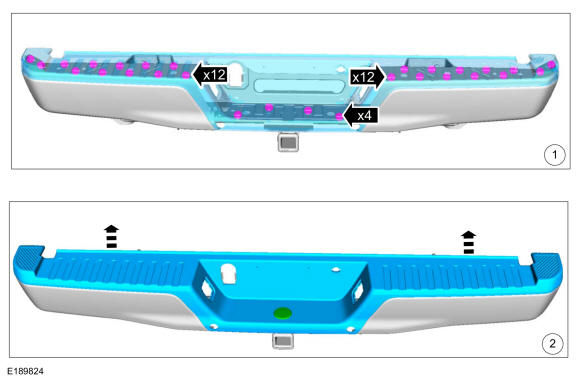

   Remove the rear bumper step plate.

   1. 1.

      If equipped, remove the trailer ball access cover.

   1. 2.

      Release the tabs.

Courtesy of FORD MOTOR COMPANY

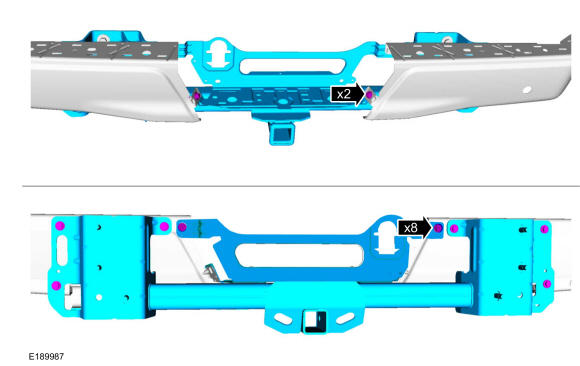

Vehicles with trailer tow package

1. 8.

   Remove the bolts and the rear bumper bar.

   Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

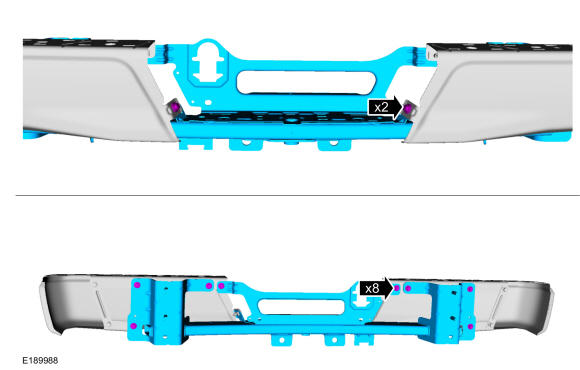

Vehicles without trailer tow package

1. 9.

   Remove the bolts and the rear bumper bar.

   Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

All vehicles

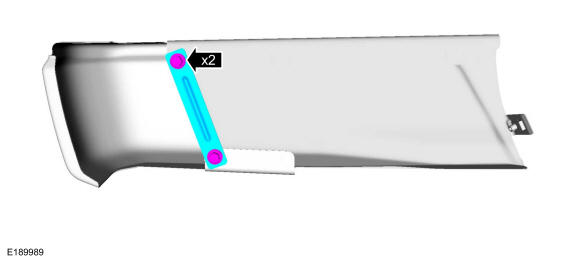

1. 10.

   Remove the bolts and the outer bumper brace.

   Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
