Intake Manifold Runner Control (IMRC) Position Sensor: Removal
WARNING: This page is about a different car, the 2016 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- 1.
Remove the intake manifold. Refer to: Intake Manifold .
- 2.

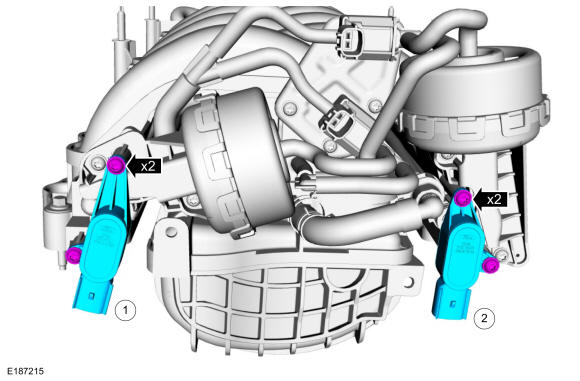

- Remove the retainers and the LH IMRC position sensor.
Torque: 53 lb.in (6 Nm)
- Remove the retainers and the RH IMRC position sensor.
Torque: 53 lb.in (6 Nm)
- Remove the retainers and the LH IMRC position sensor.
