Transmission Controls

WARNING: This page is about a different car, the 2016 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

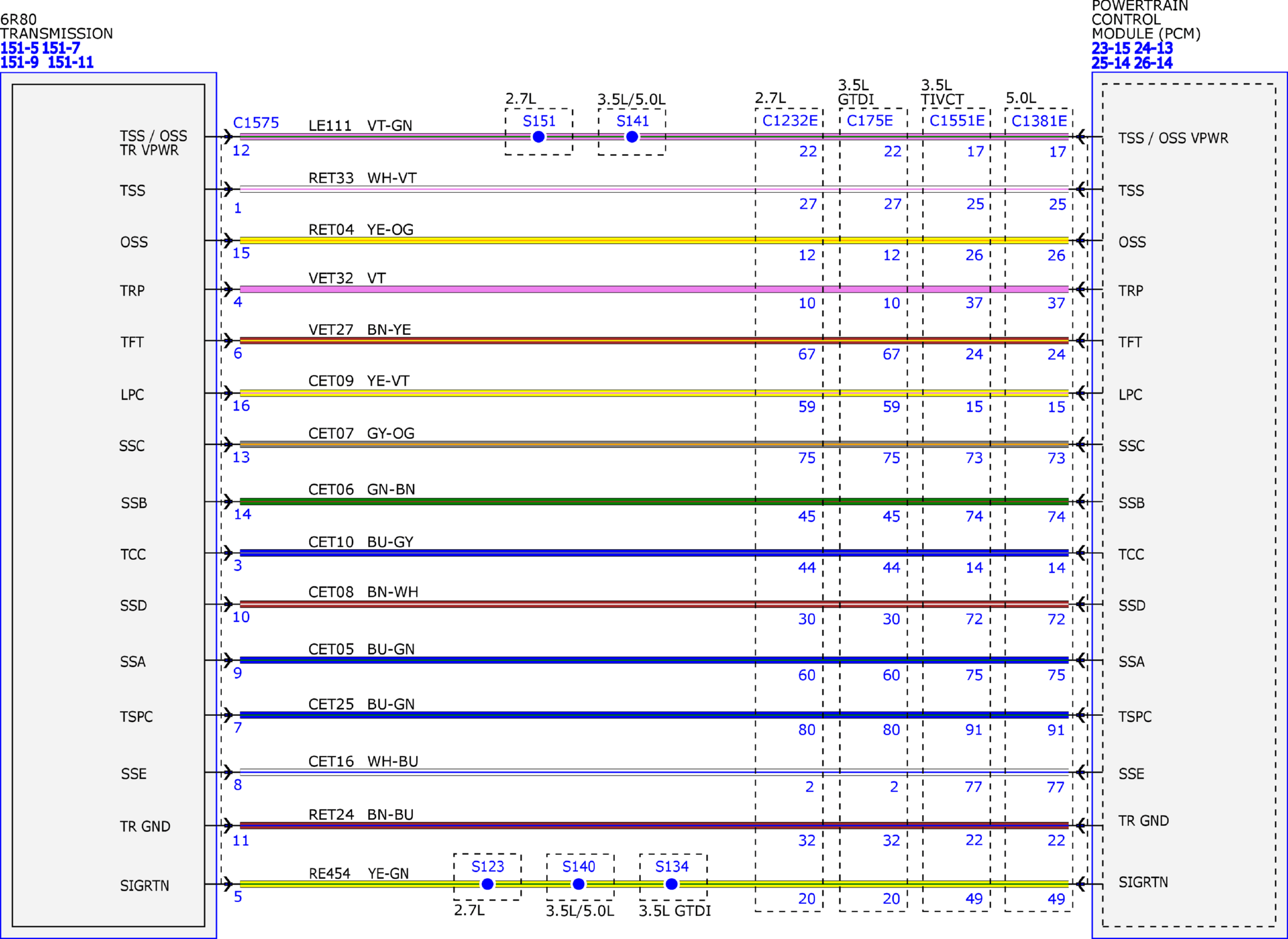

Fig 1: Transmission Controls Wiring Diagram (1 of 3)

Courtesy of FORD MOTOR COMPANY

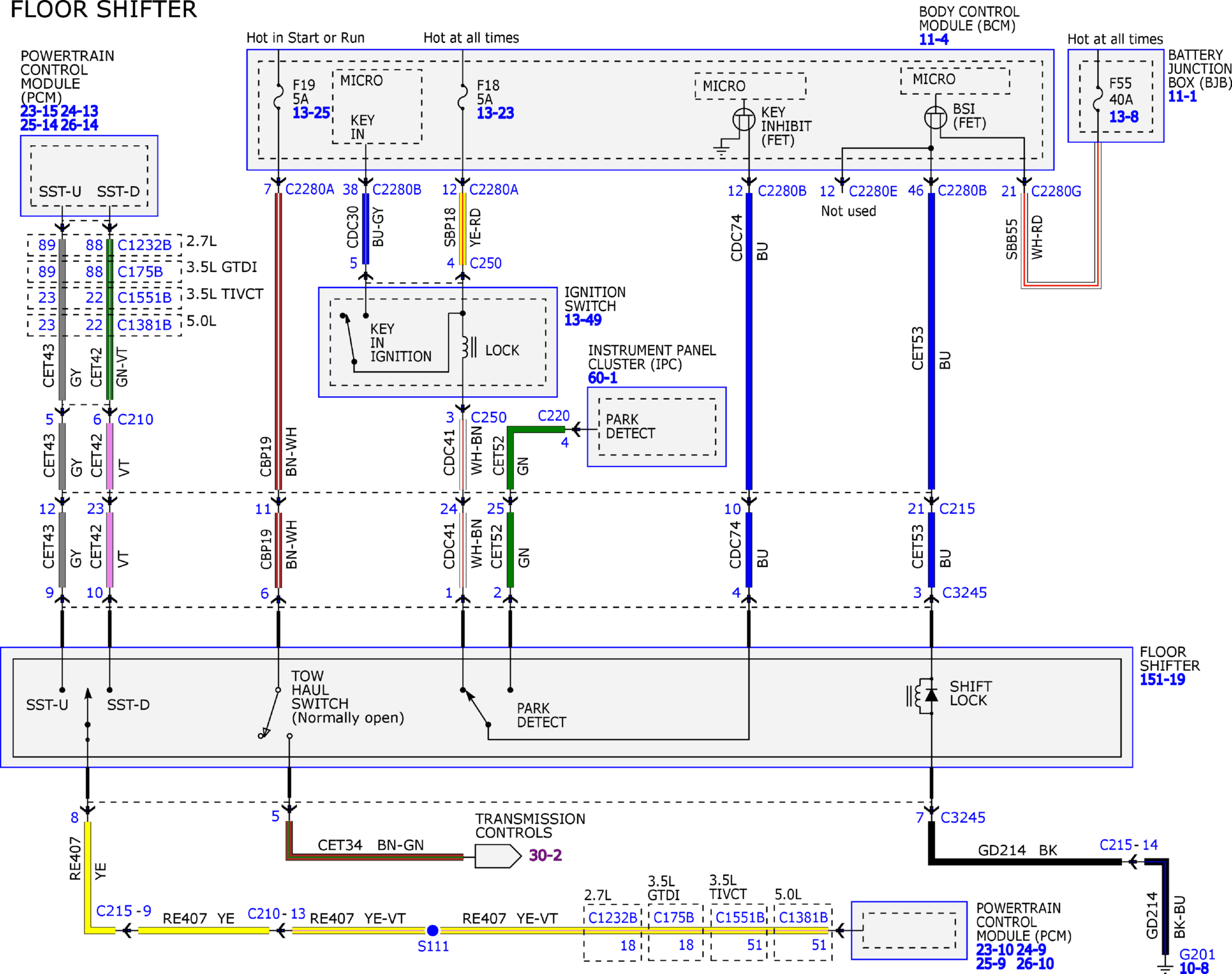

Fig 2: Transmission Controls Wiring Diagram (2 of 3)

Courtesy of FORD MOTOR COMPANY

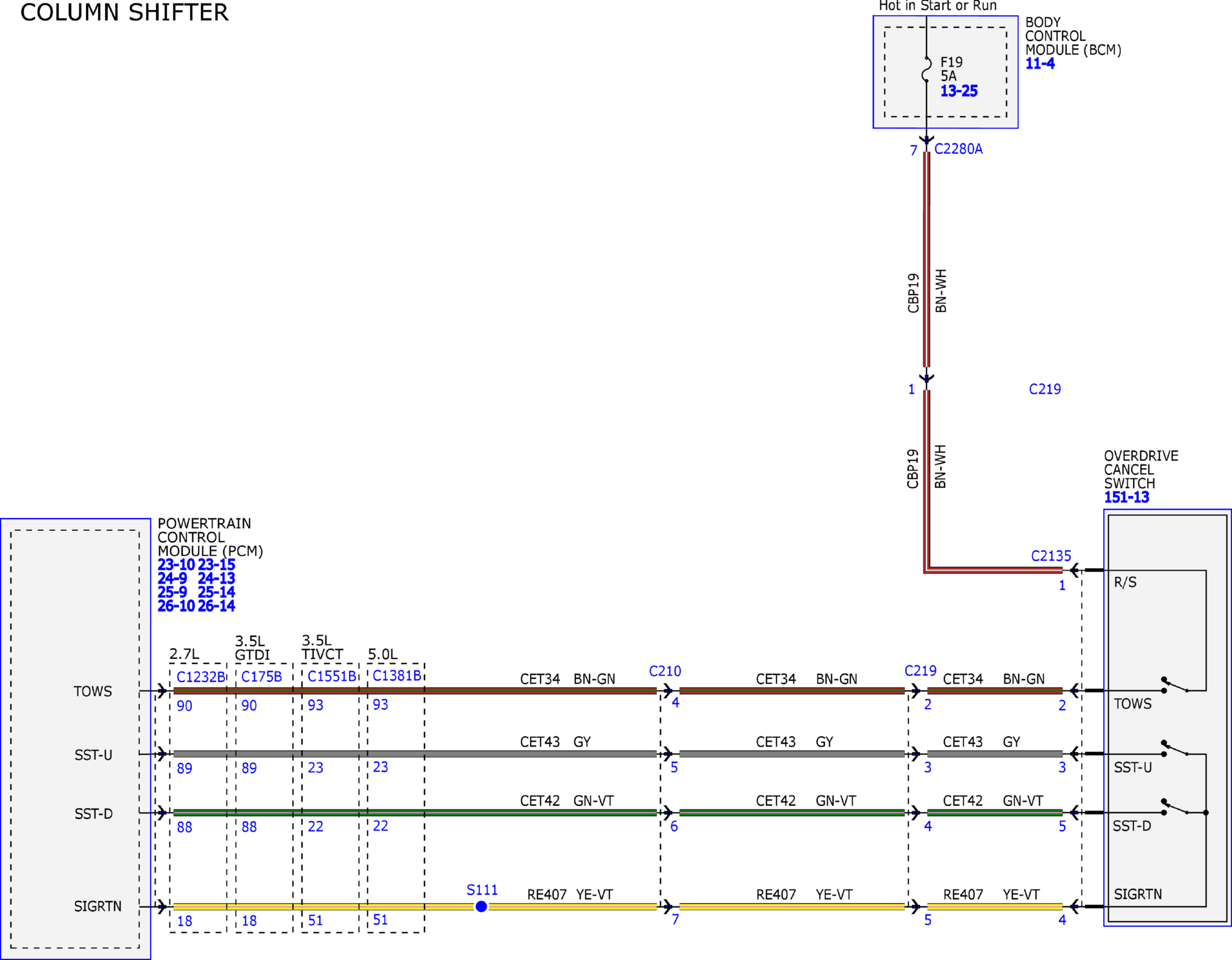

Fig 3: Transmission Controls Wiring Diagram (3 of 3)

Courtesy of FORD MOTOR COMPANY
