Section 1034 (OEM Wiring Diagrams)
>>
Power Distribution/BCM
Power Distribution/BCM
WARNING:
This page is about a different car, the 2016 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

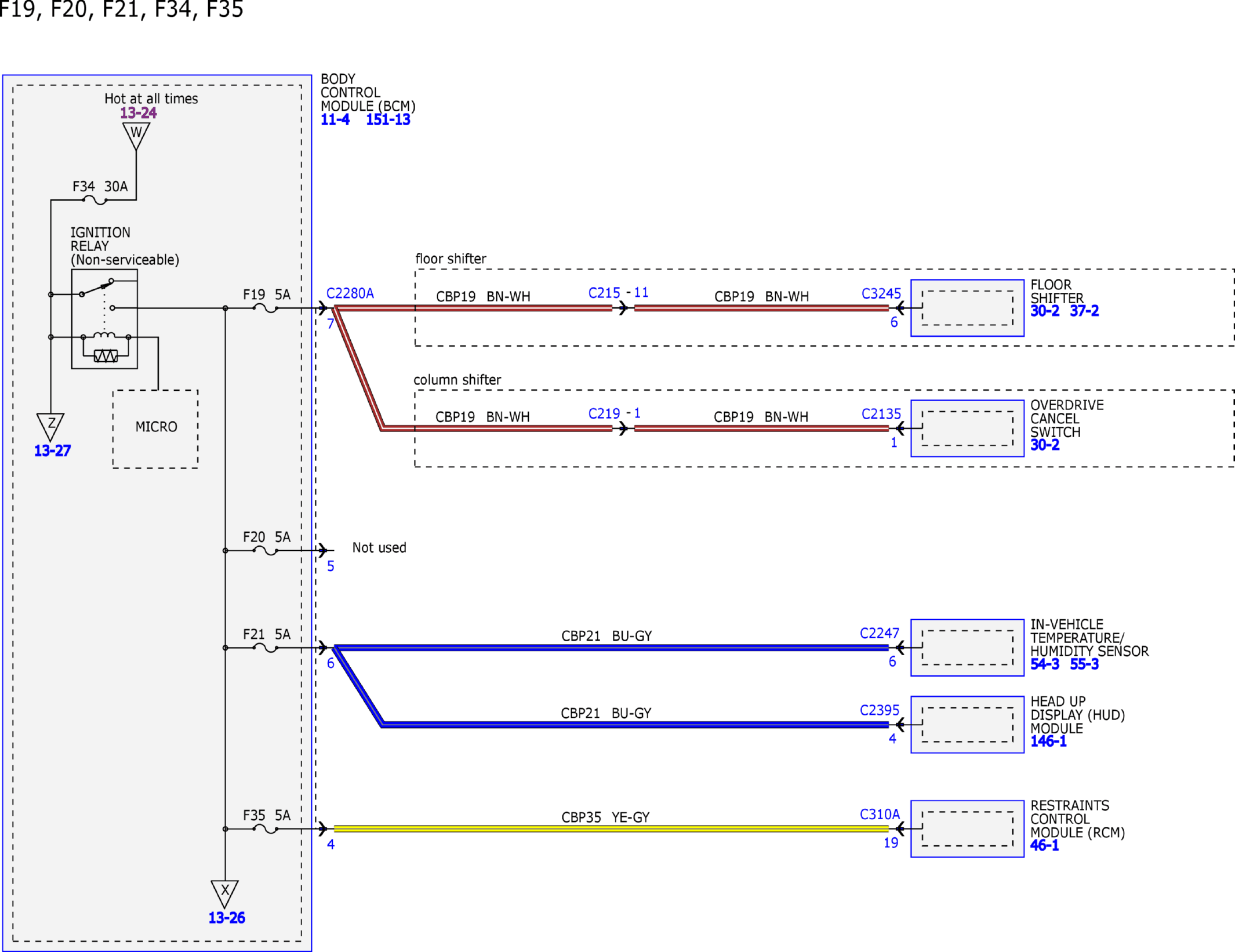

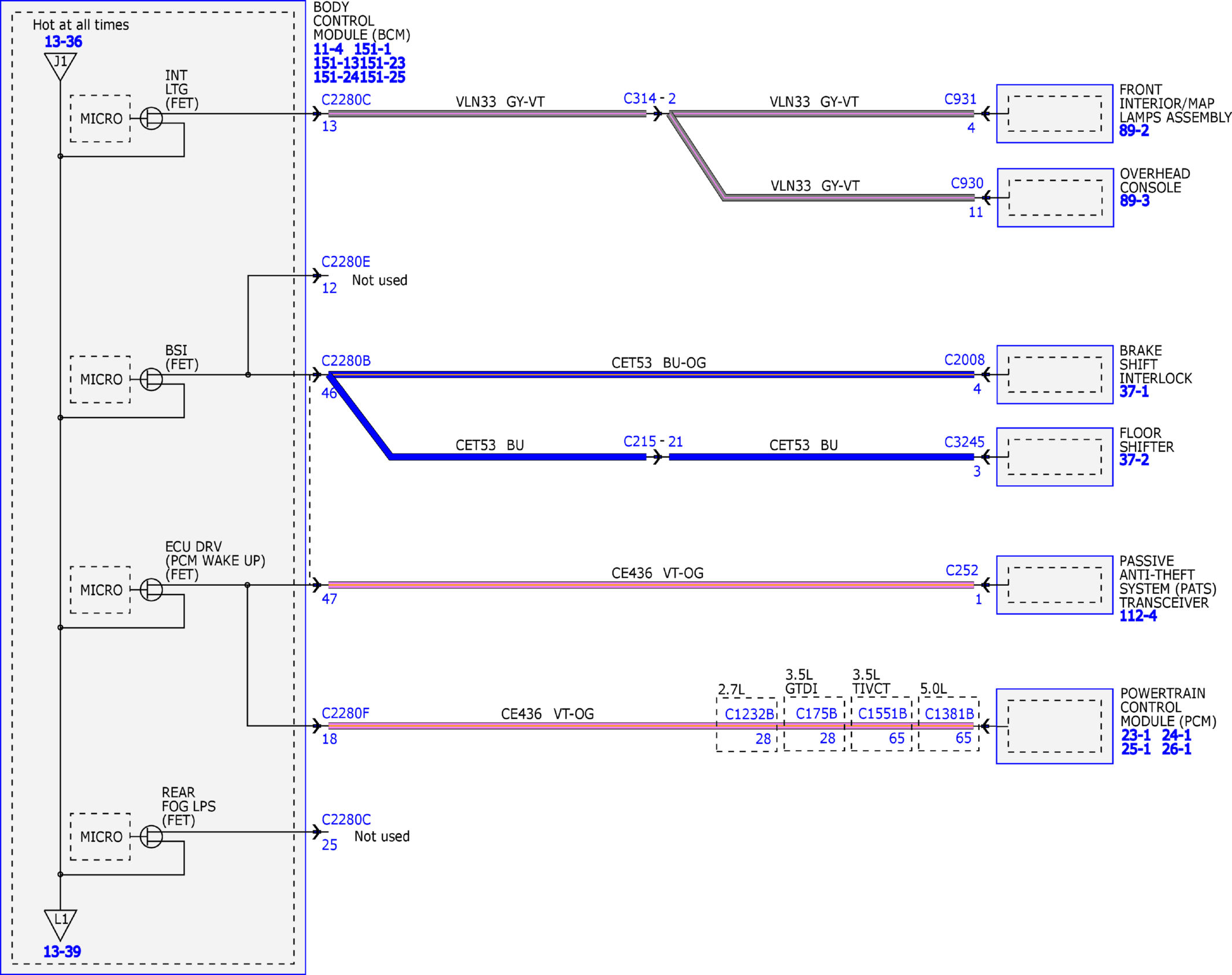

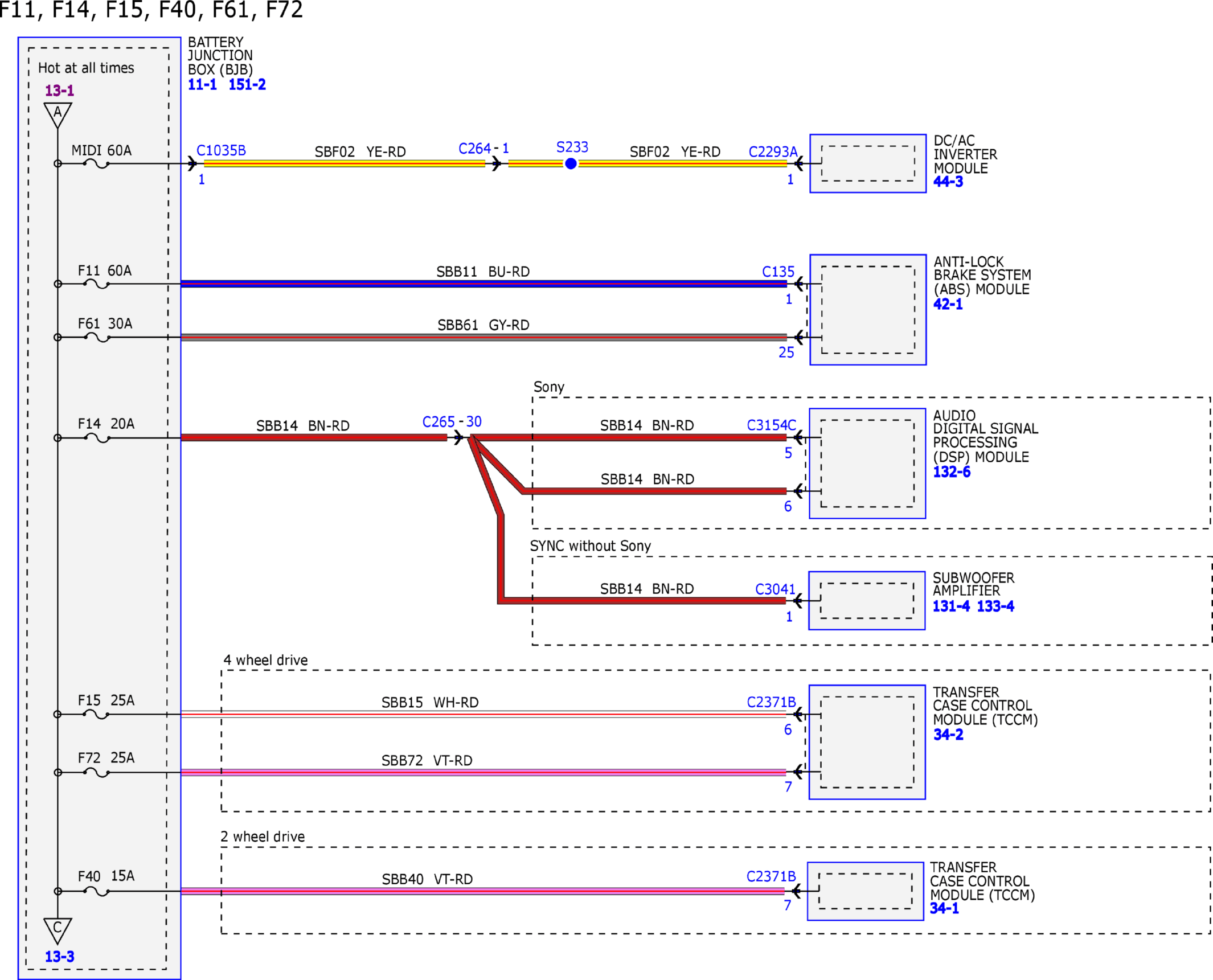

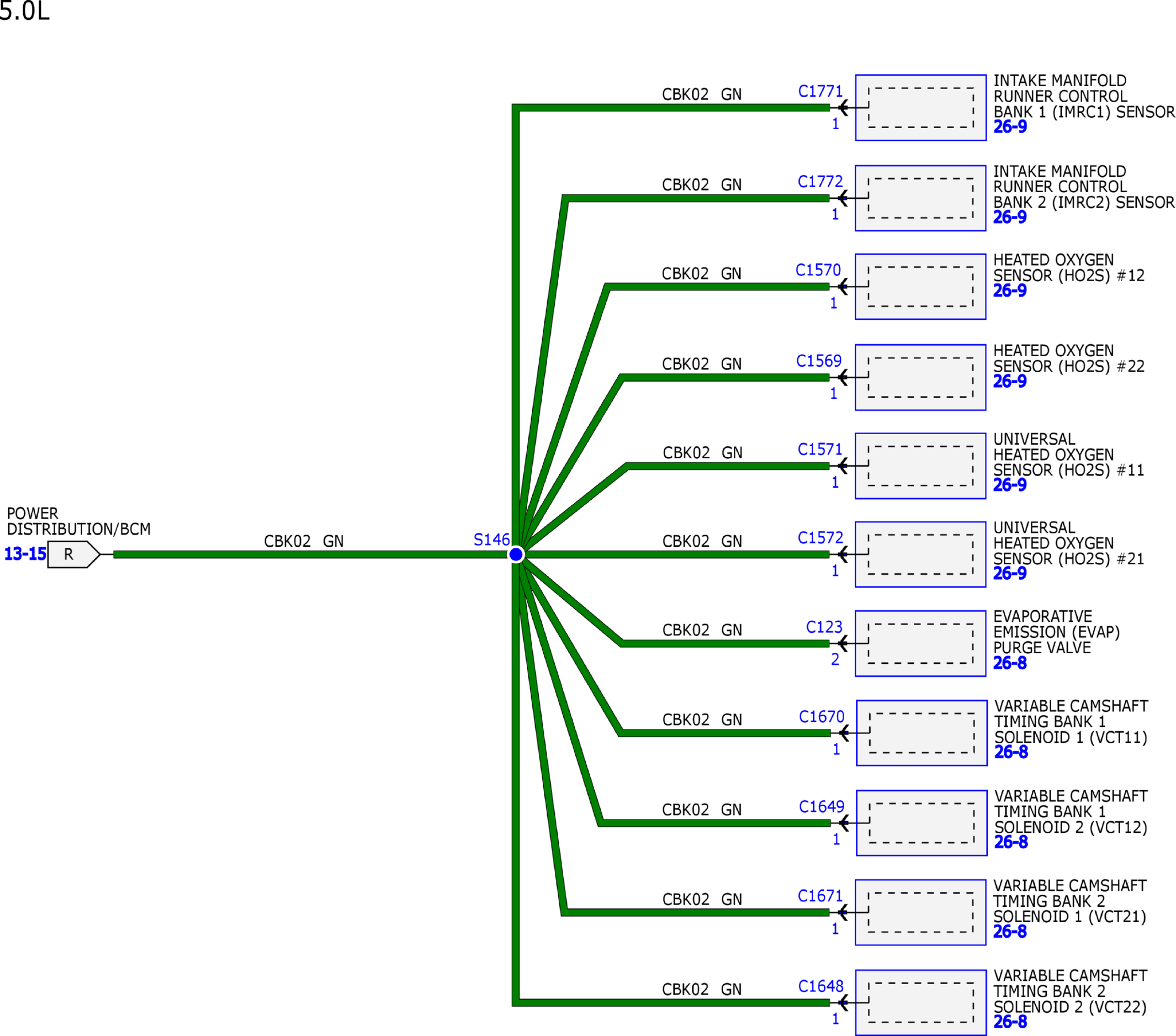

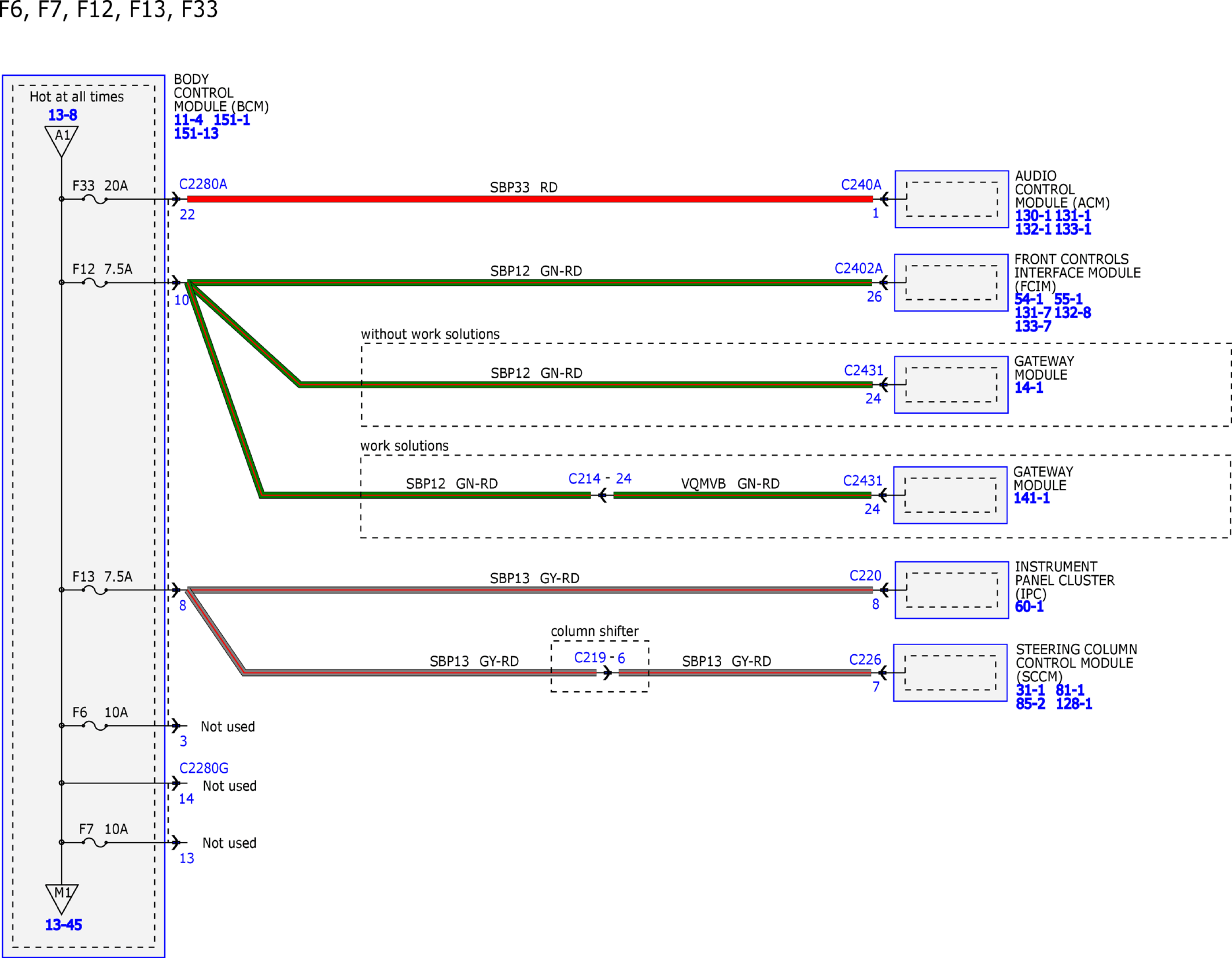

Fig 1: Power Distribution/BCM Wiring Diagram (1 of 56)
Courtesy of FORD MOTOR COMPANY

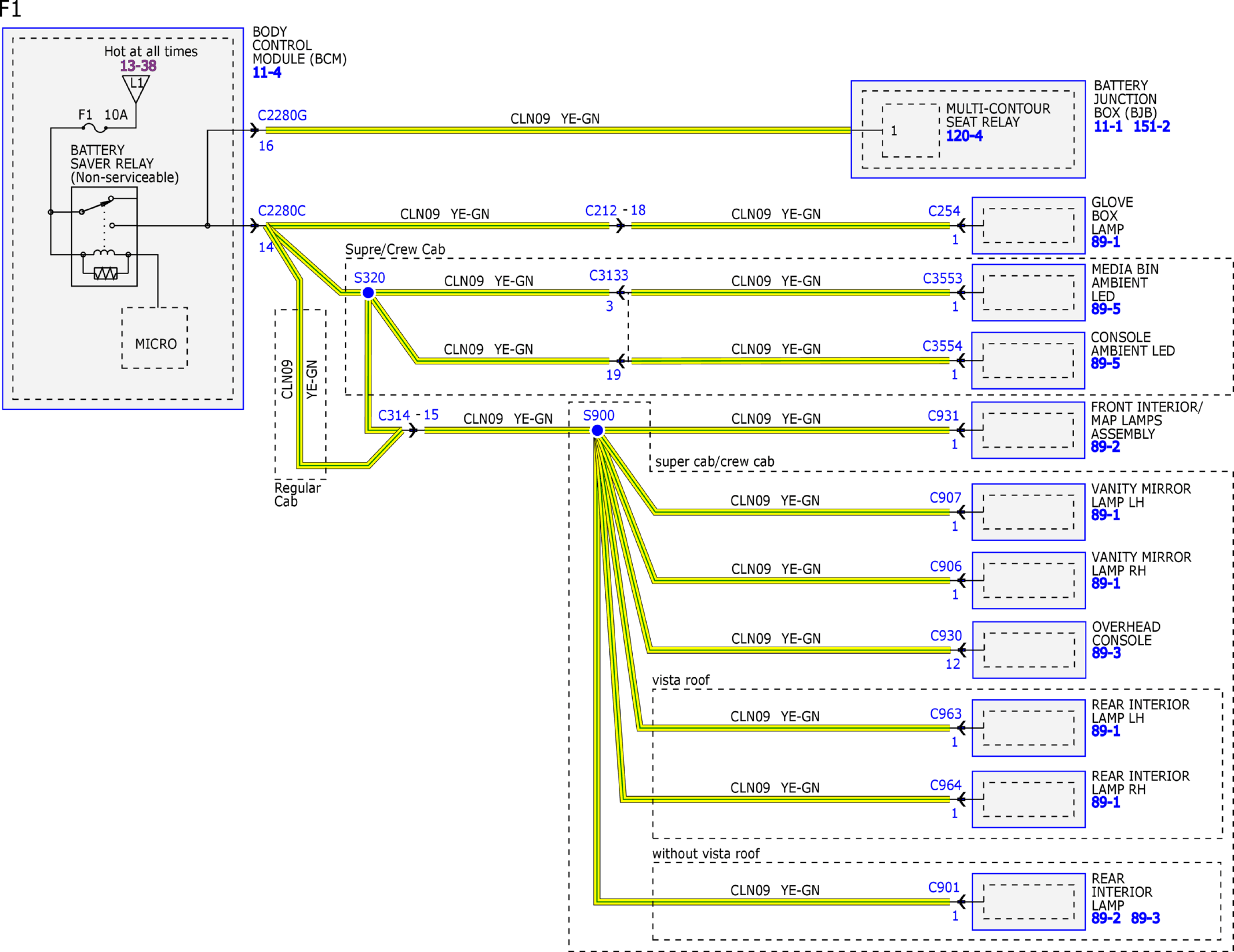

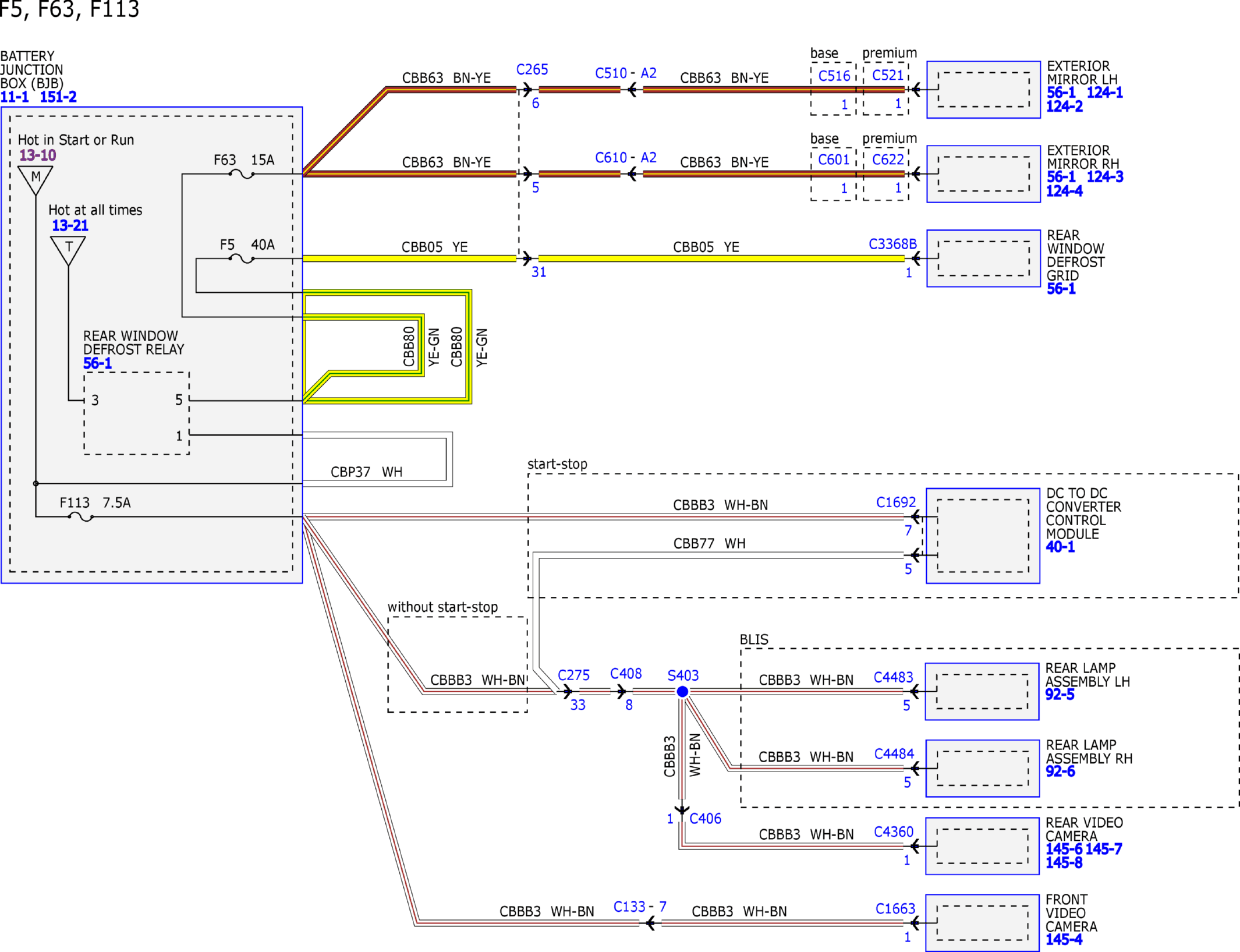

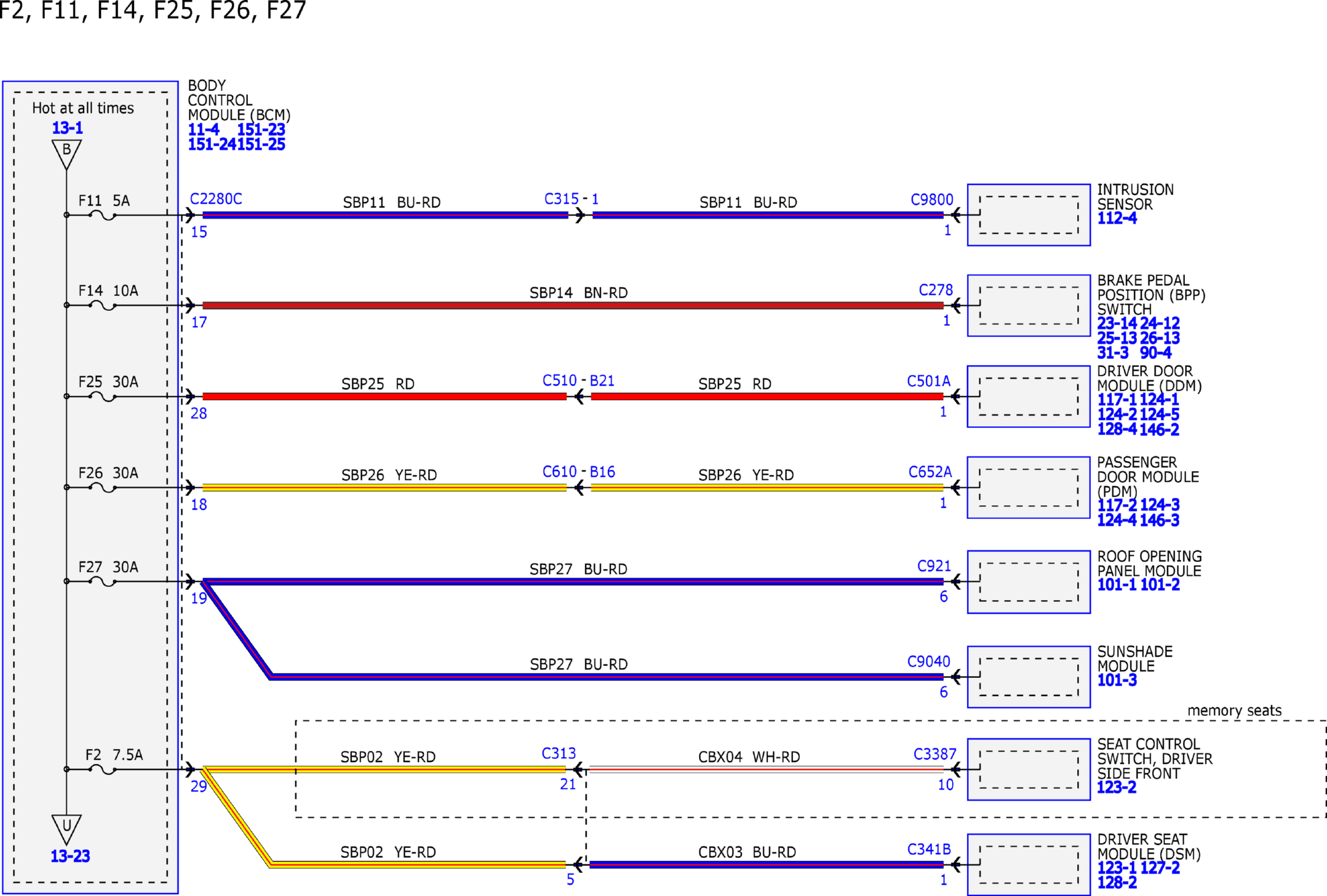

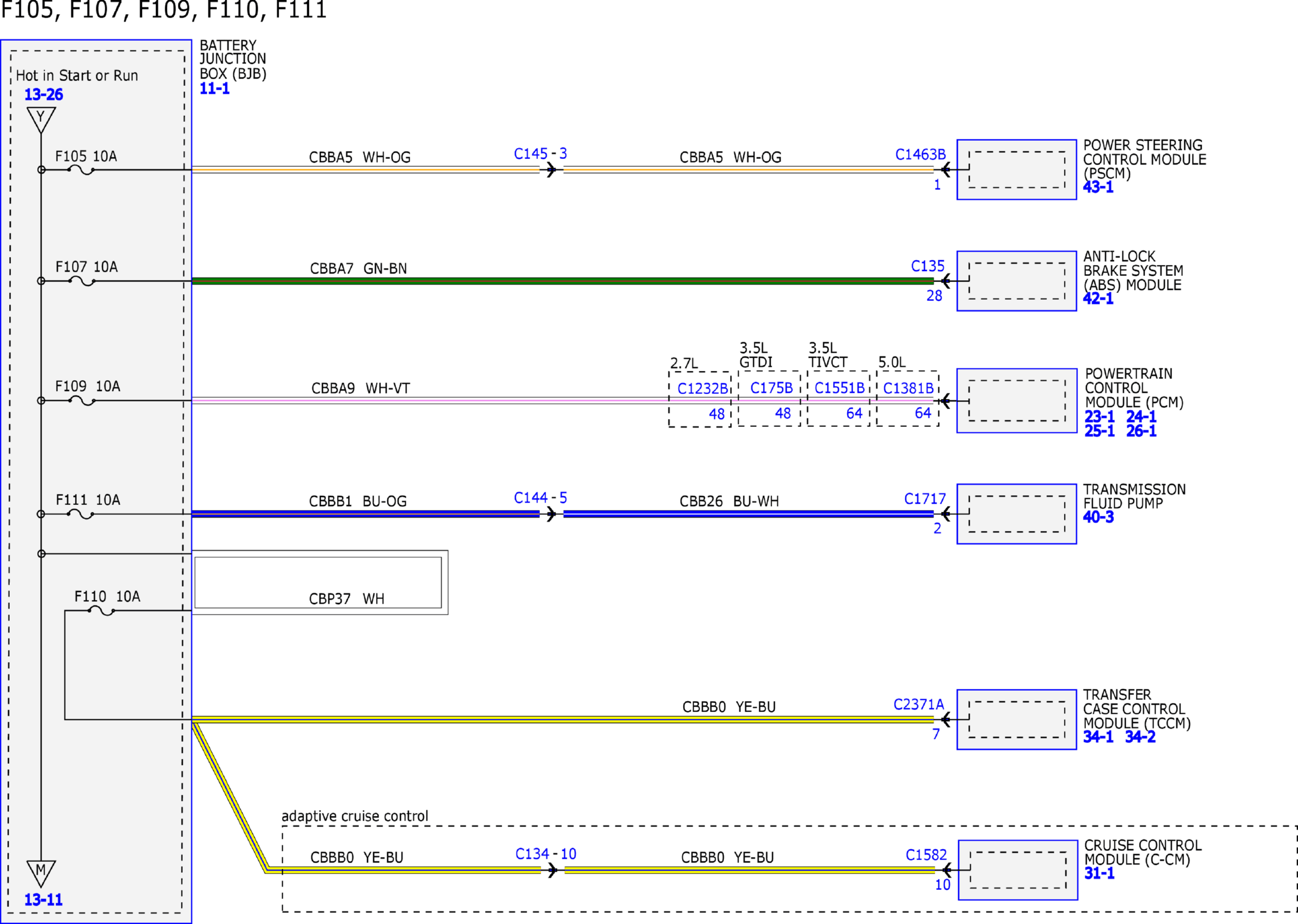

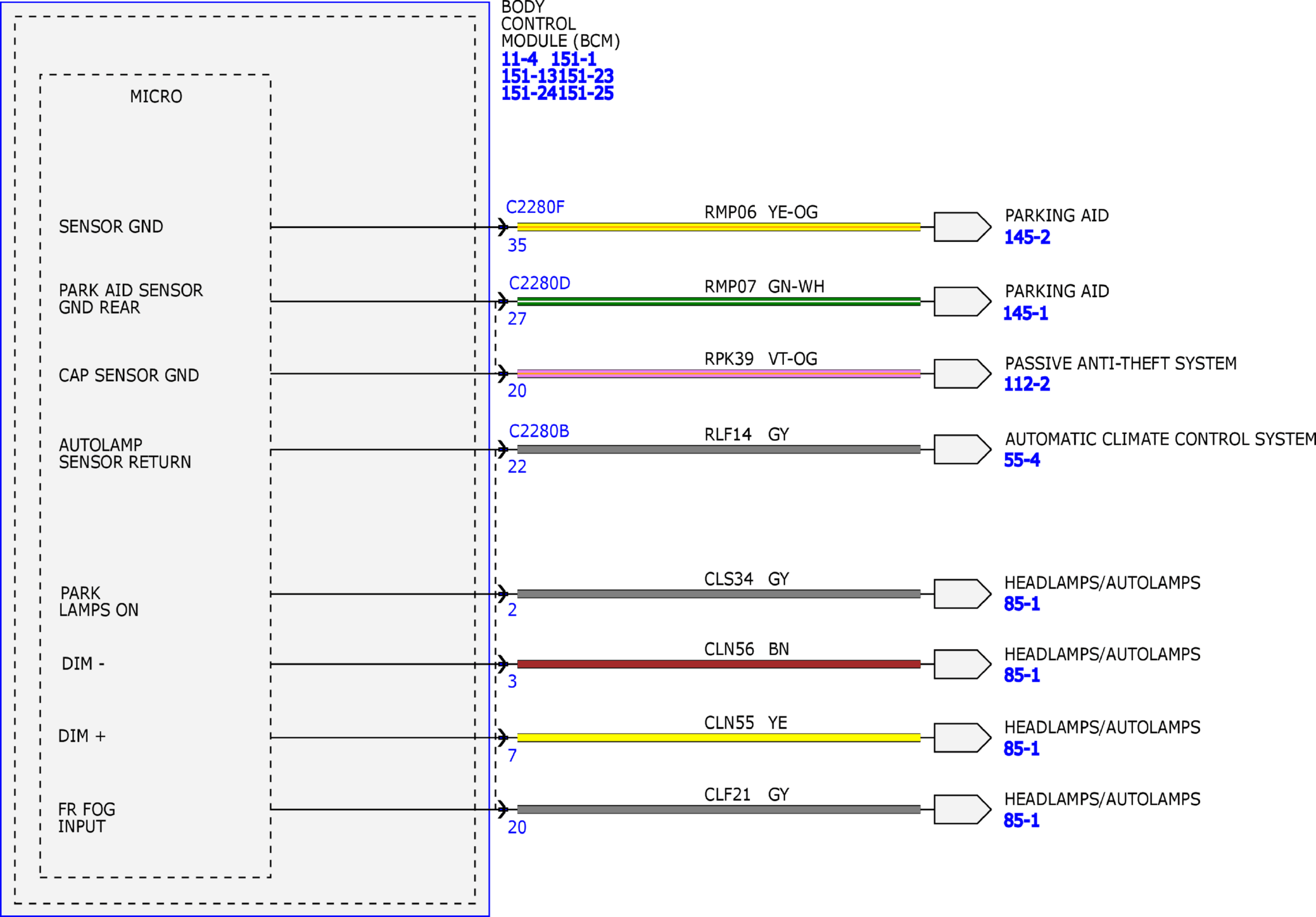

Fig 2: Power Distribution/BCM Wiring Diagram (2 of 56)
Courtesy of FORD MOTOR COMPANY

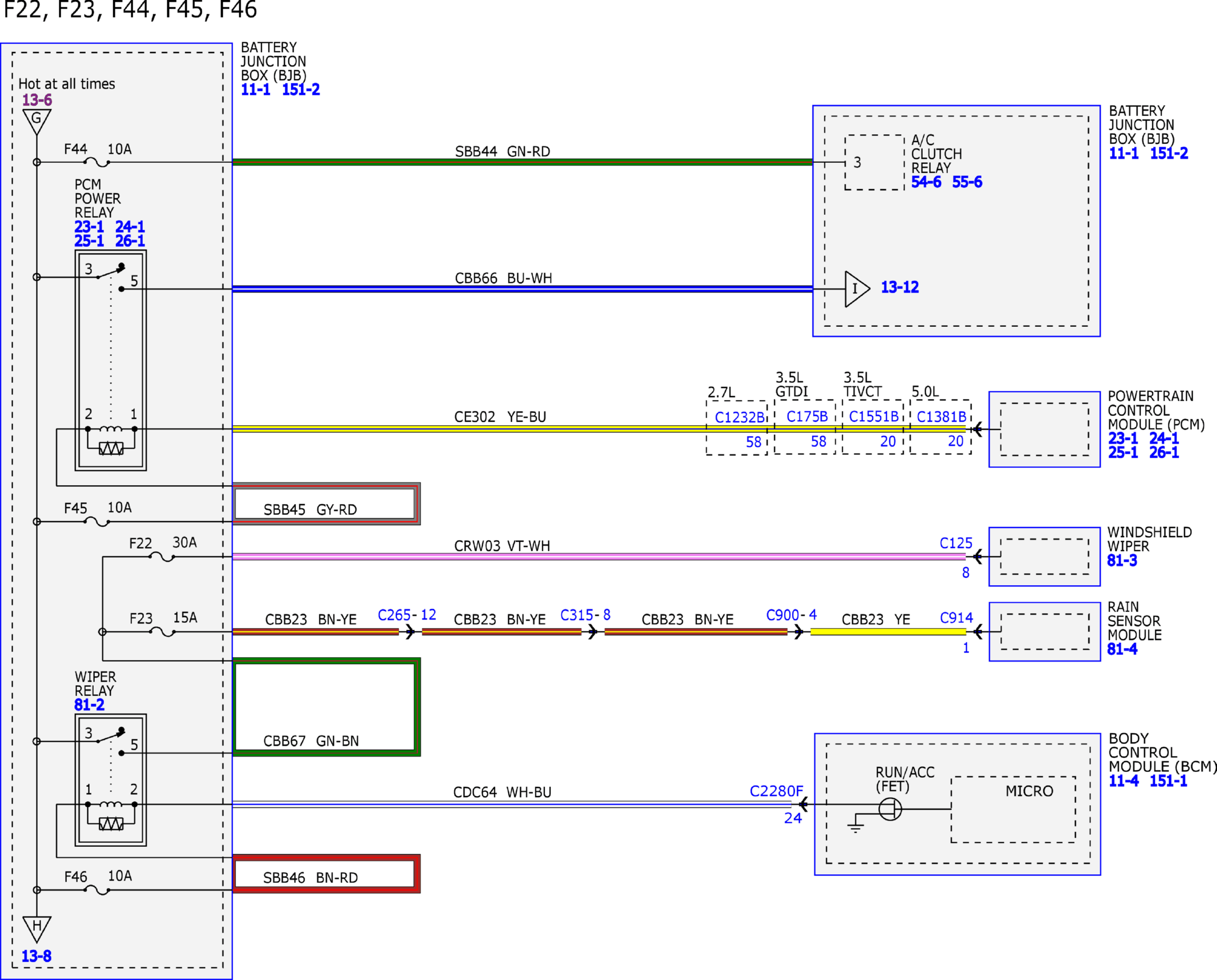

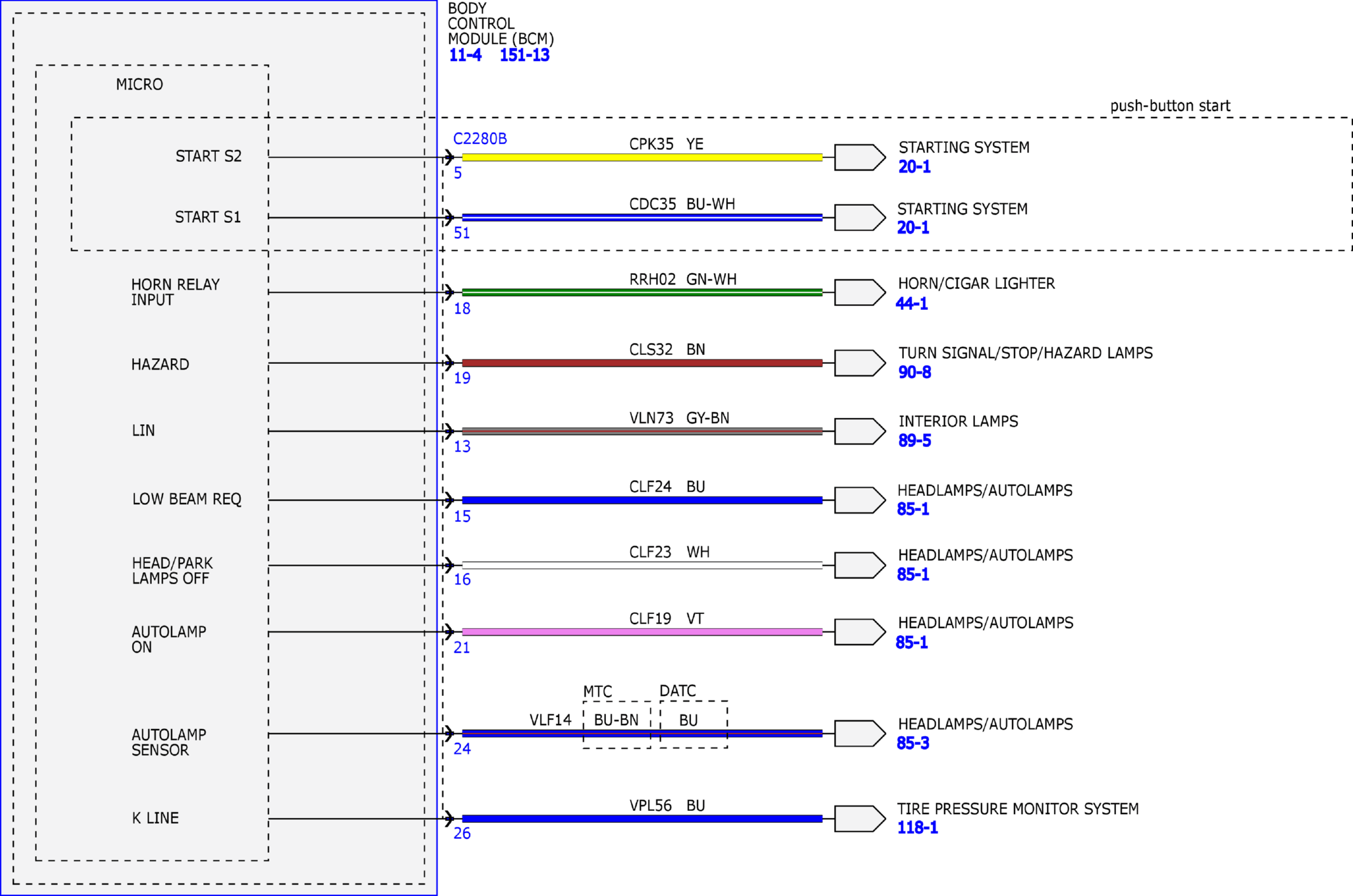

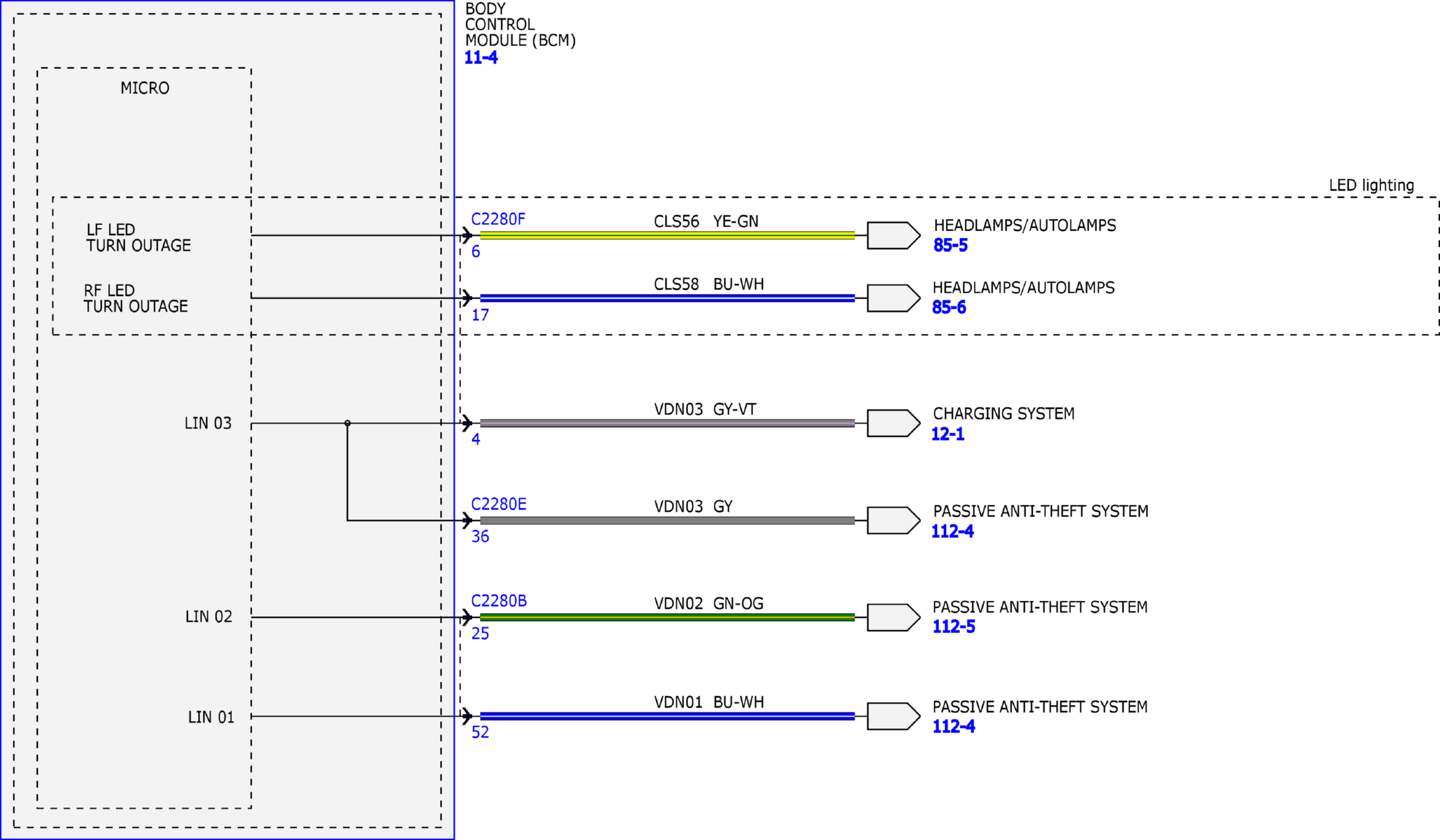

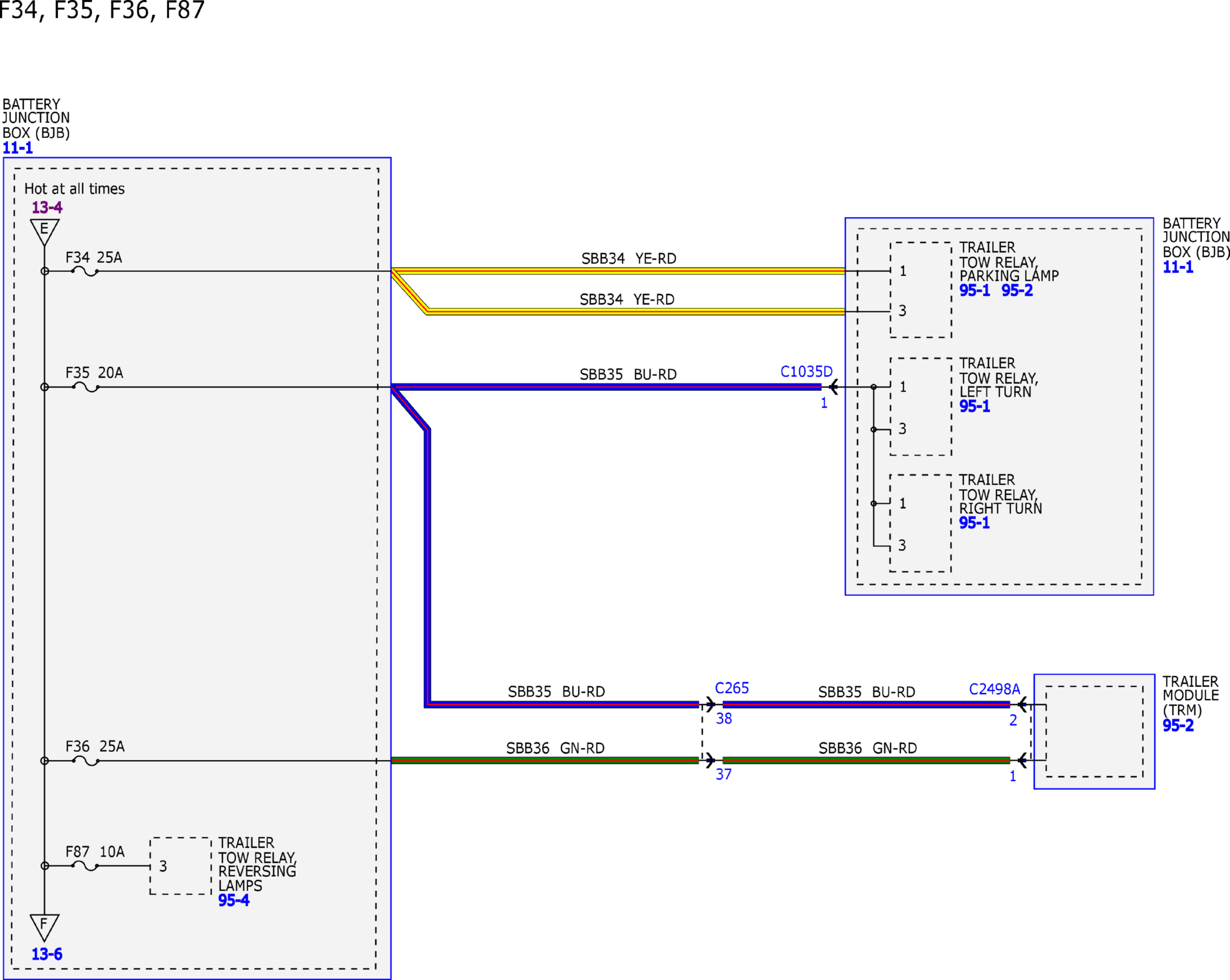

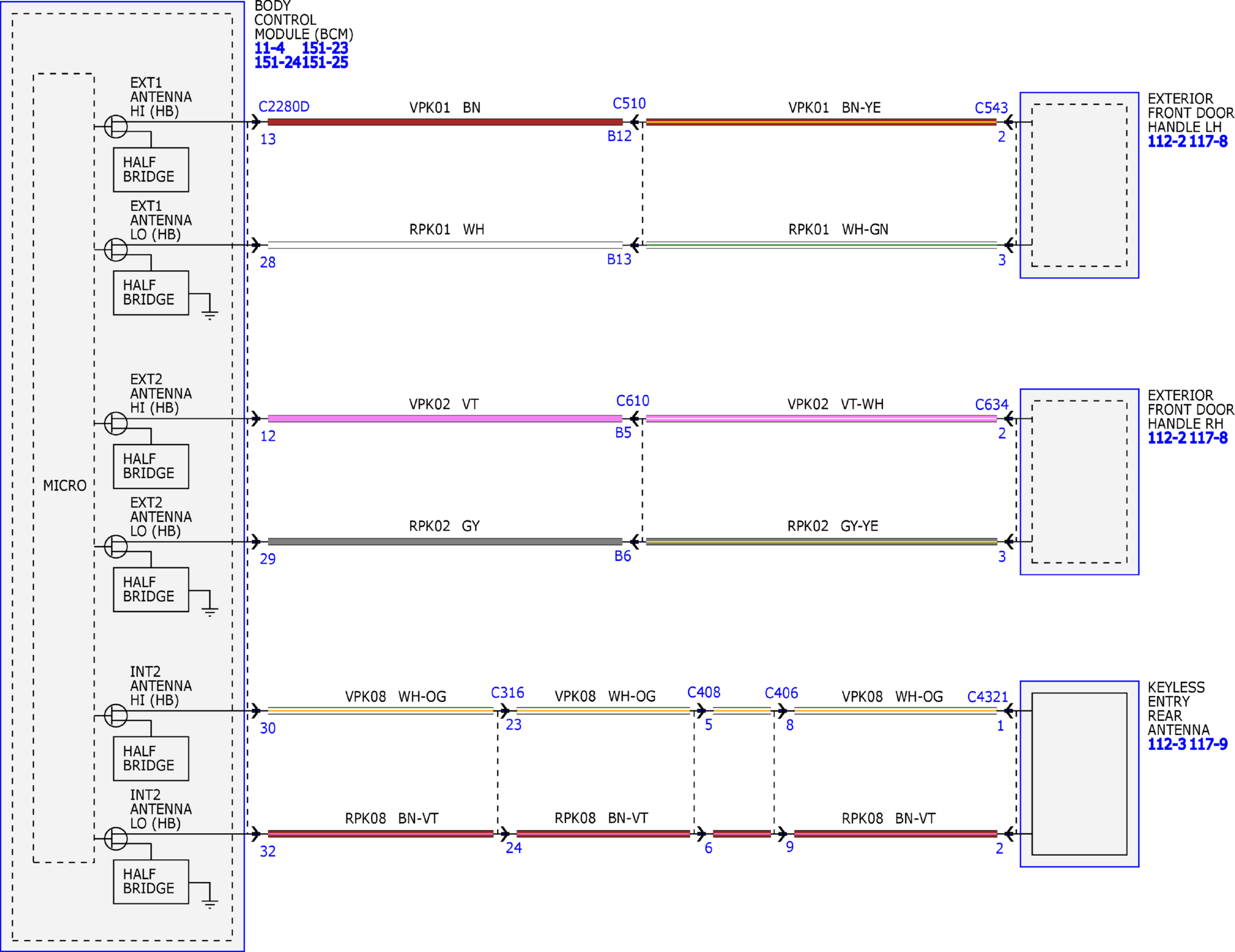

Fig 3: Power Distribution/BCM Wiring Diagram (3 of 56)
Courtesy of FORD MOTOR COMPANY

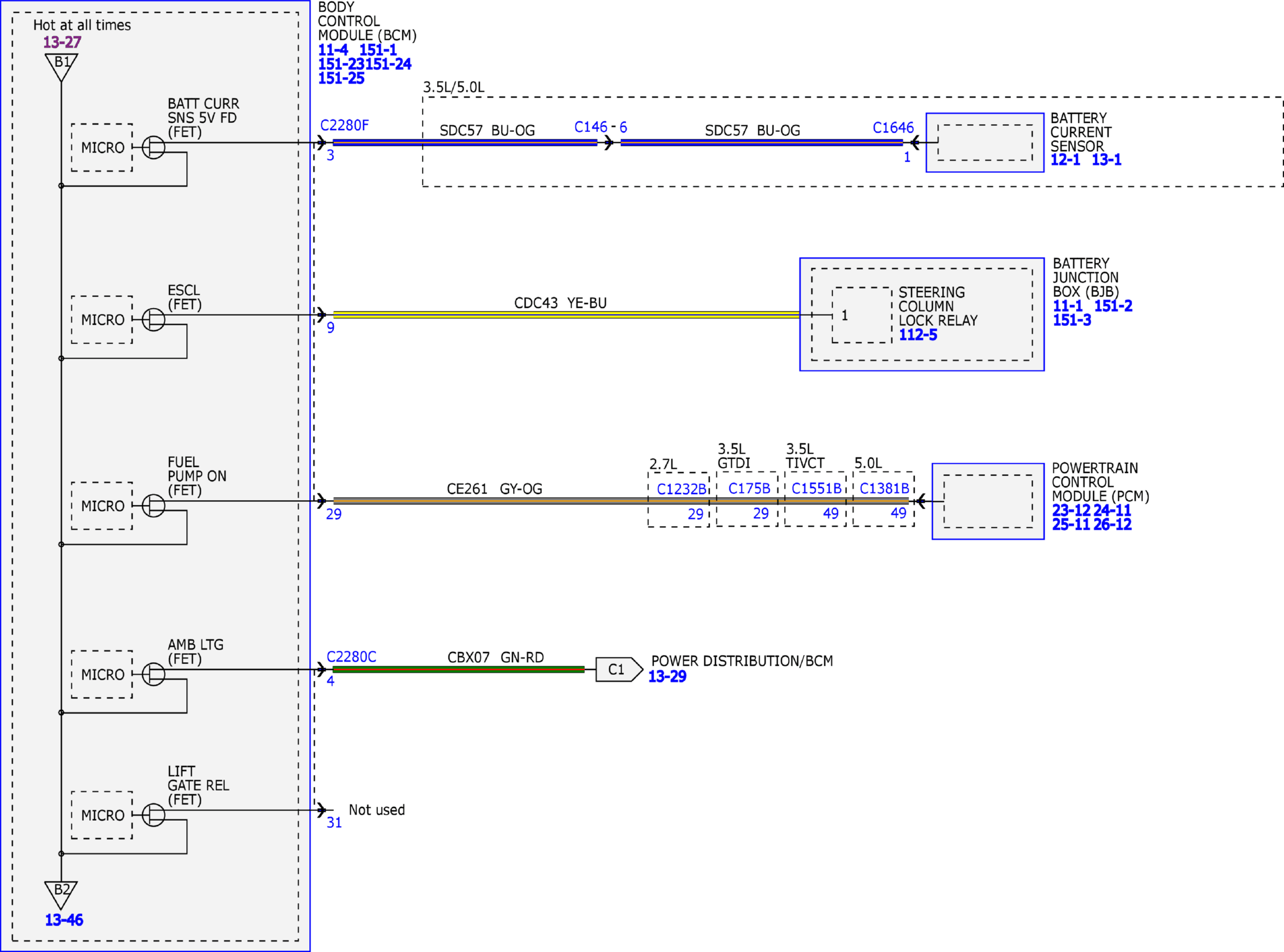

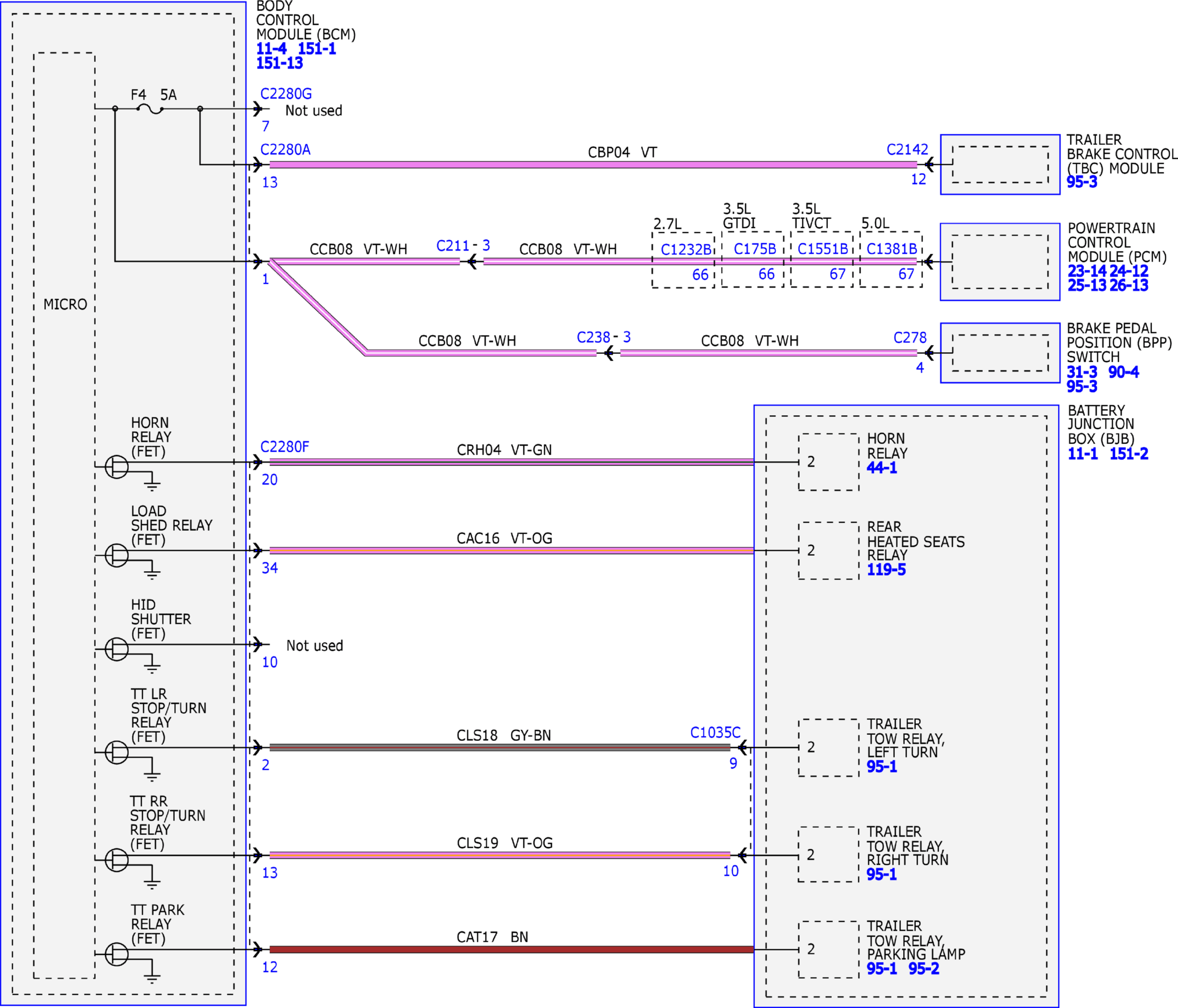

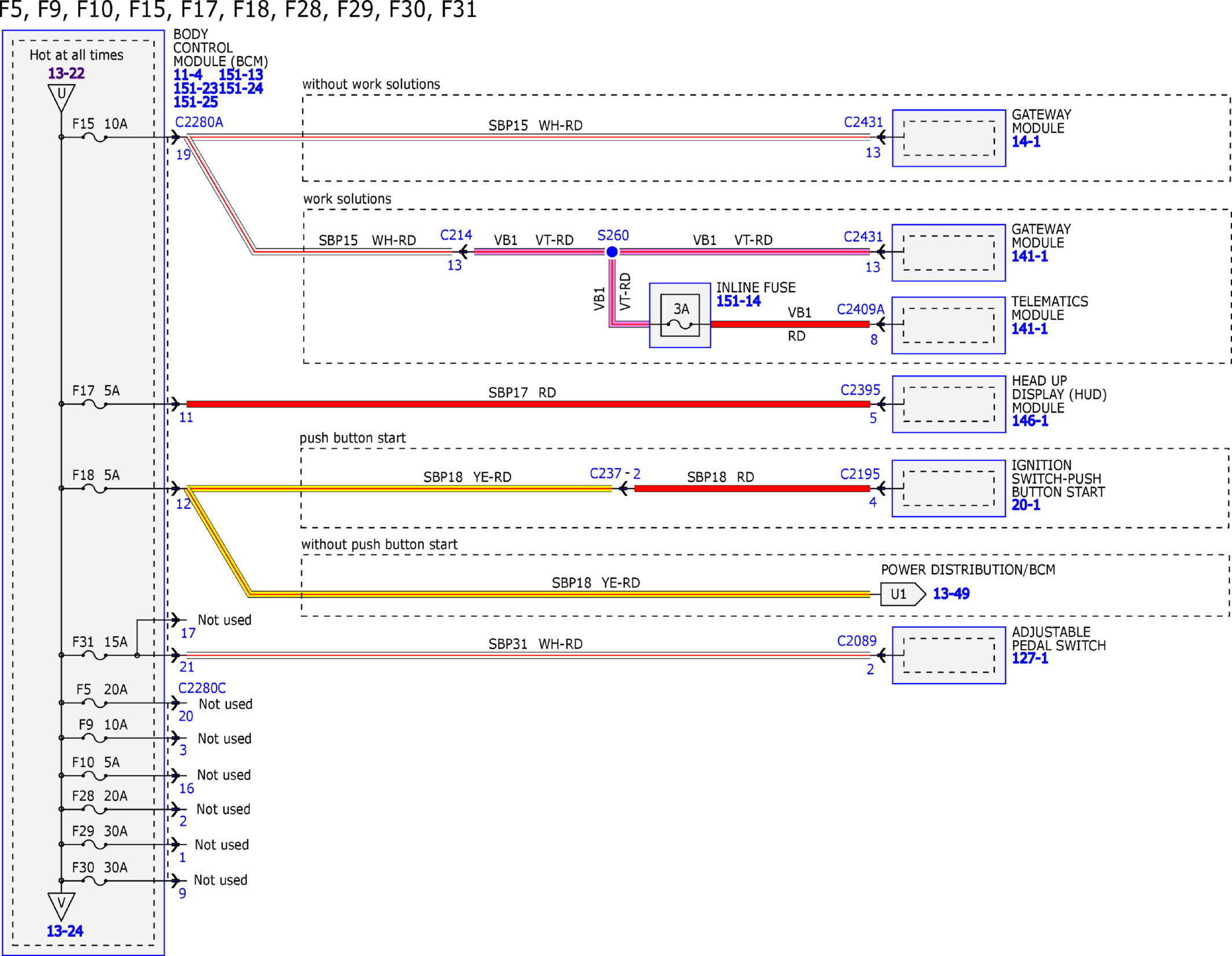

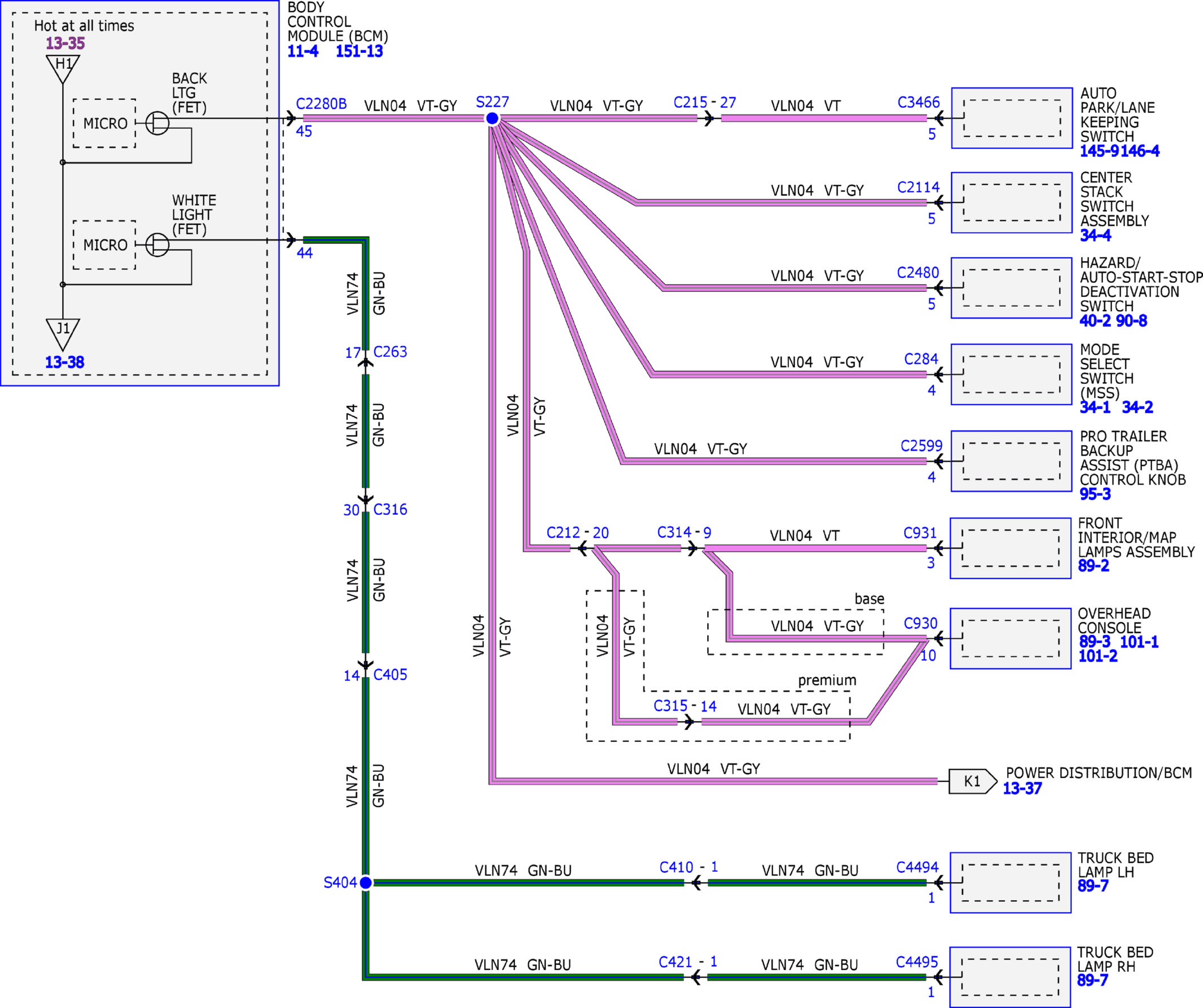

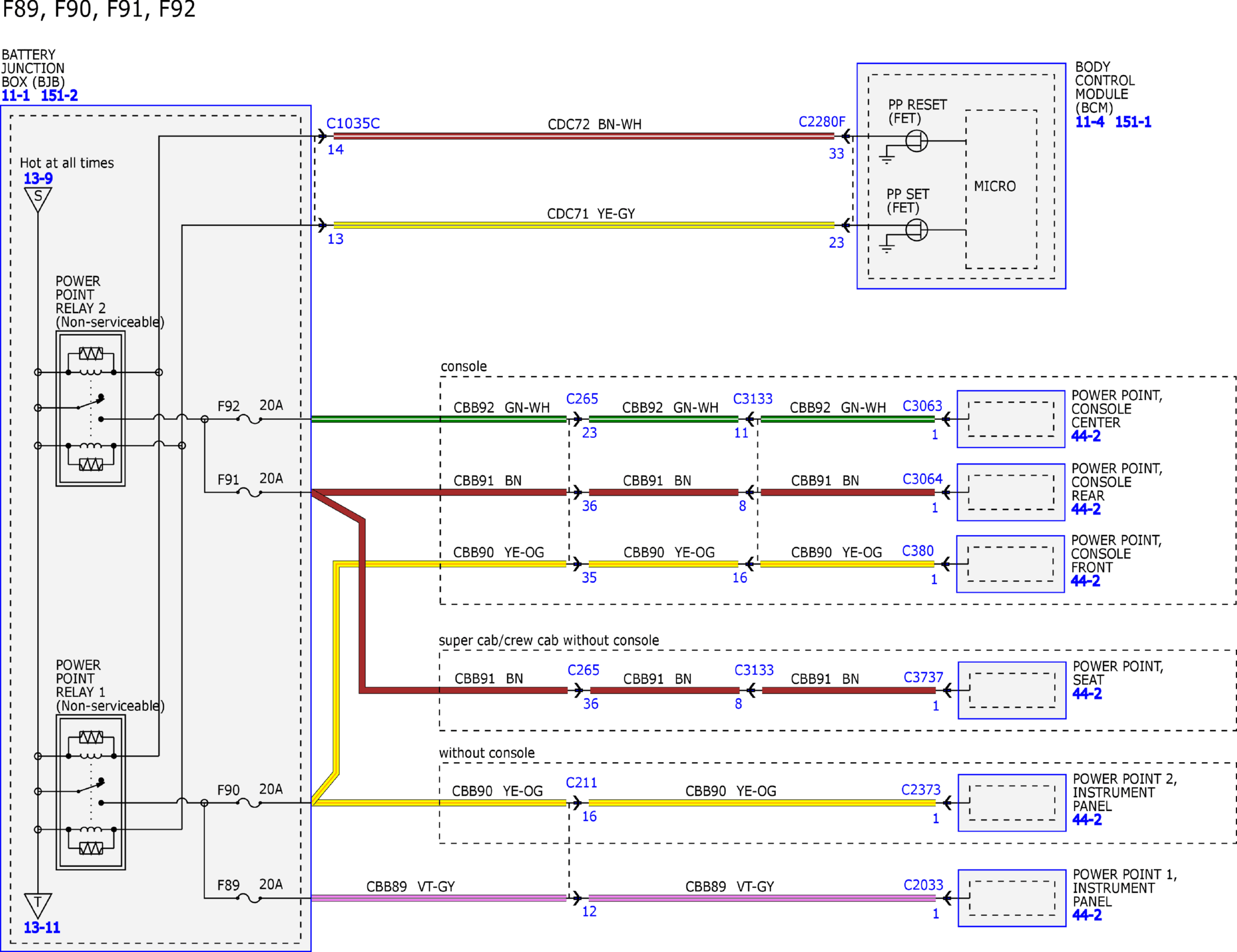

Fig 4: Power Distribution/BCM Wiring Diagram (4 of 56)
Courtesy of FORD MOTOR COMPANY

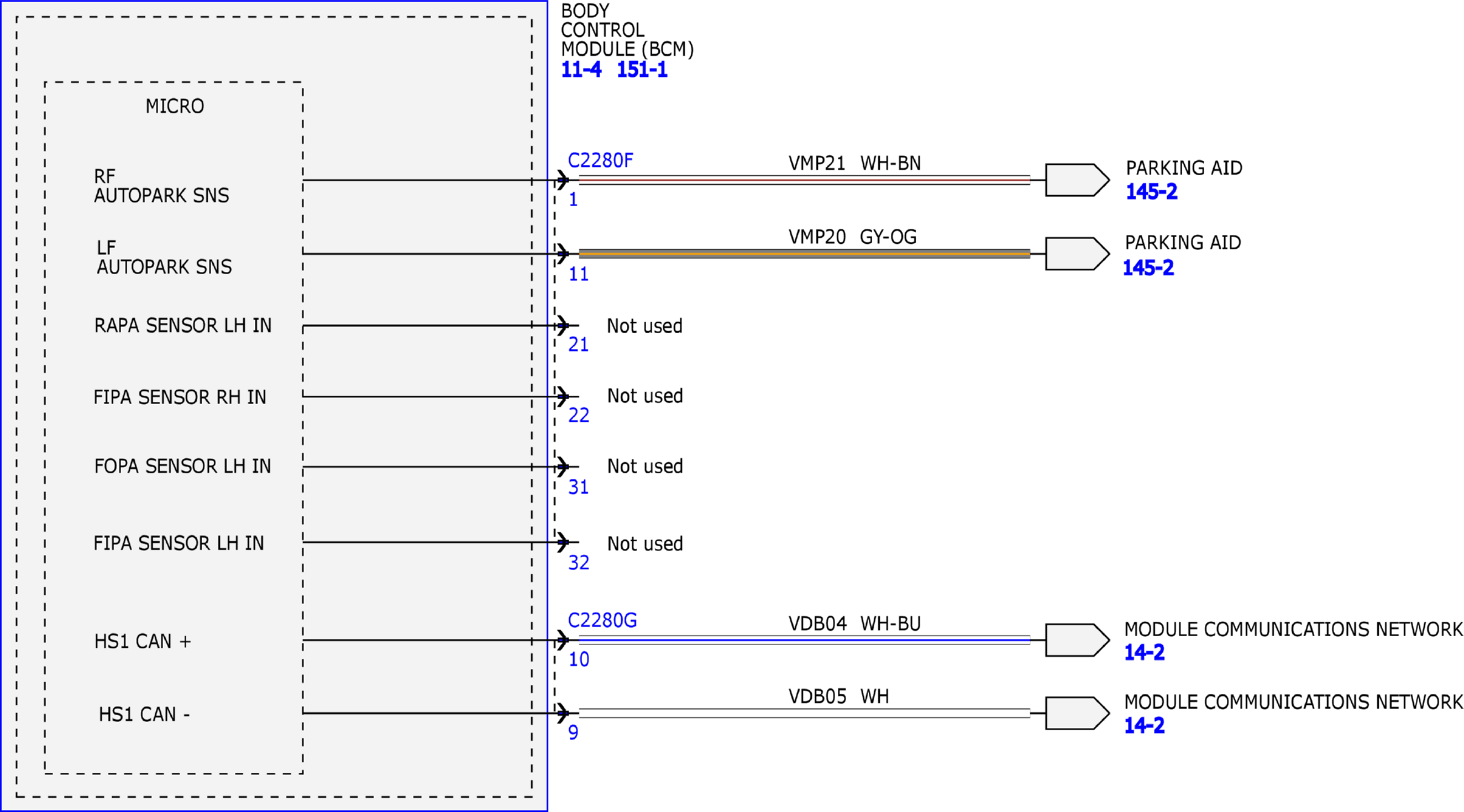

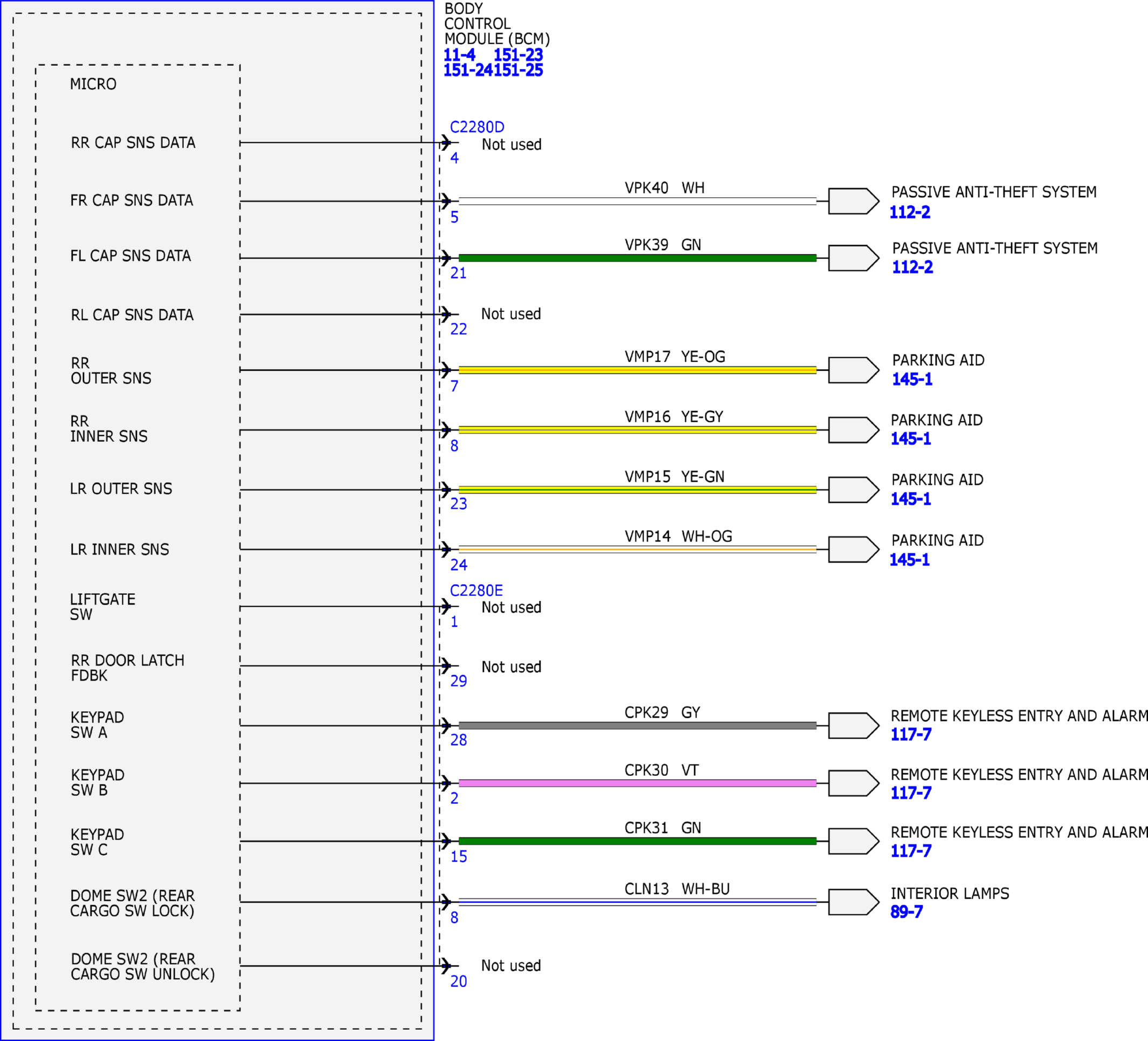

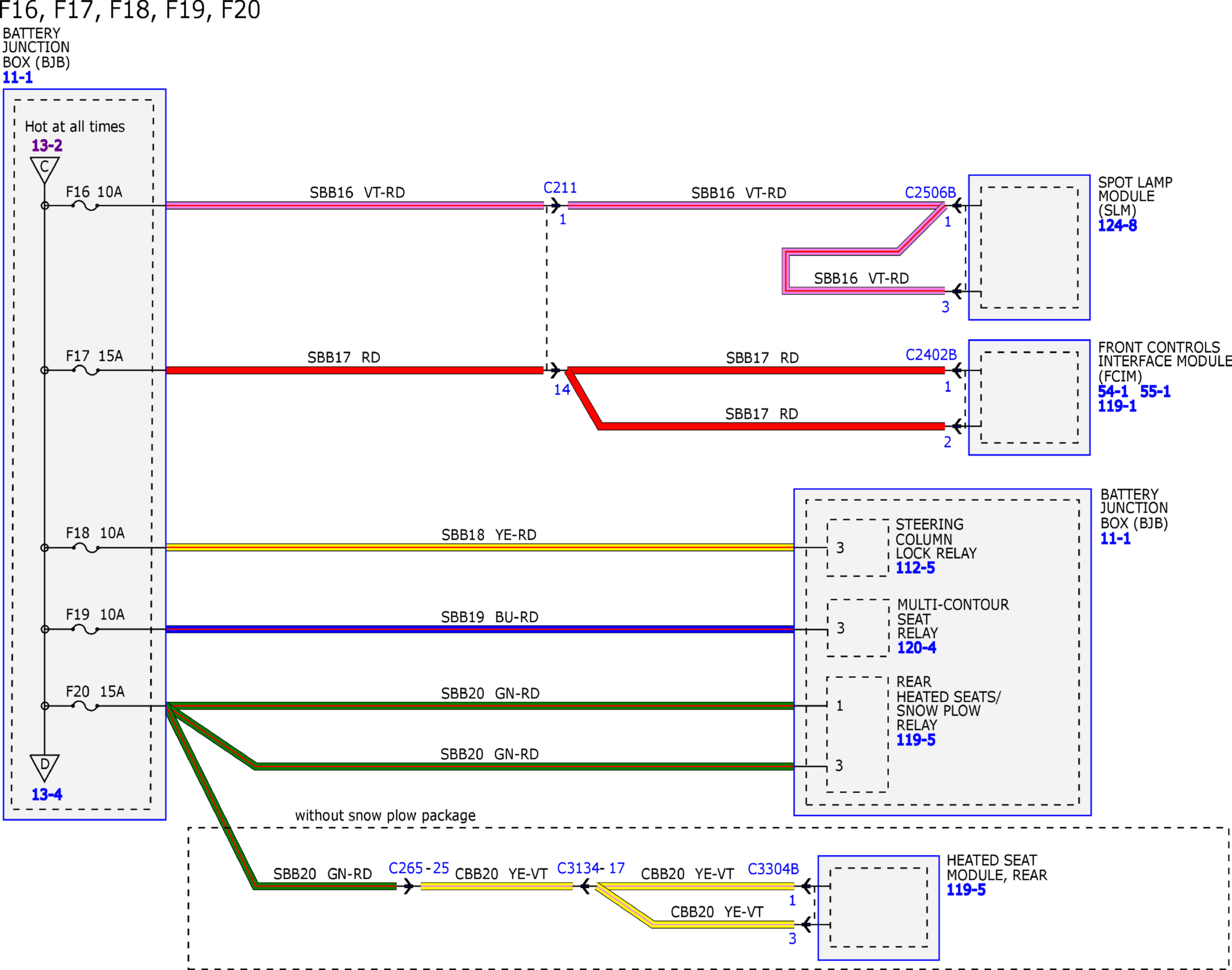

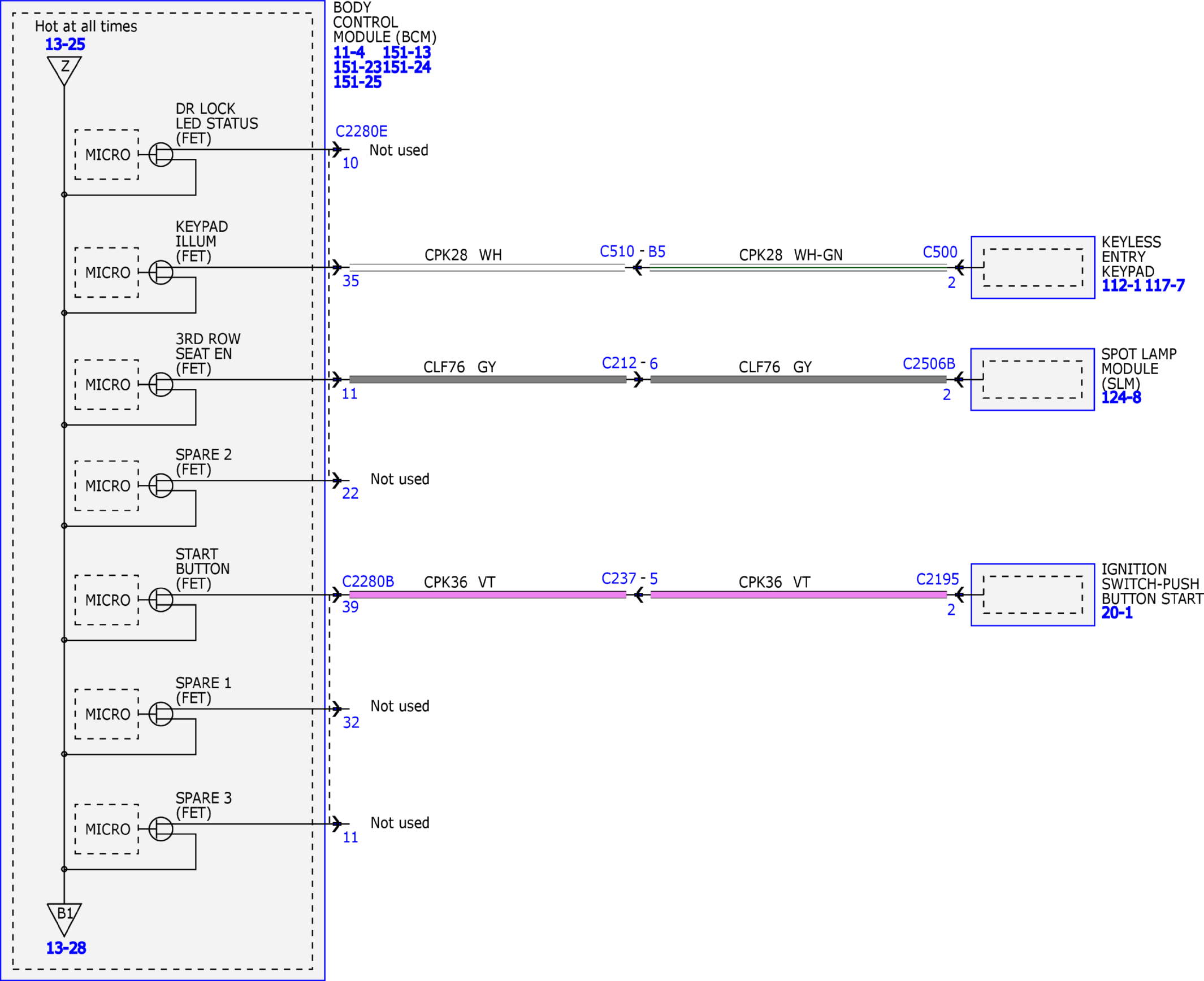

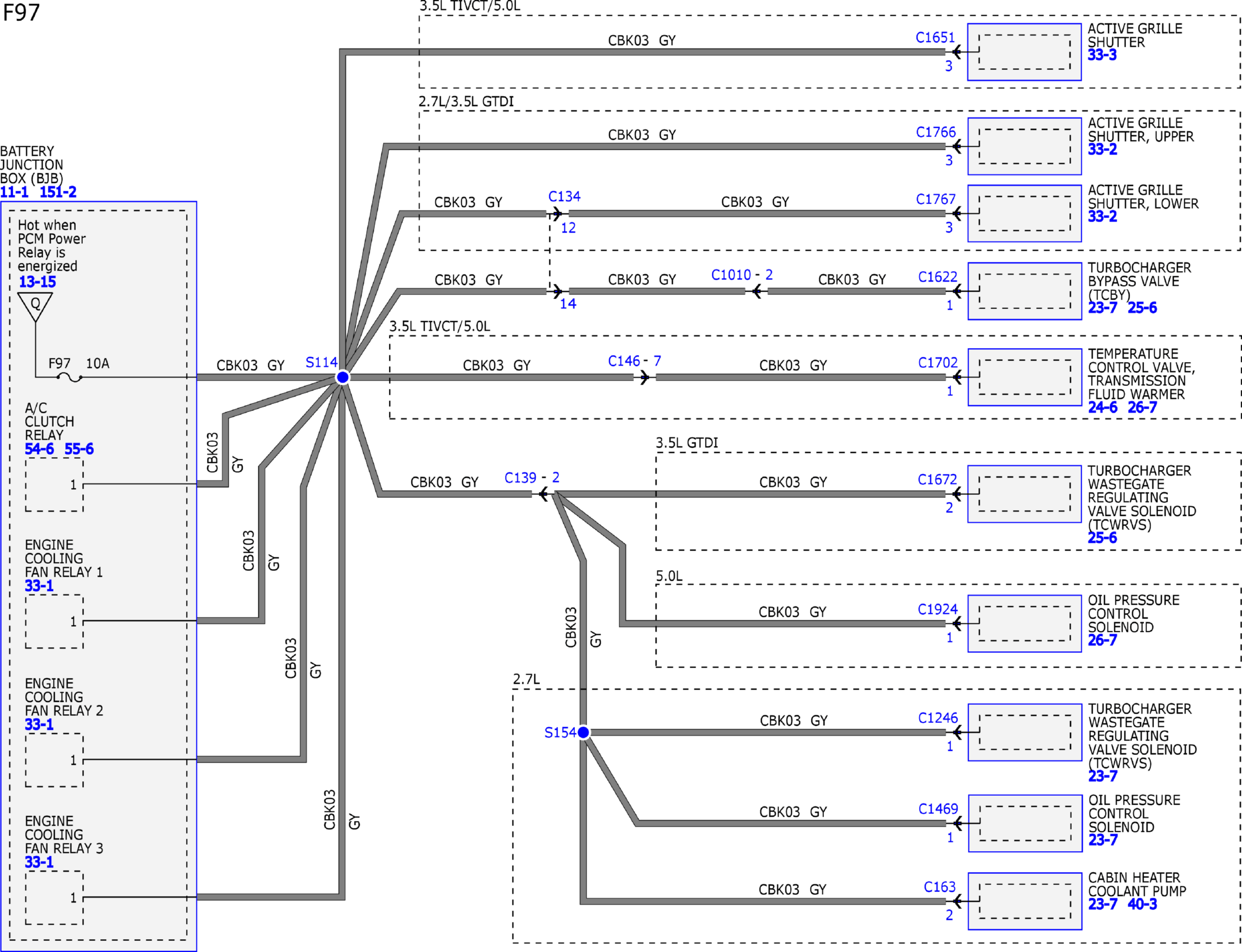

Fig 5: Power Distribution/BCM Wiring Diagram (5 of 56)
Courtesy of FORD MOTOR COMPANY

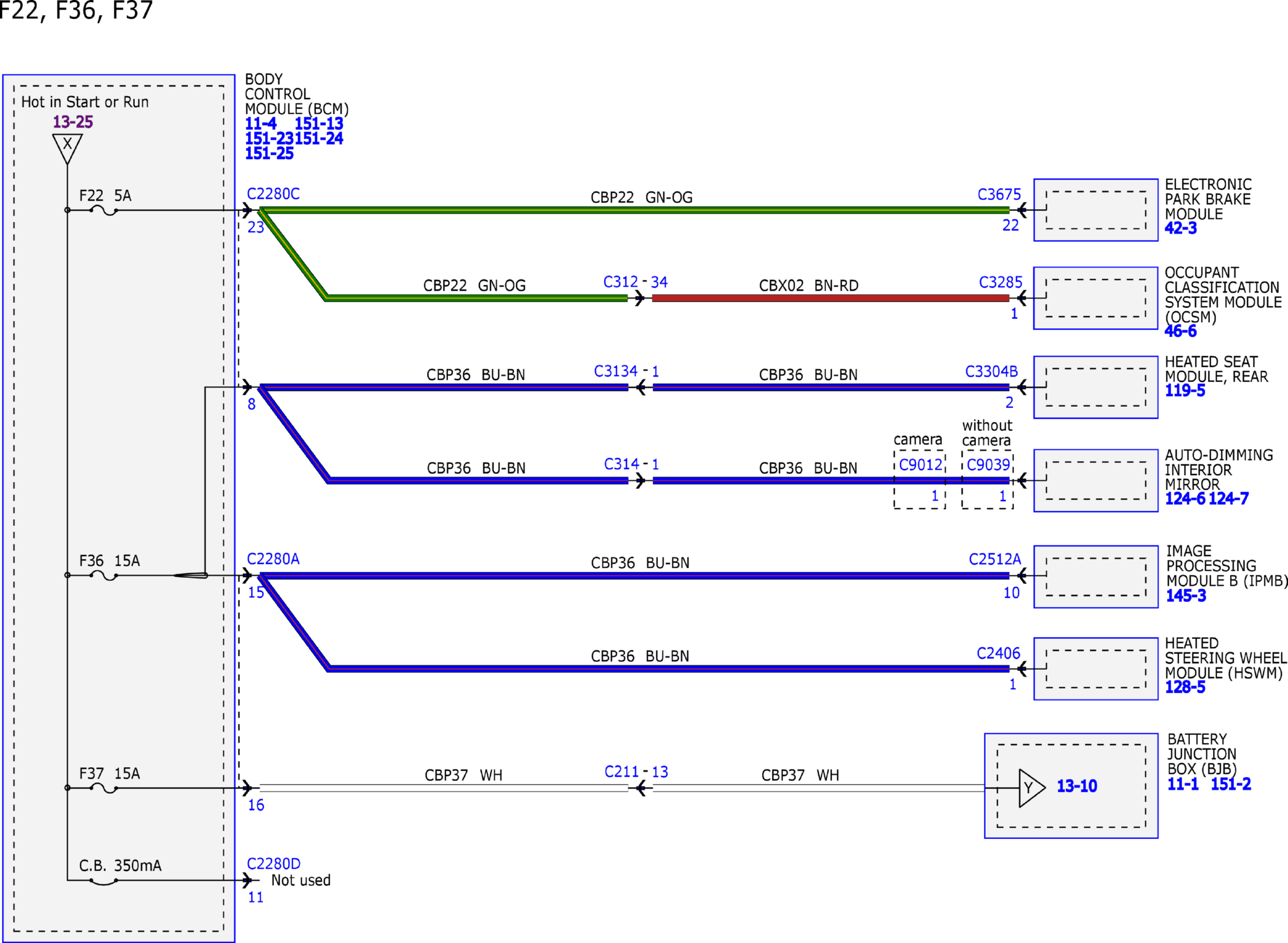

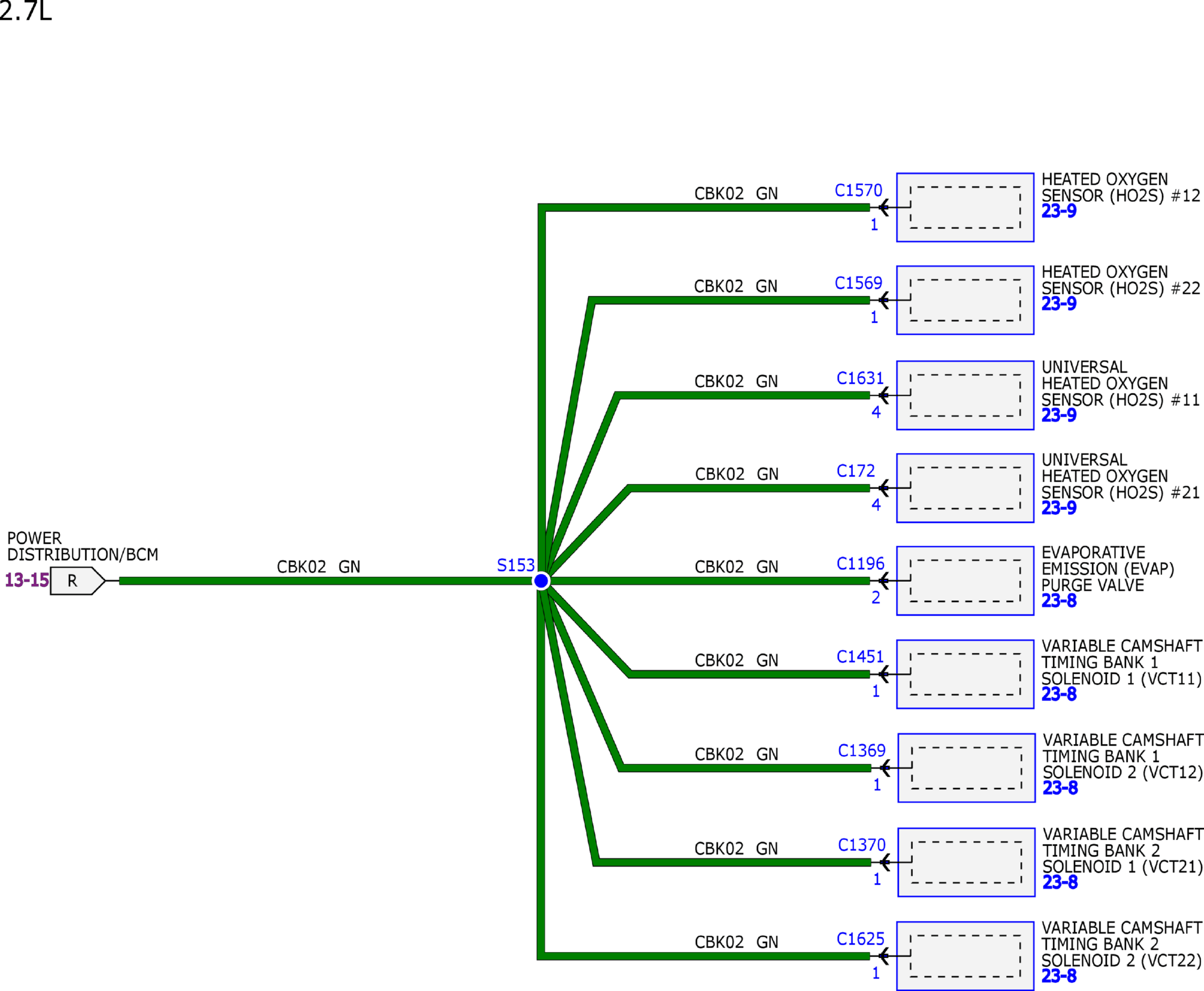

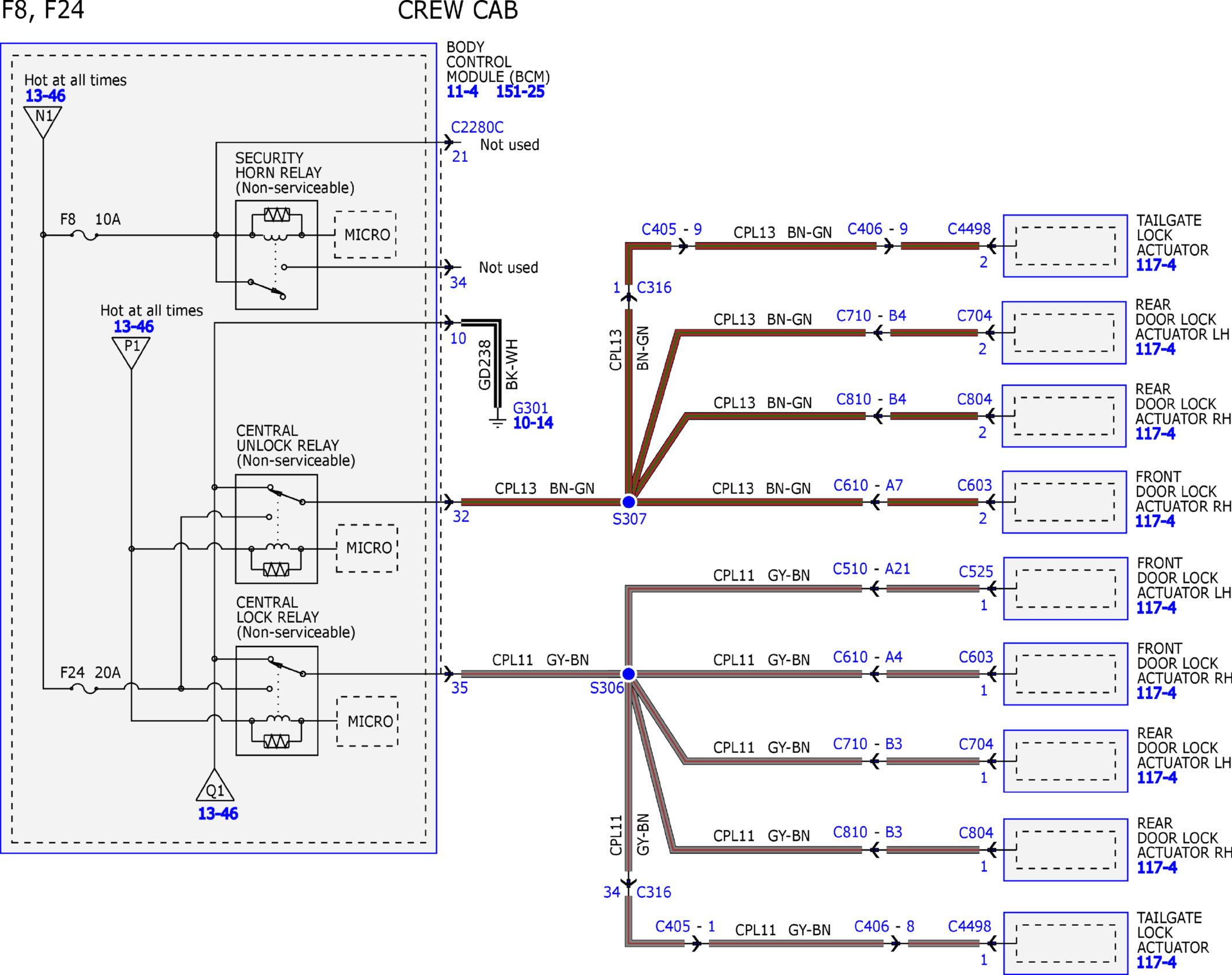

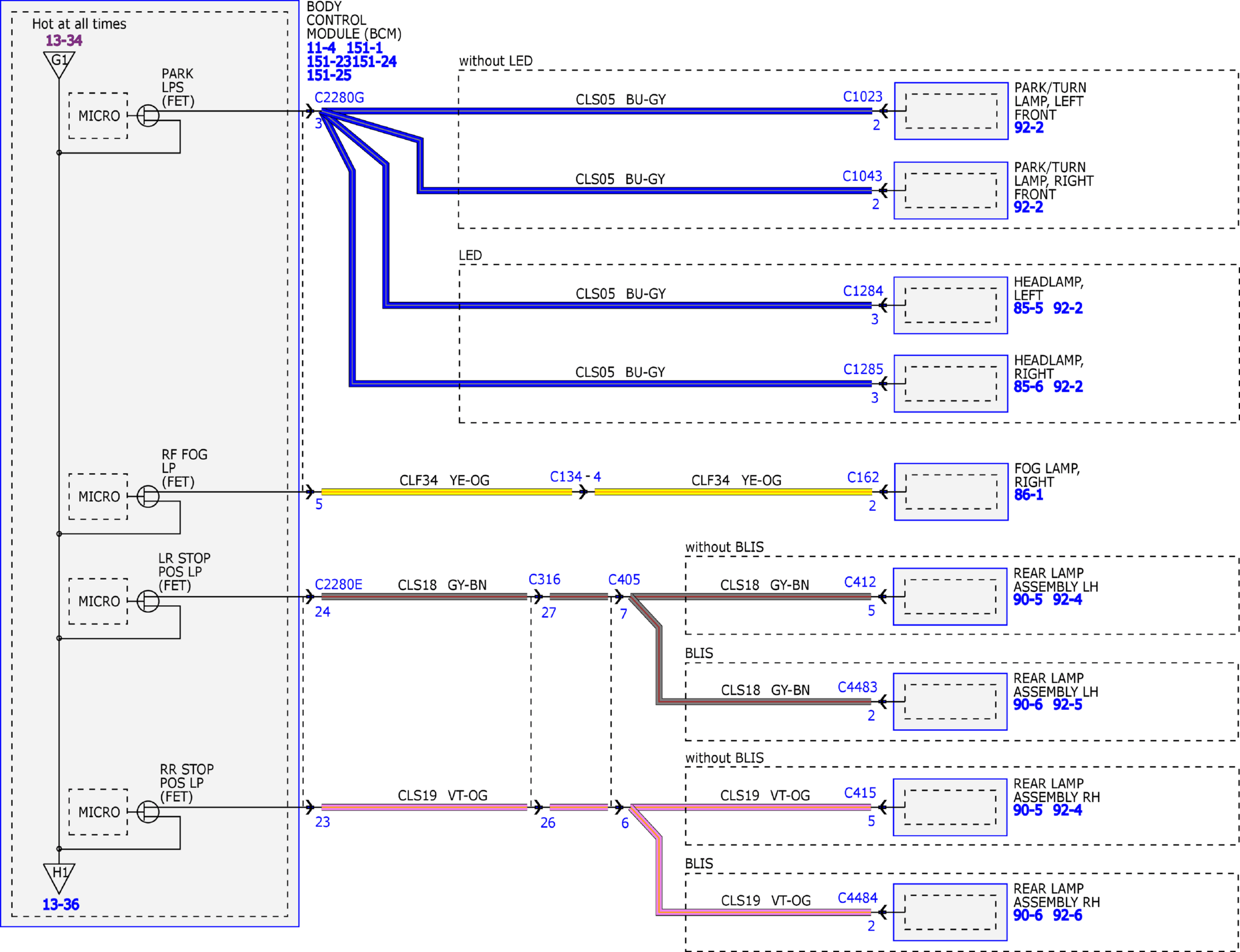

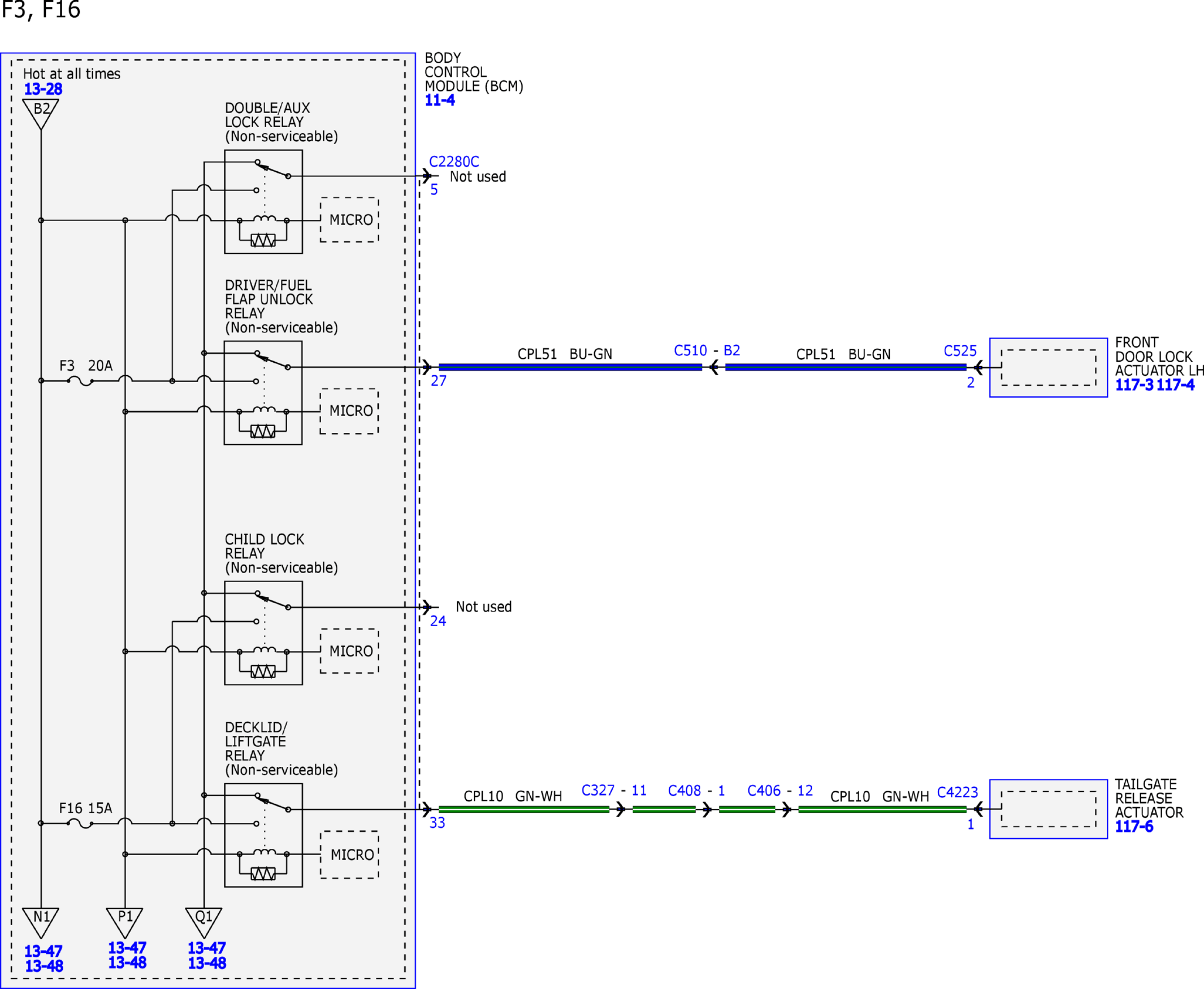

Fig 6: Power Distribution/BCM Wiring Diagram (6 of 56)
Courtesy of FORD MOTOR COMPANY

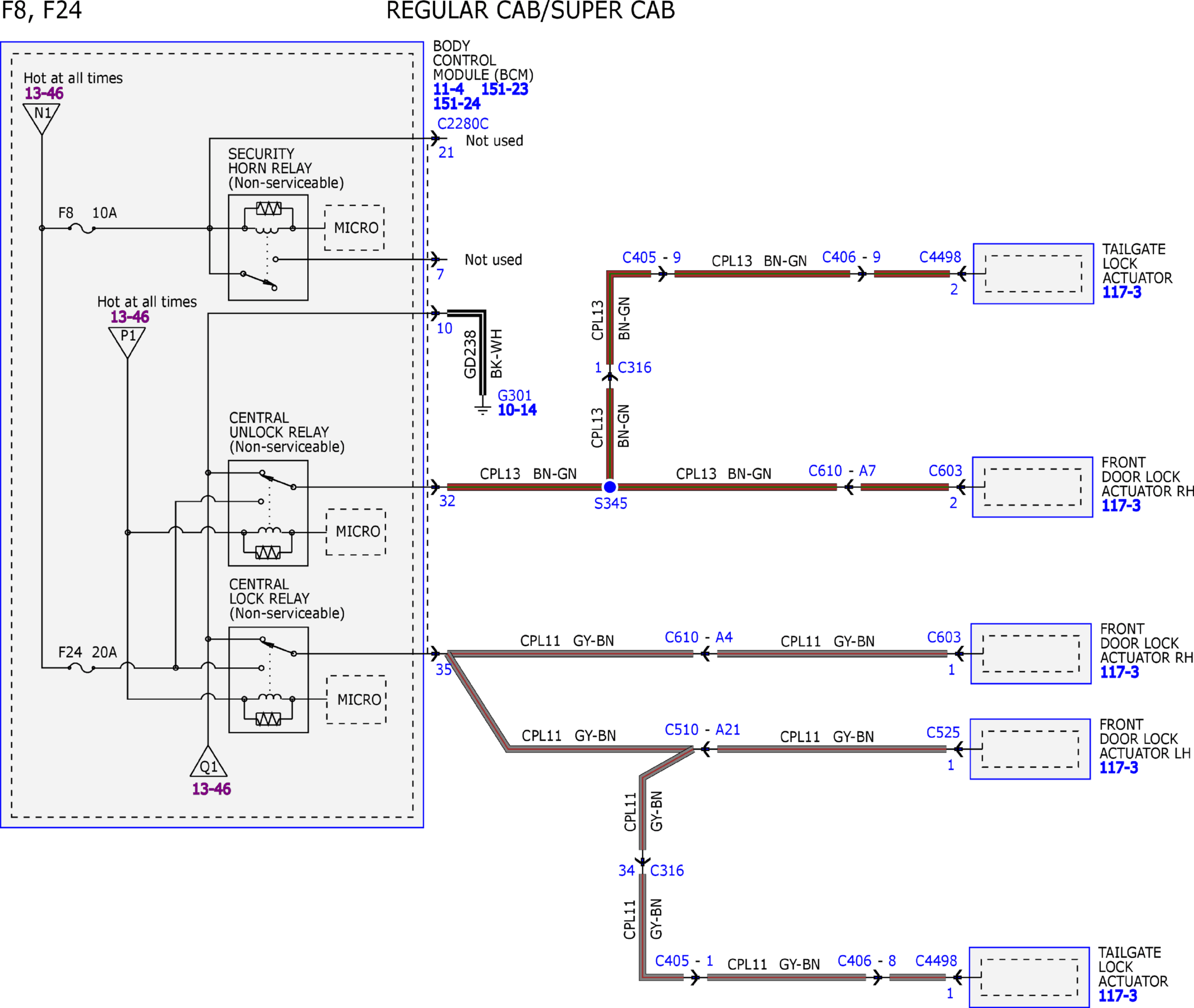

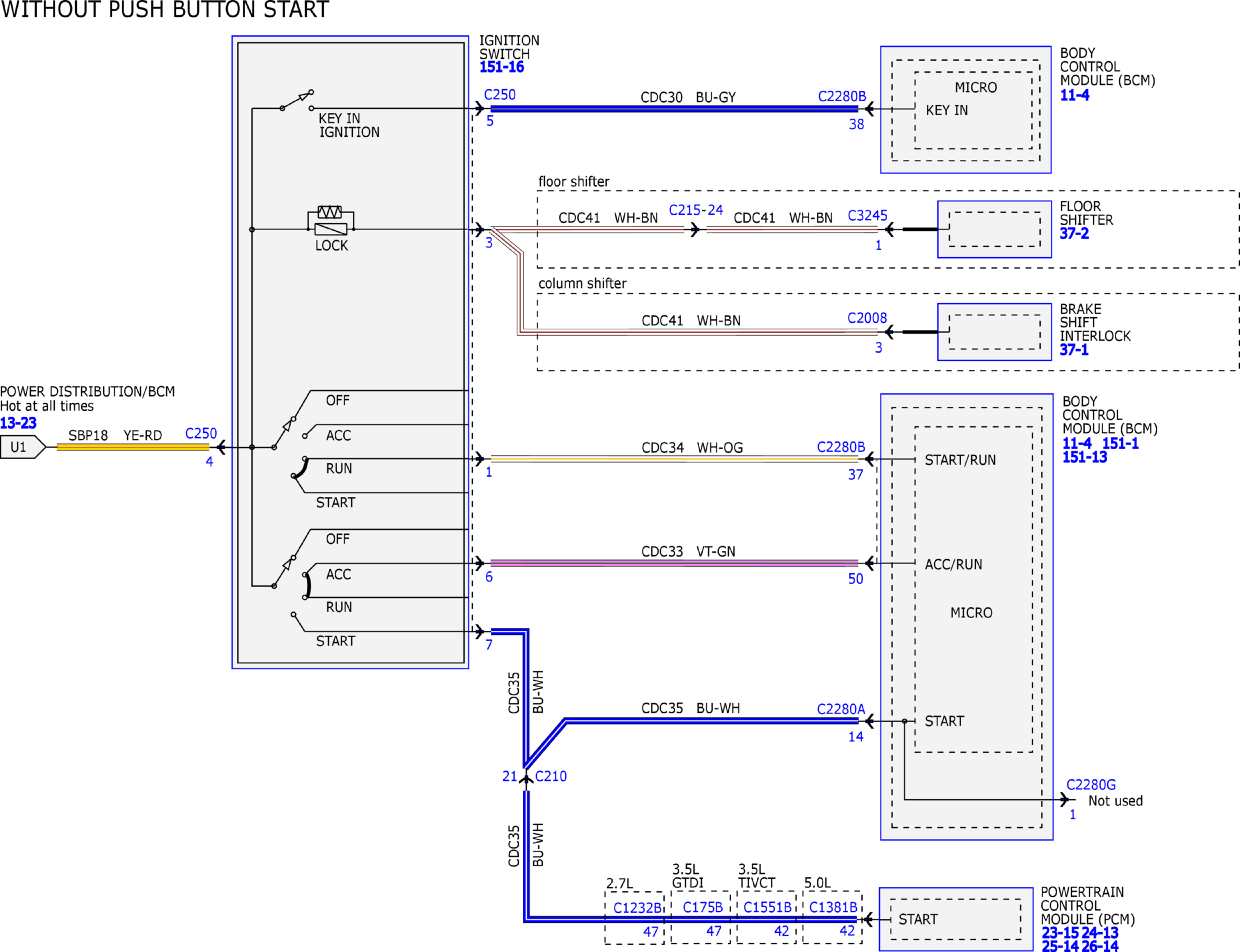

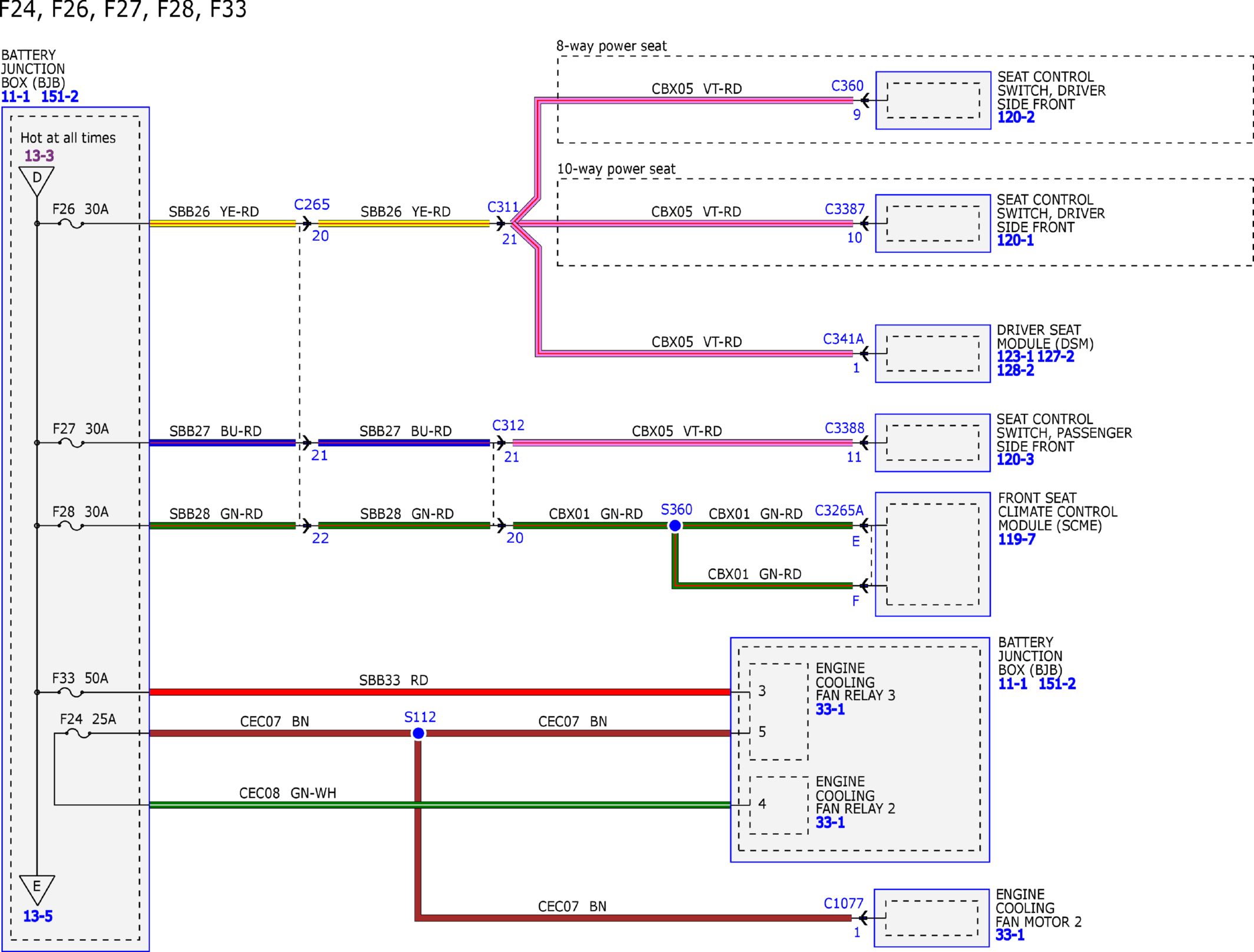

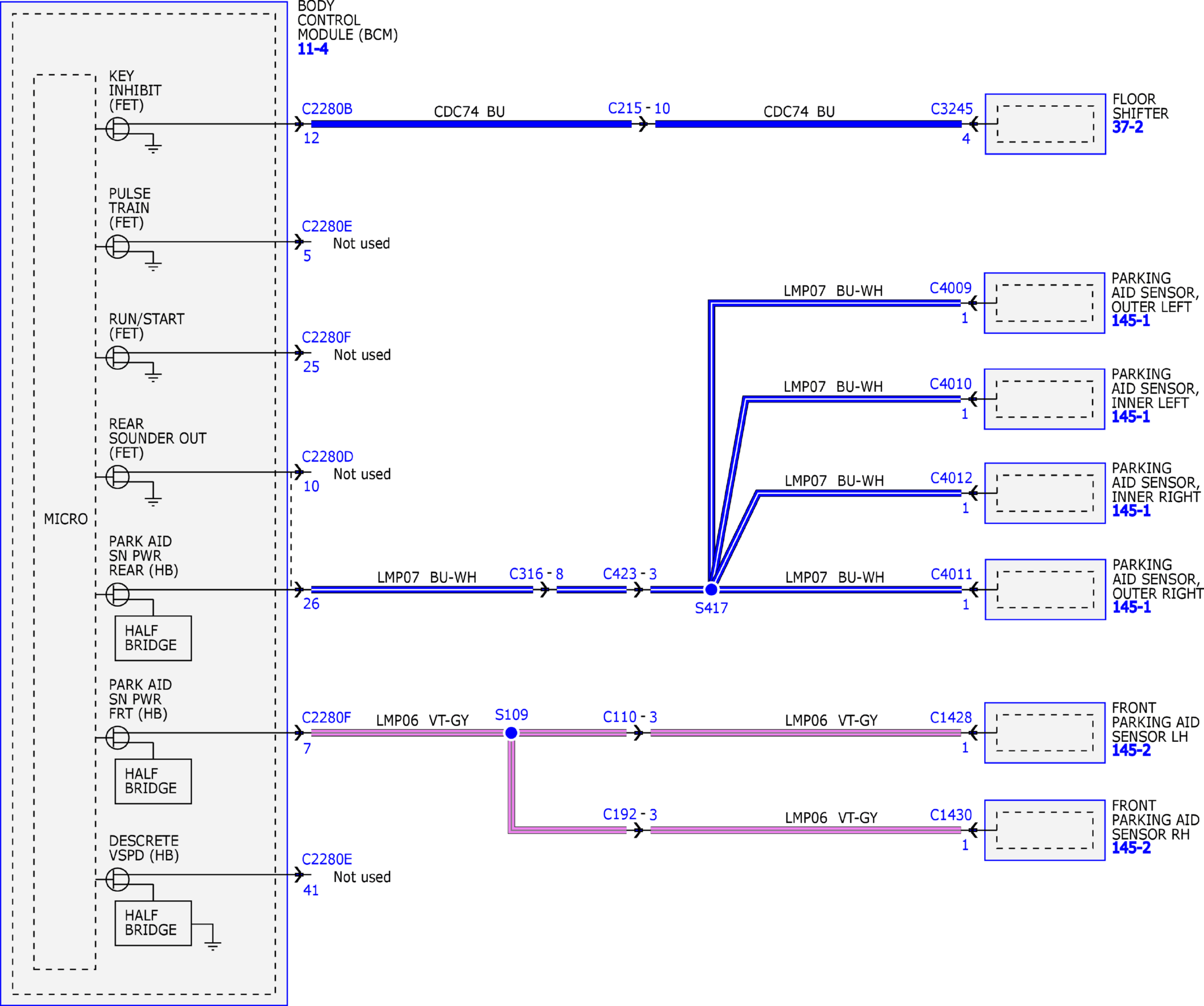

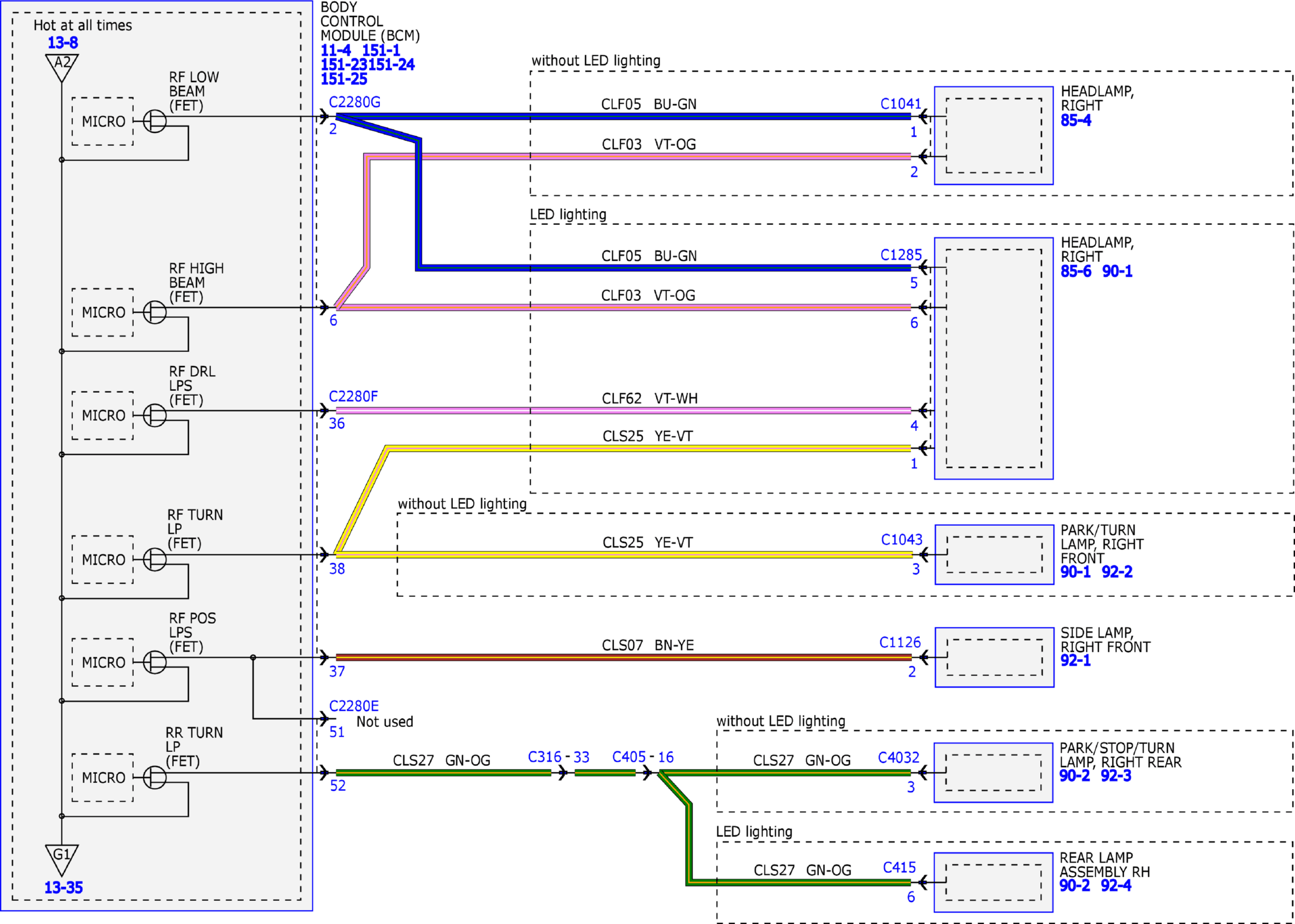

Fig 7: Power Distribution/BCM Wiring Diagram (7 of 56)
Courtesy of FORD MOTOR COMPANY

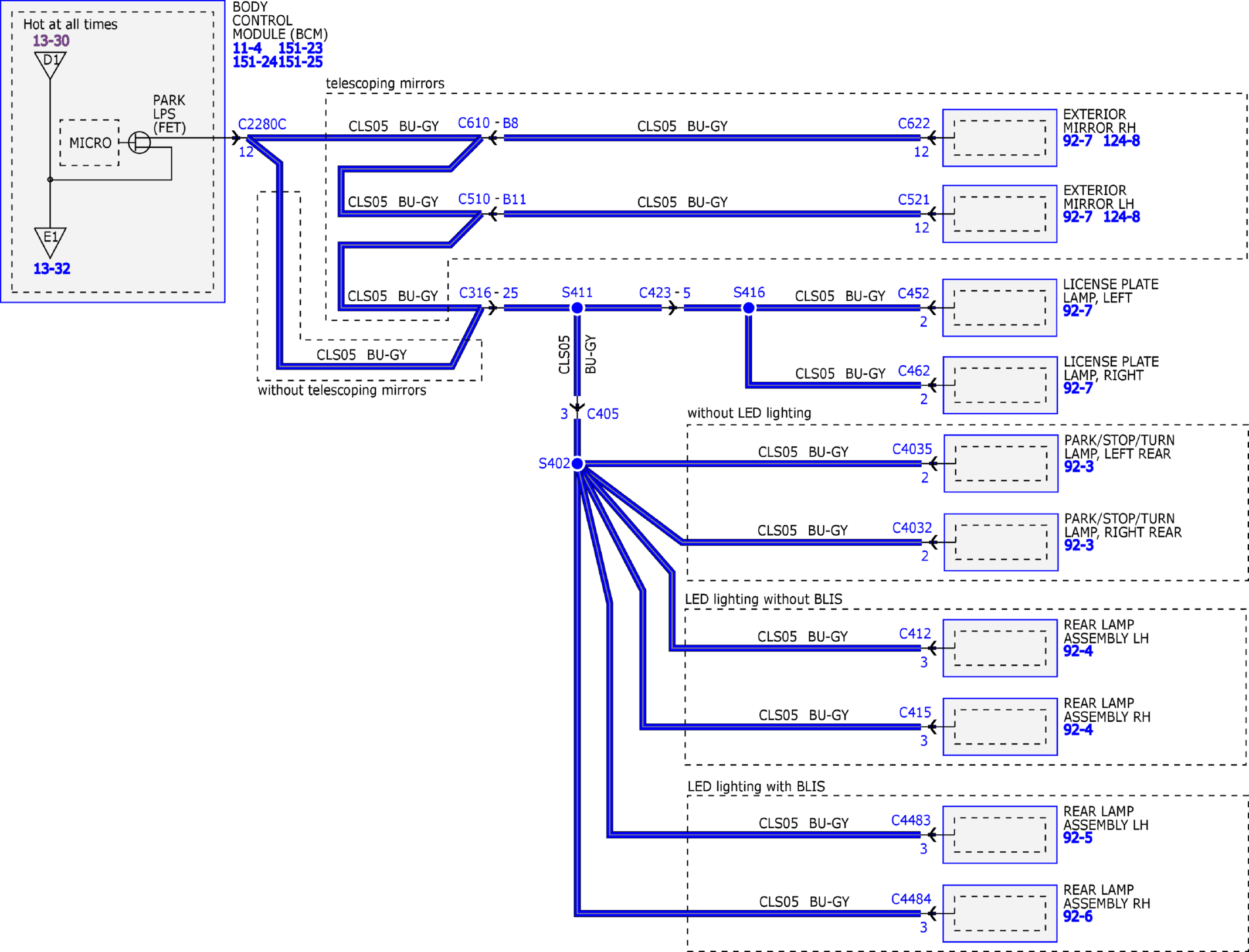

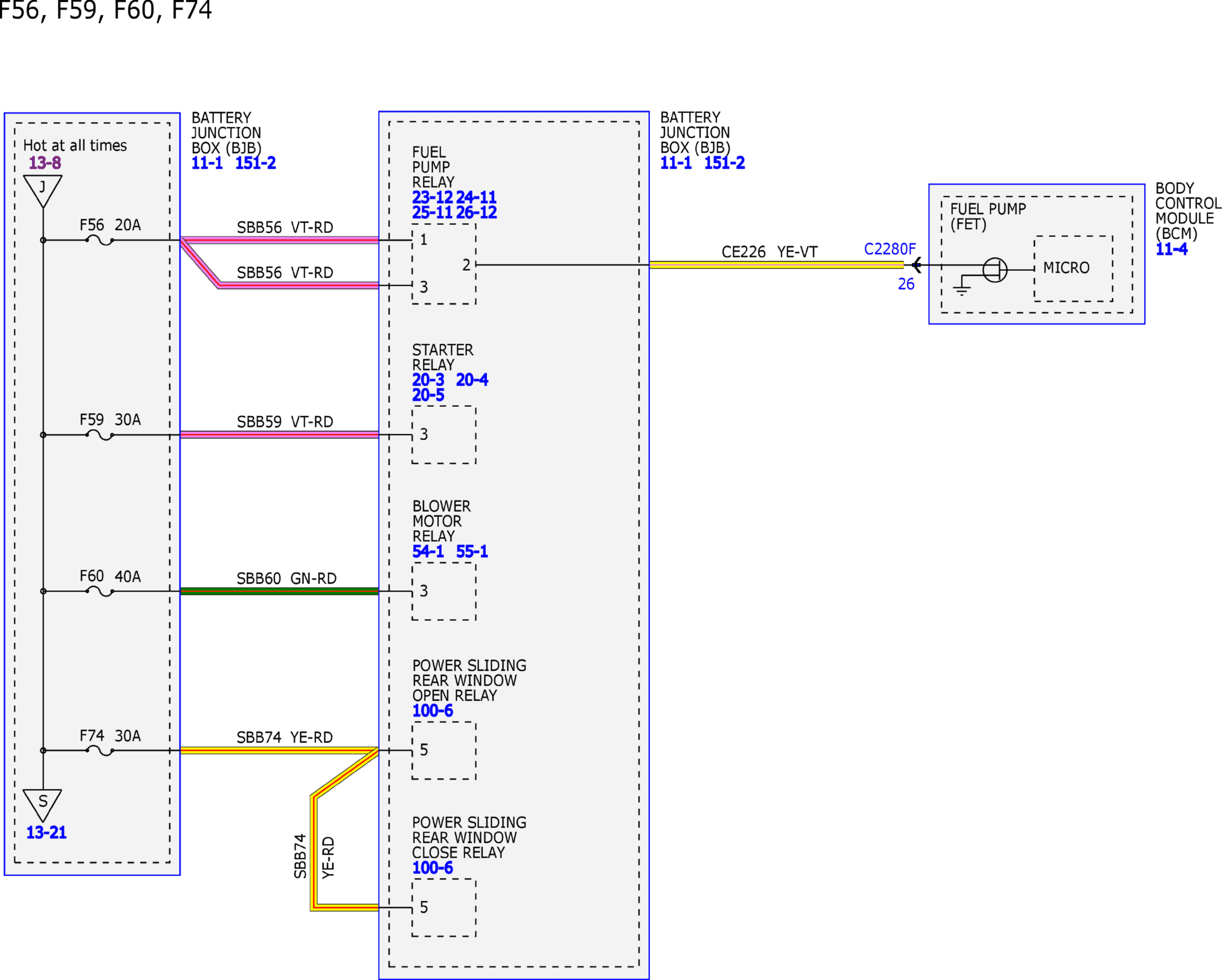

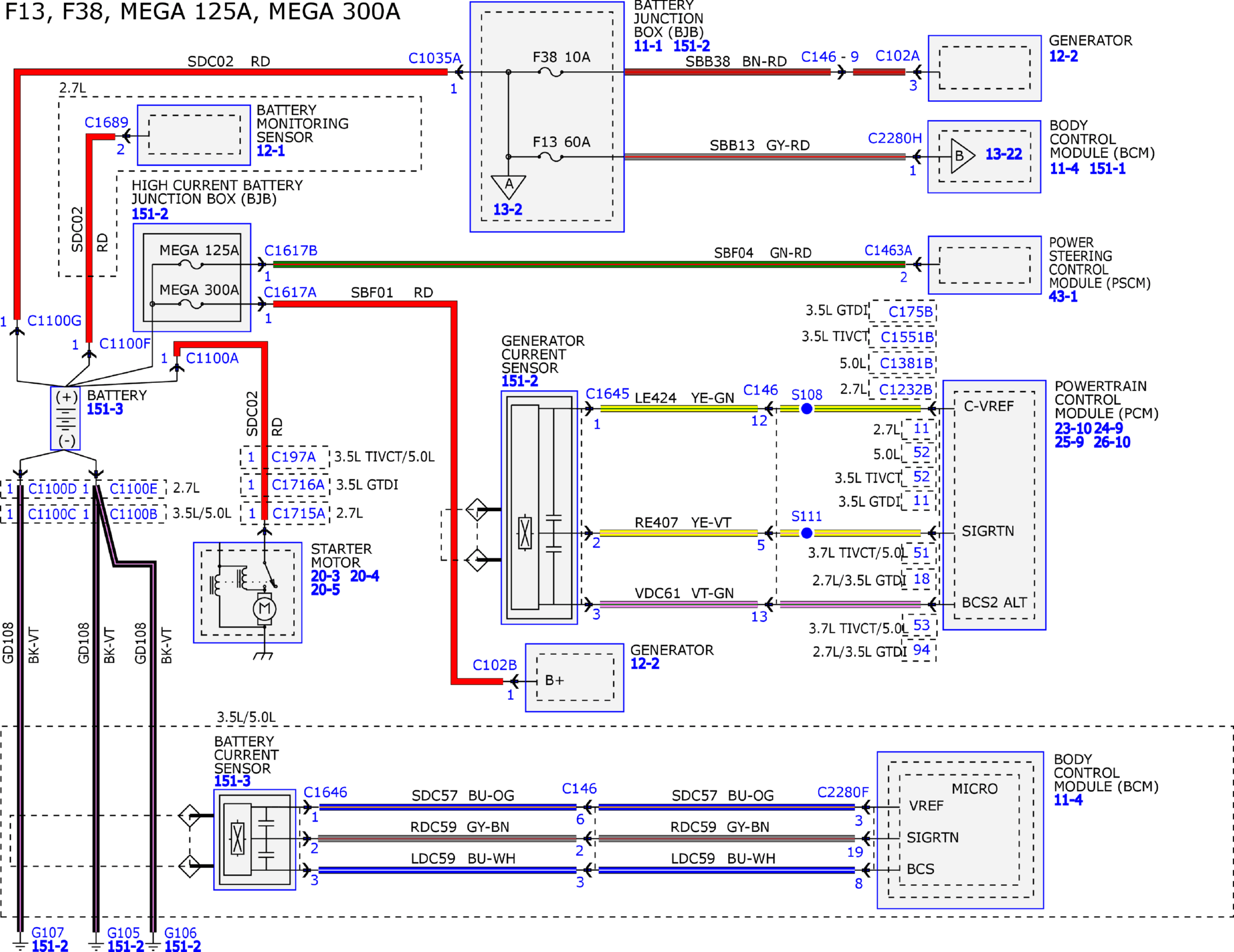

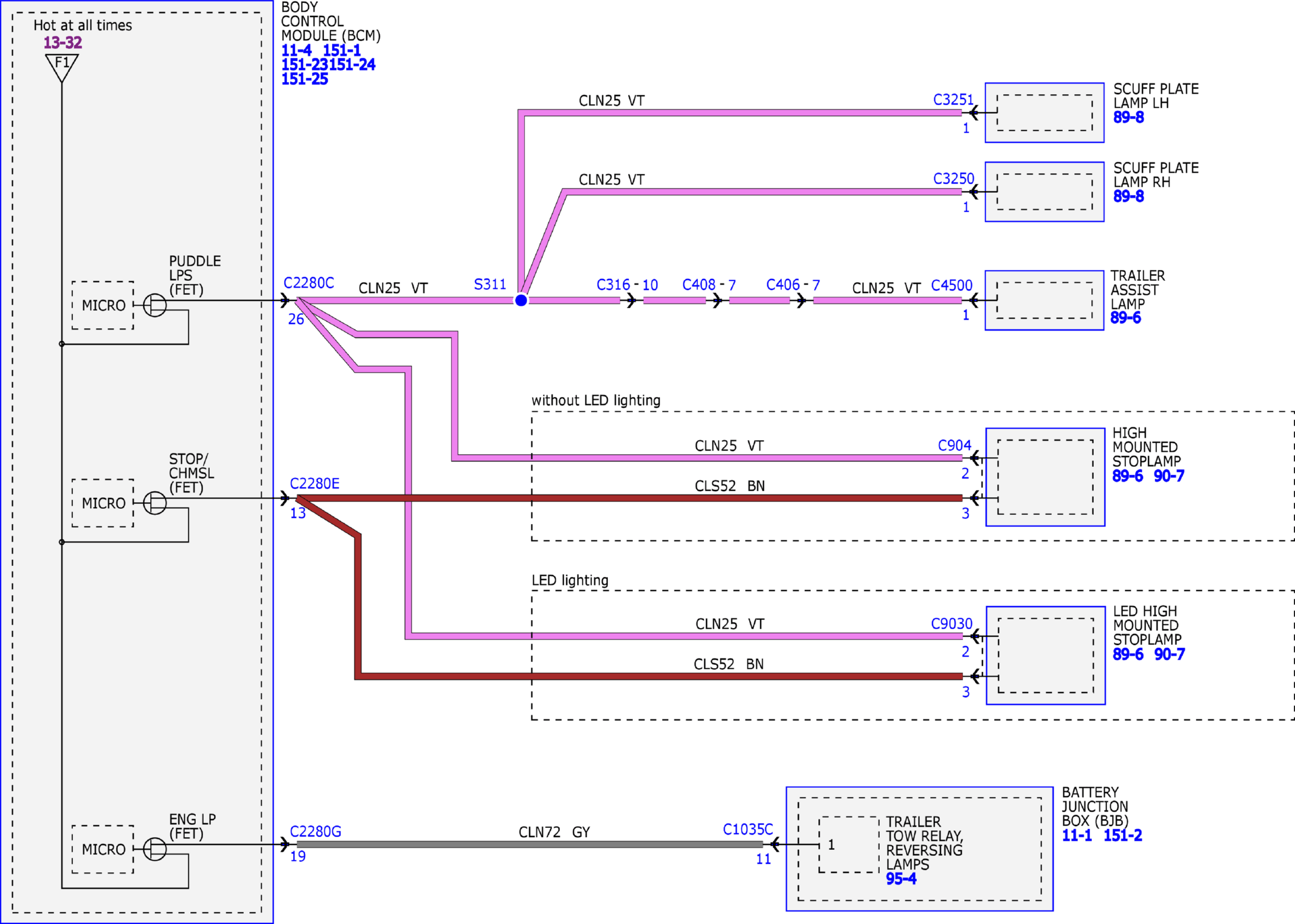

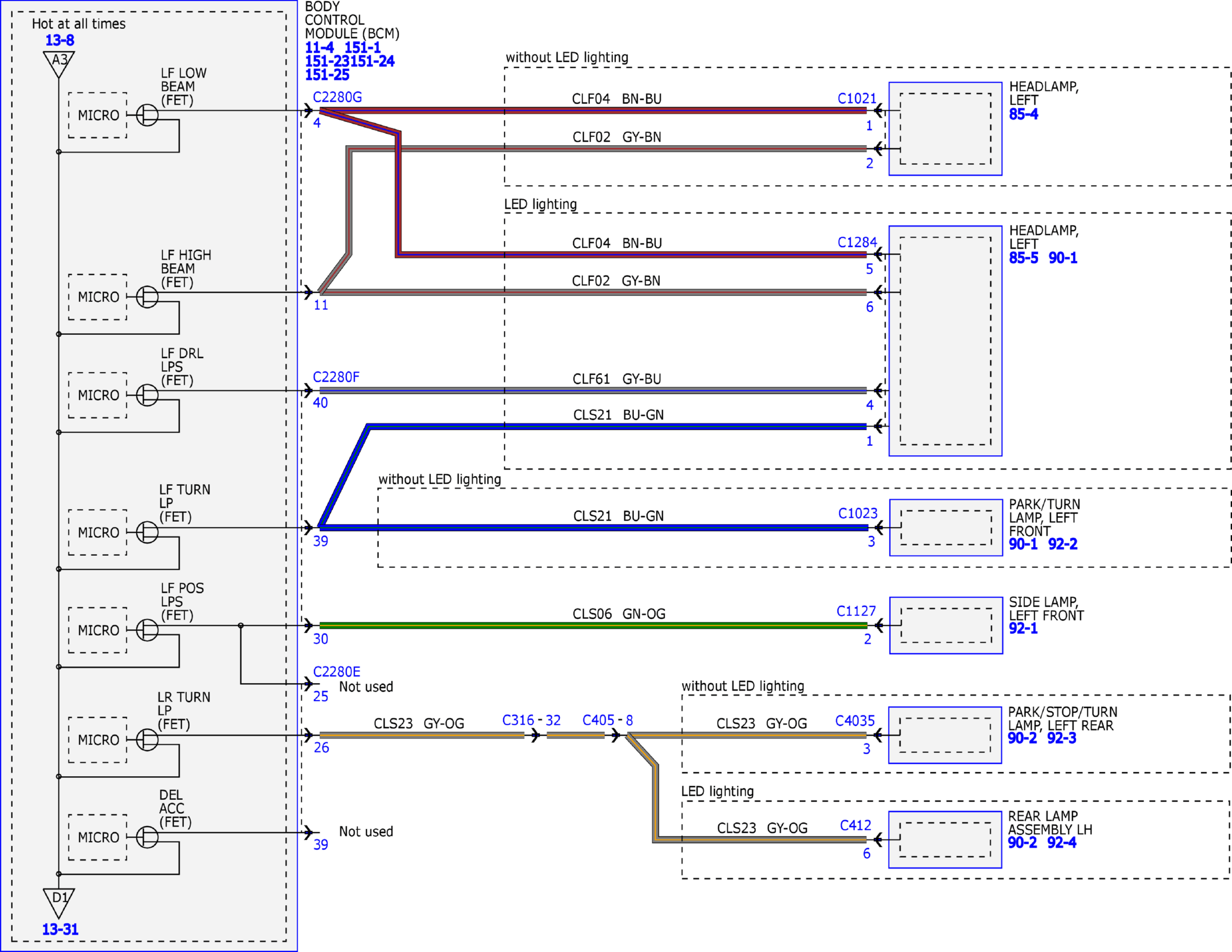

Fig 8: Power Distribution/BCM Wiring Diagram (8 of 56)
Courtesy of FORD MOTOR COMPANY

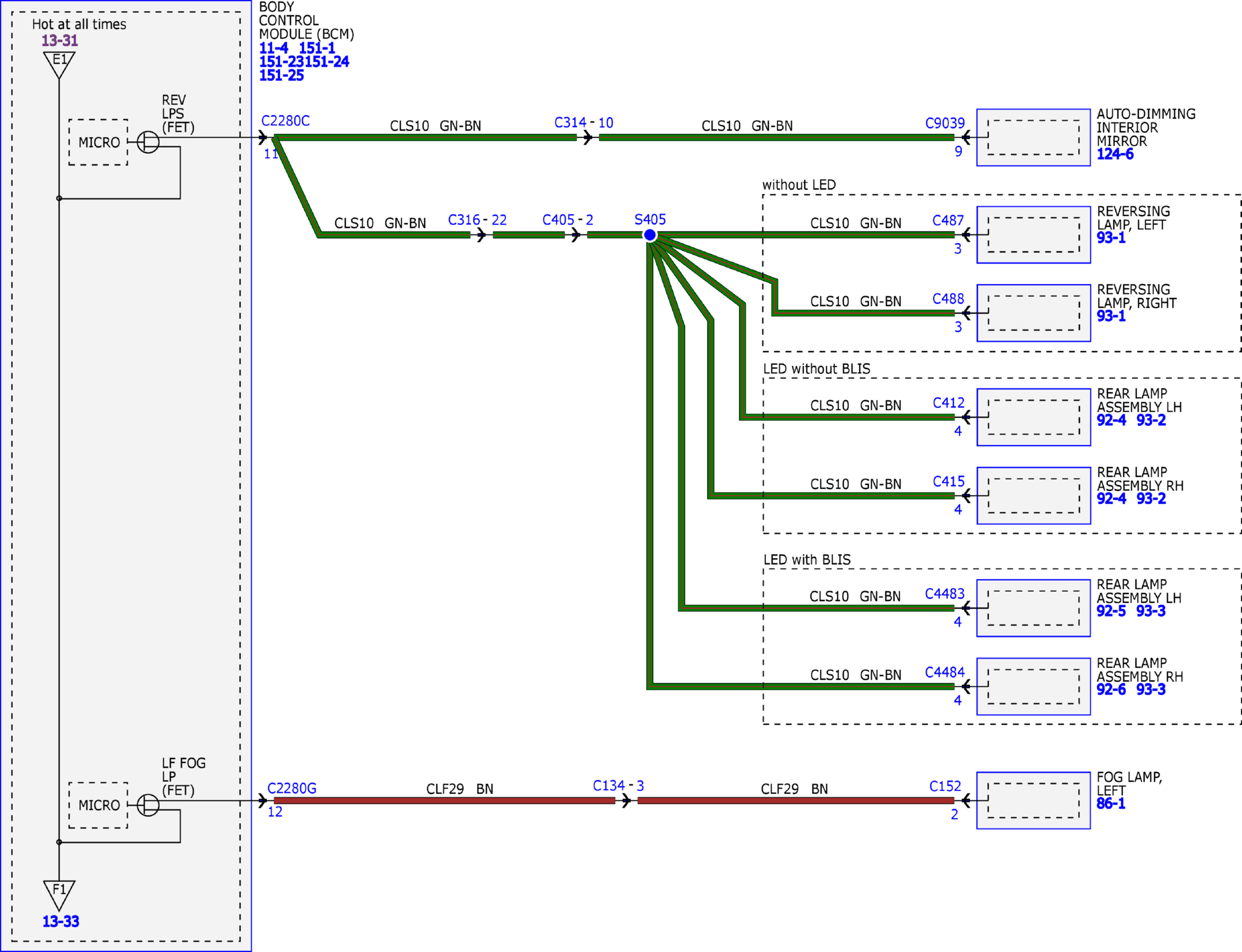

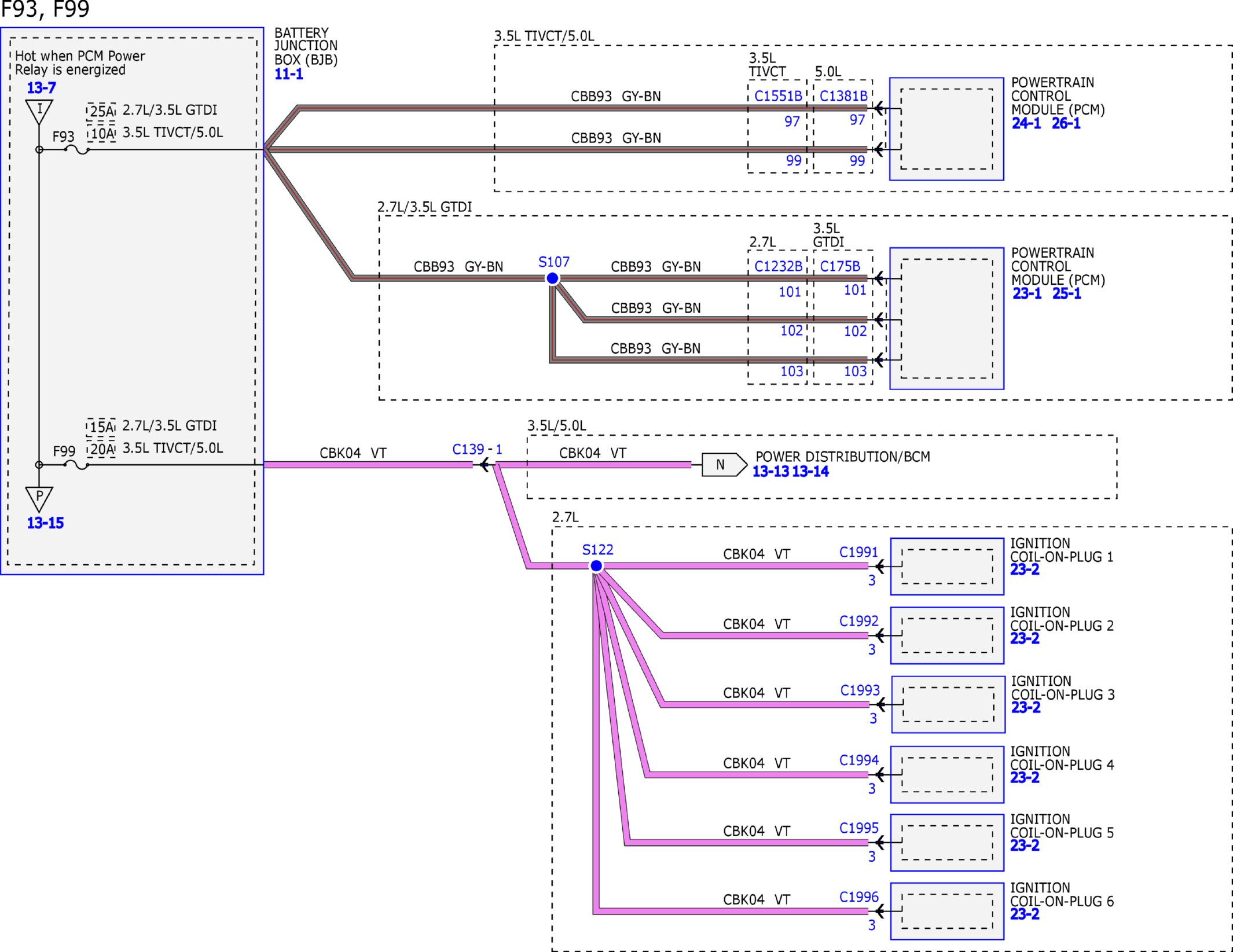

Fig 9: Power Distribution/BCM Wiring Diagram (9 of 56)
Courtesy of FORD MOTOR COMPANY

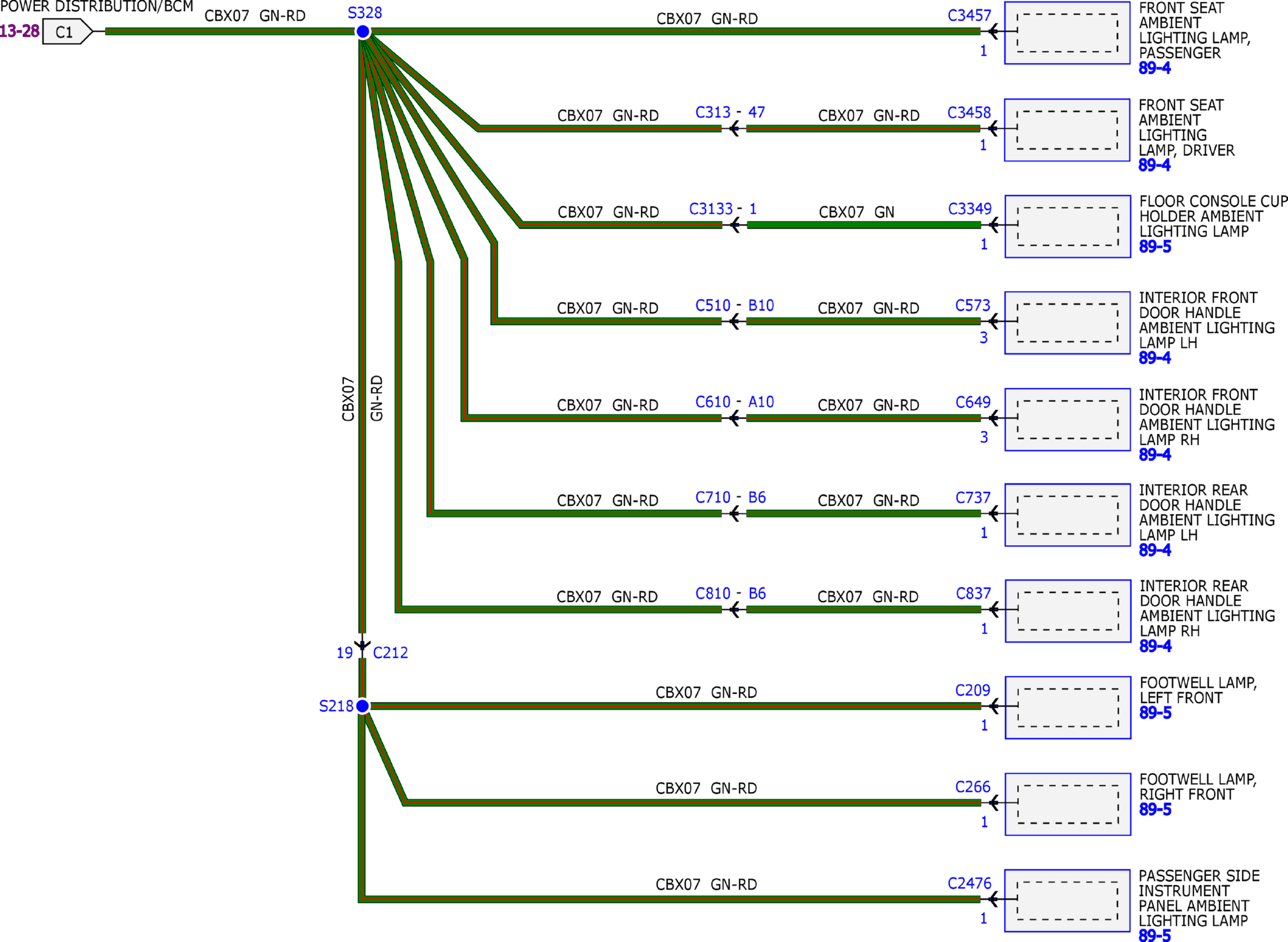

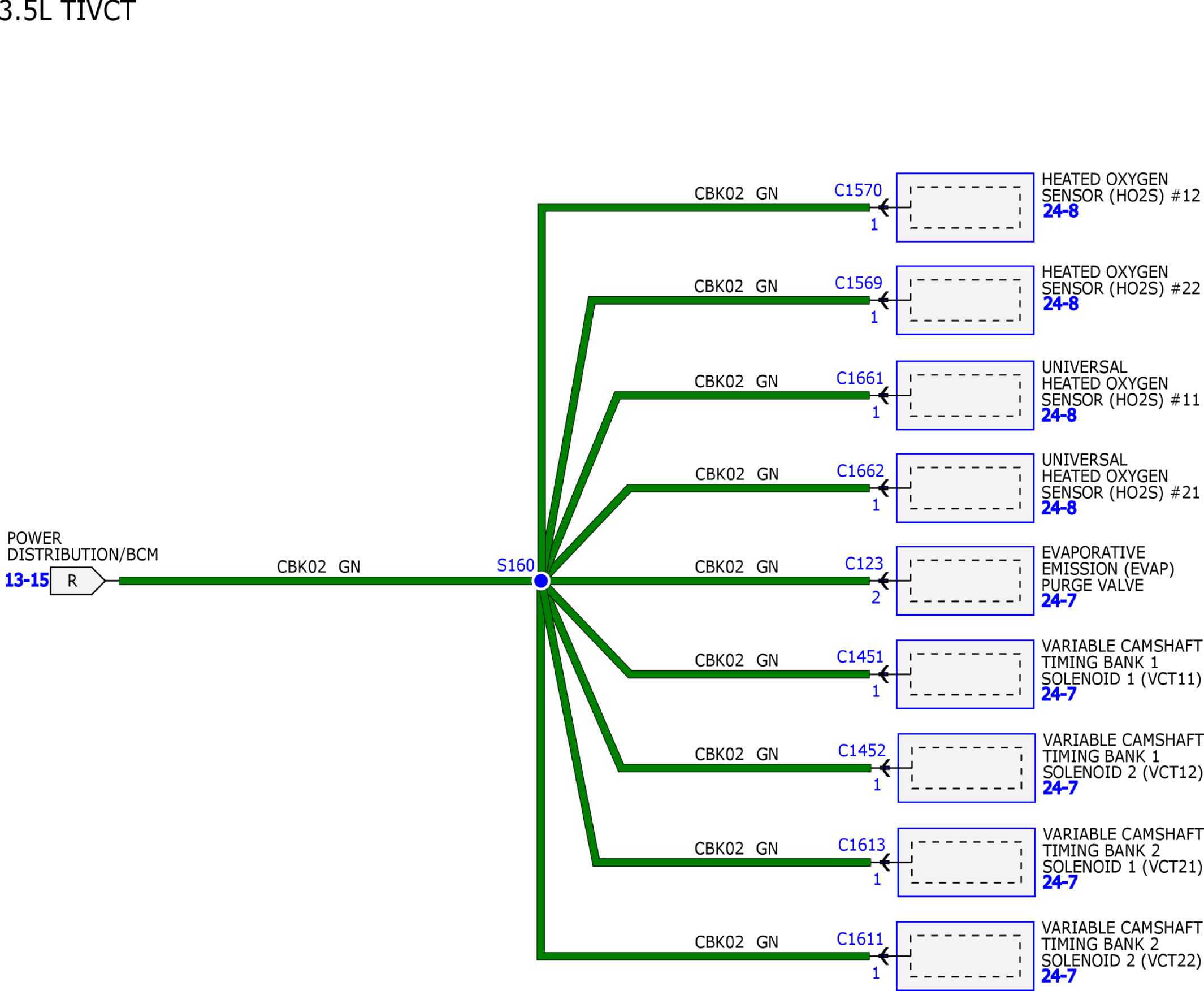

Fig 10: Power Distribution/BCM Wiring Diagram (10 of 56)
Courtesy of FORD MOTOR COMPANY

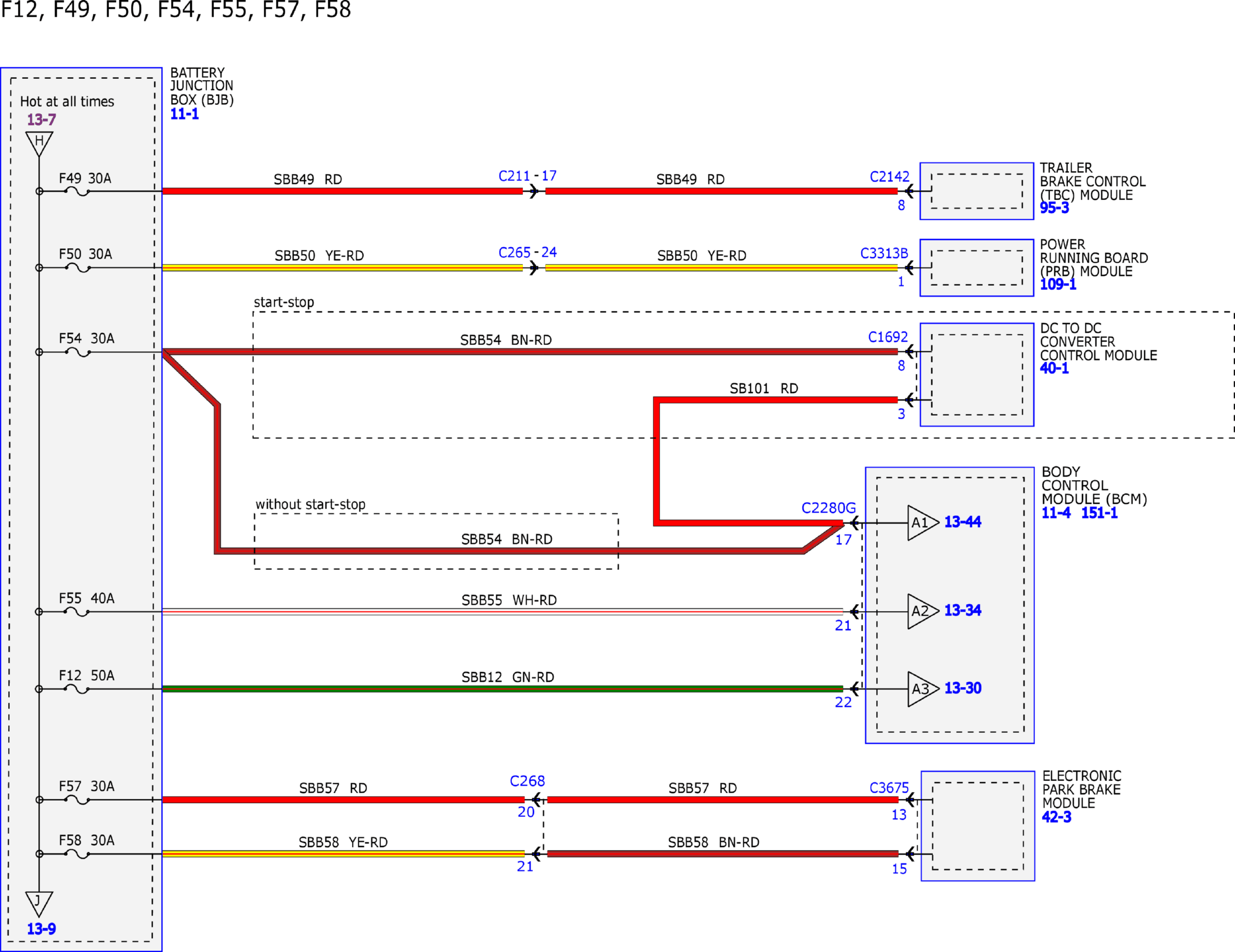

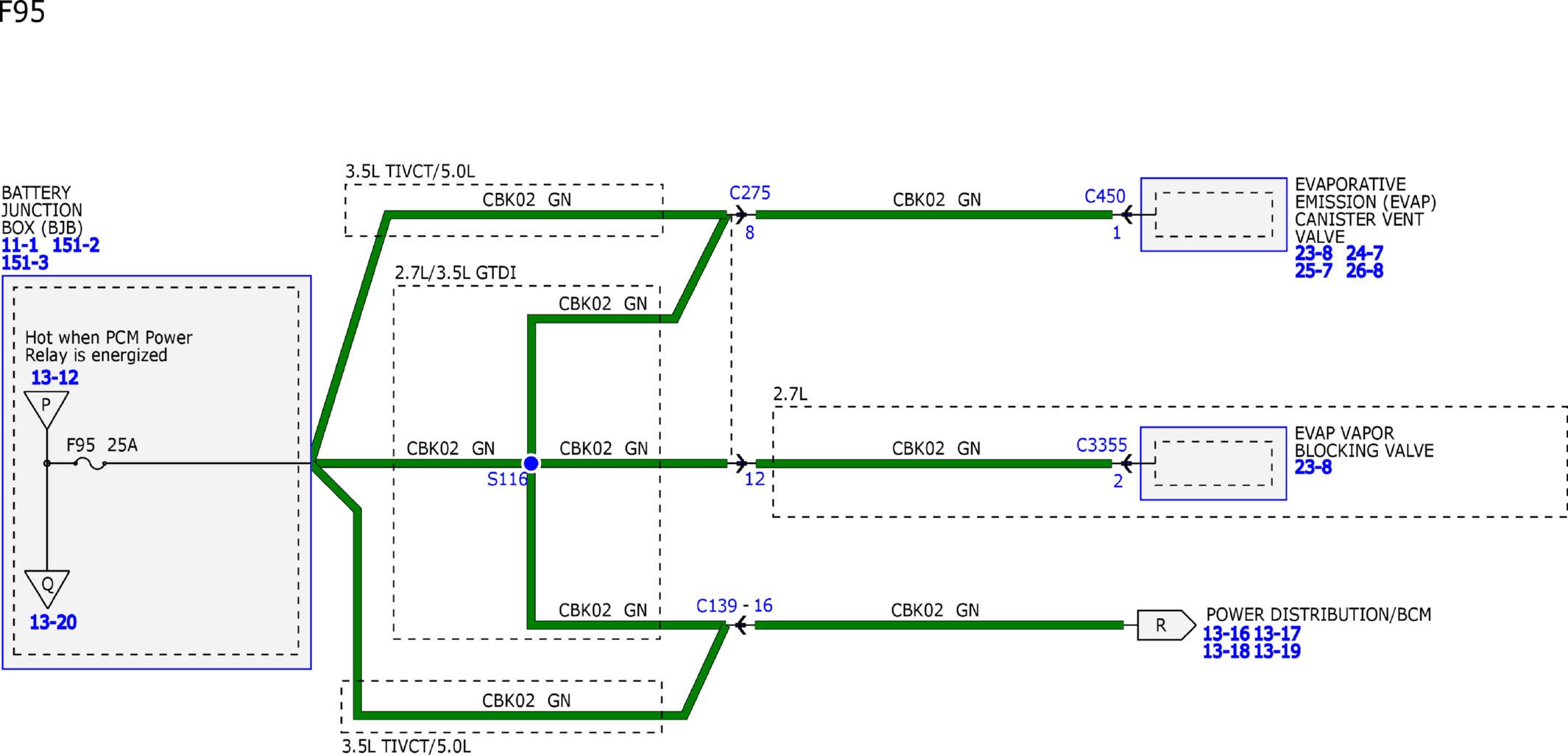

Fig 11: Power Distribution/BCM Wiring Diagram (11 of 56)
Courtesy of FORD MOTOR COMPANY

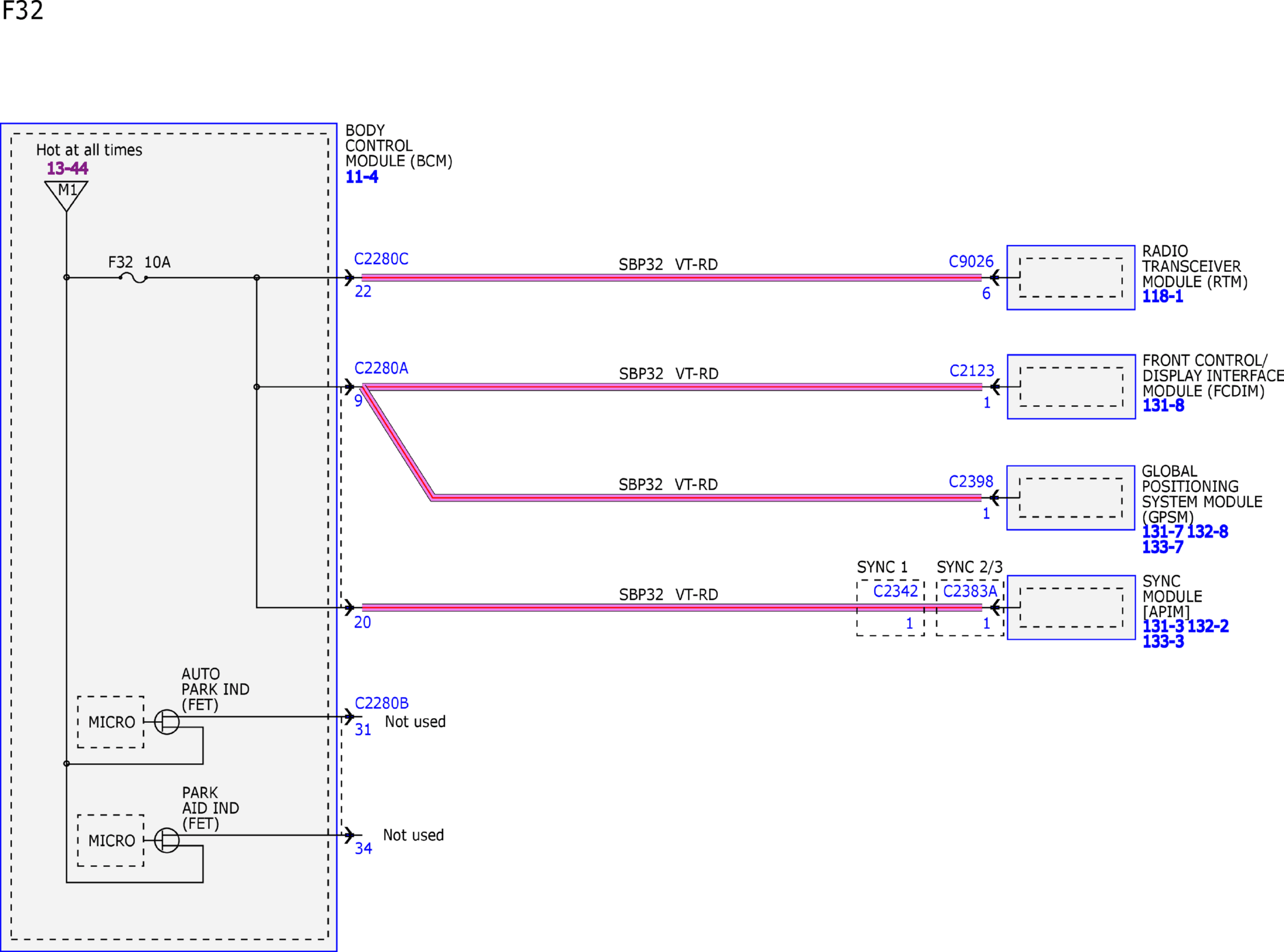

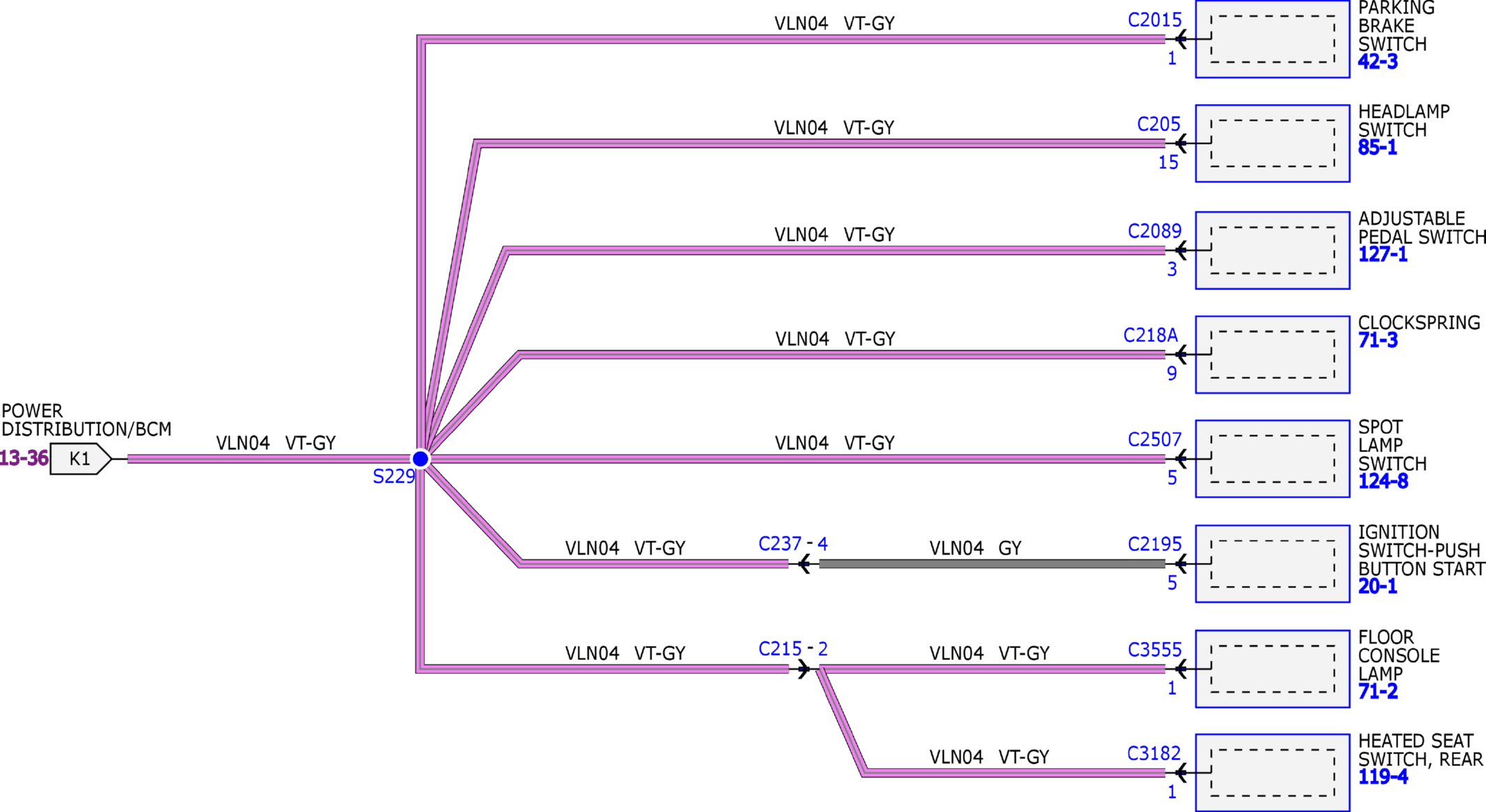

Fig 12: Power Distribution/BCM Wiring Diagram (12 of 56)
Courtesy of FORD MOTOR COMPANY

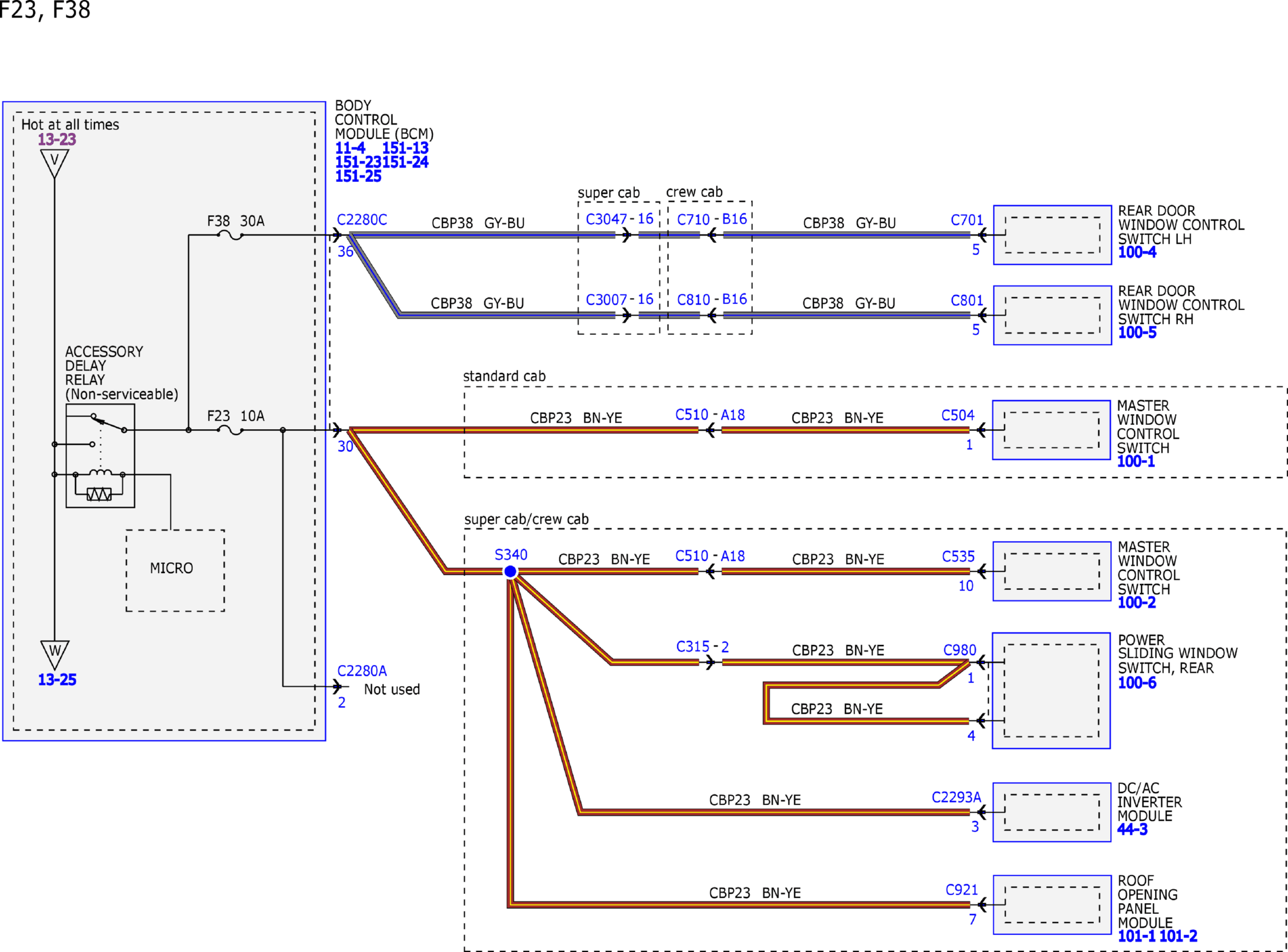

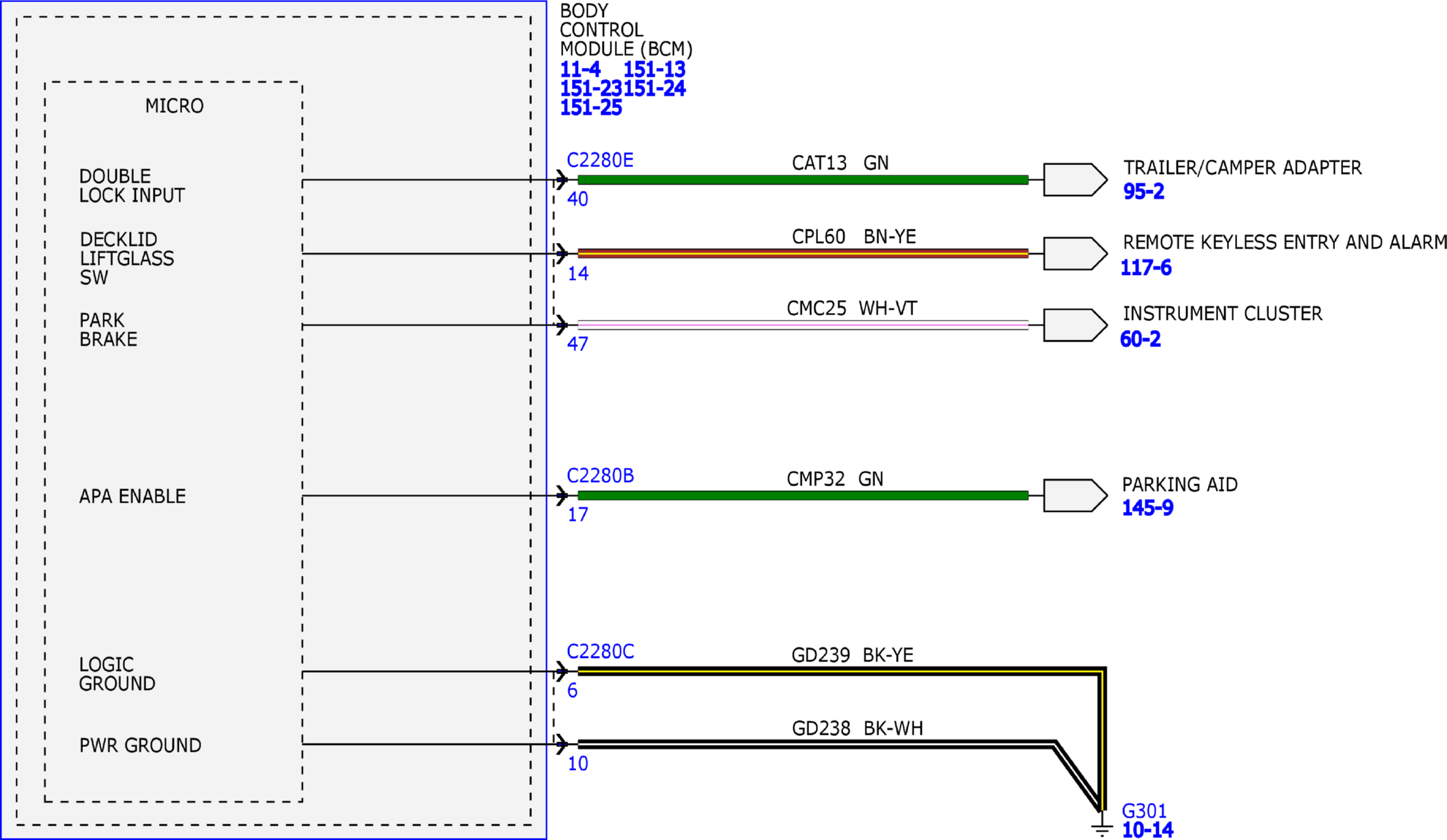

Fig 13: Power Distribution/BCM Wiring Diagram (13 of 56)
Courtesy of FORD MOTOR COMPANY

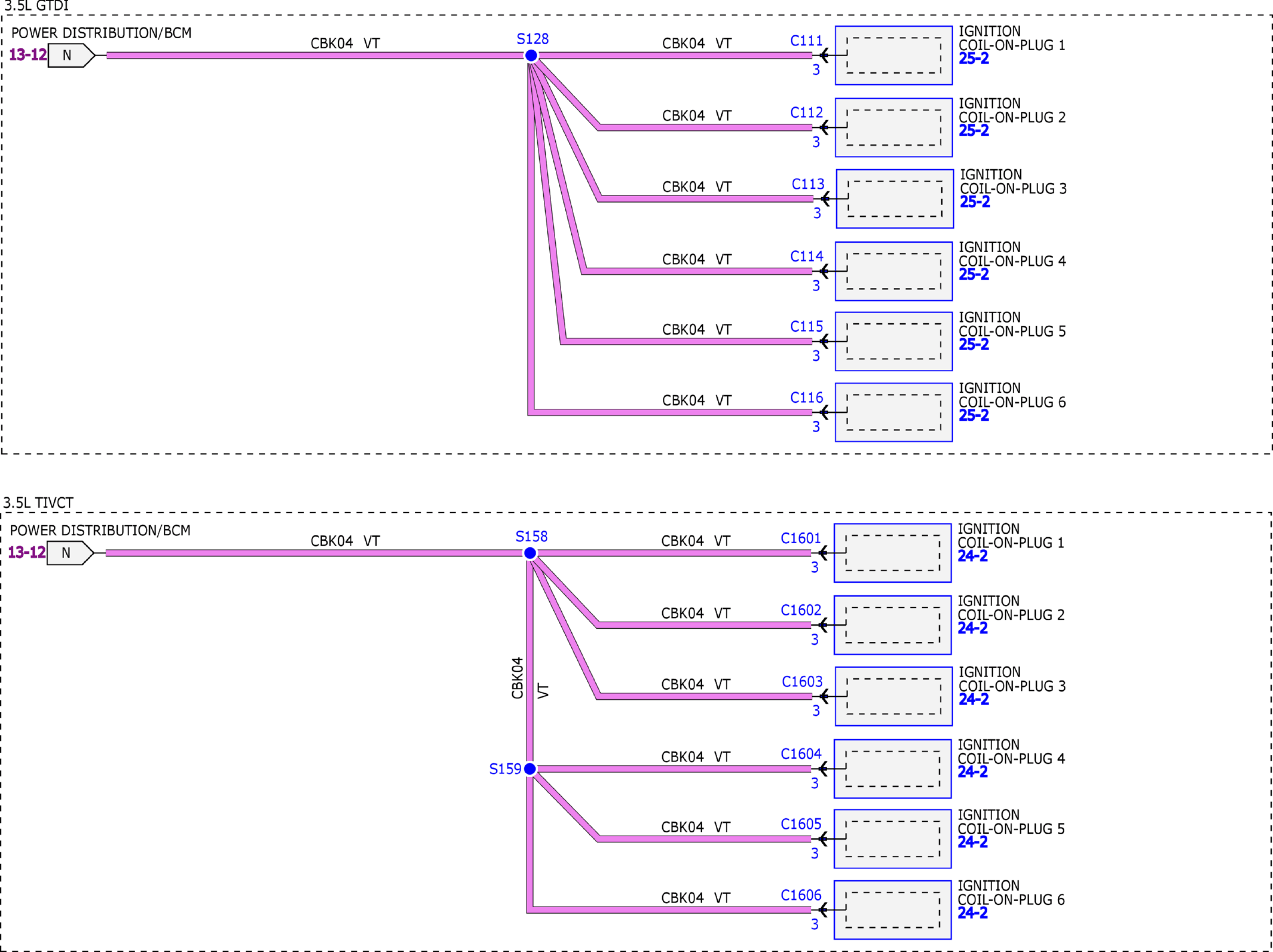

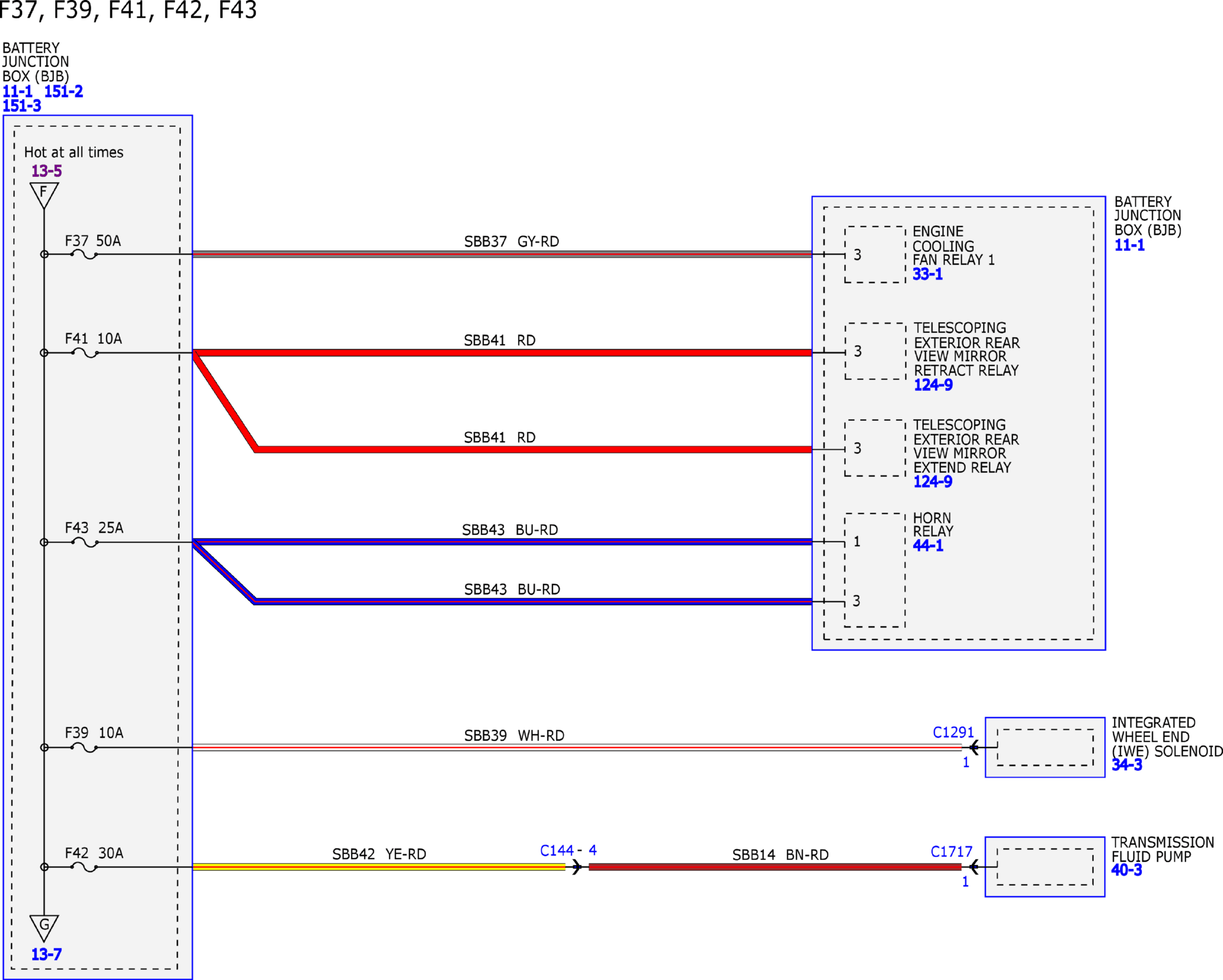

Fig 14: Power Distribution/BCM Wiring Diagram (14 of 56)
Courtesy of FORD MOTOR COMPANY

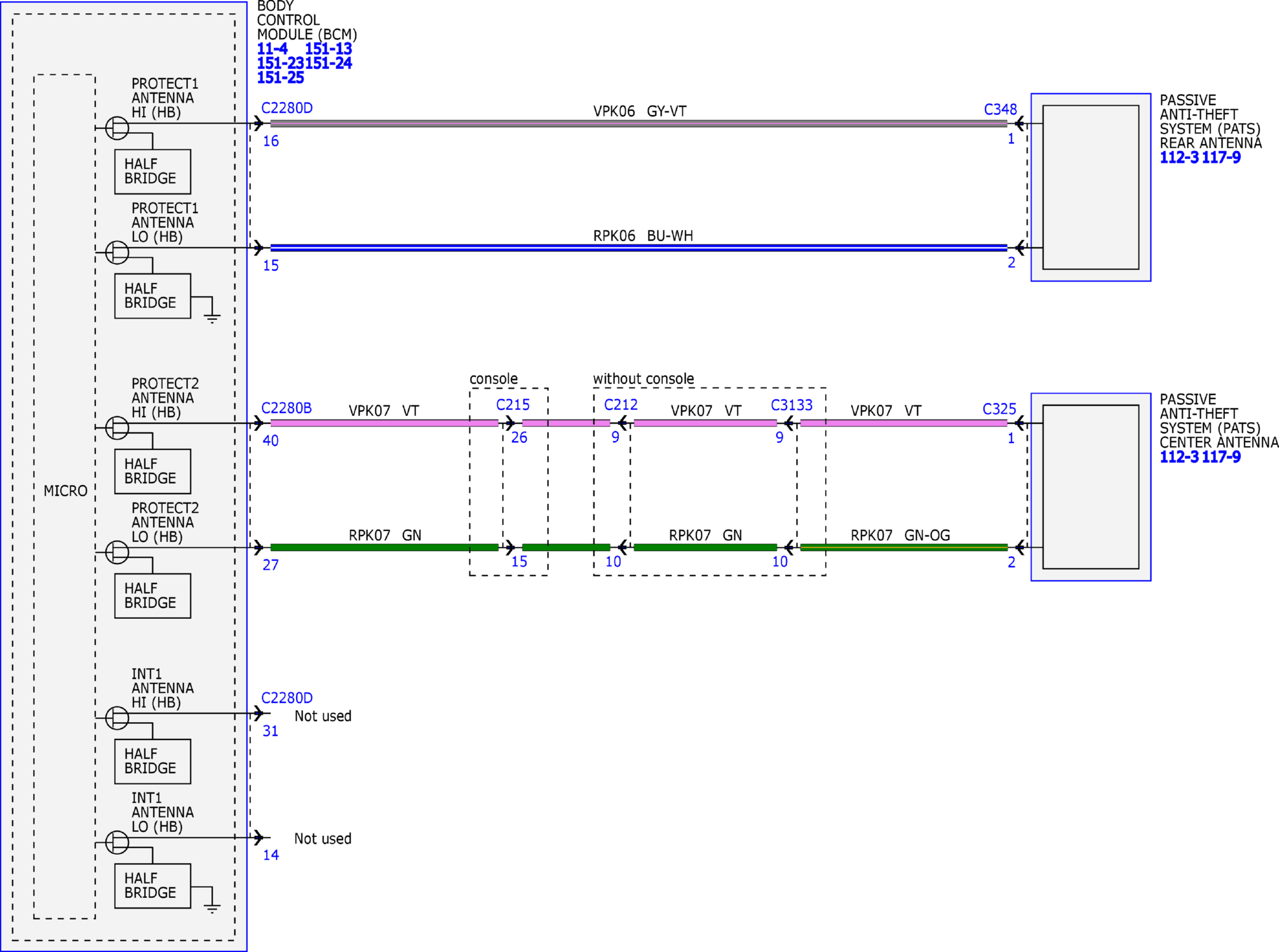

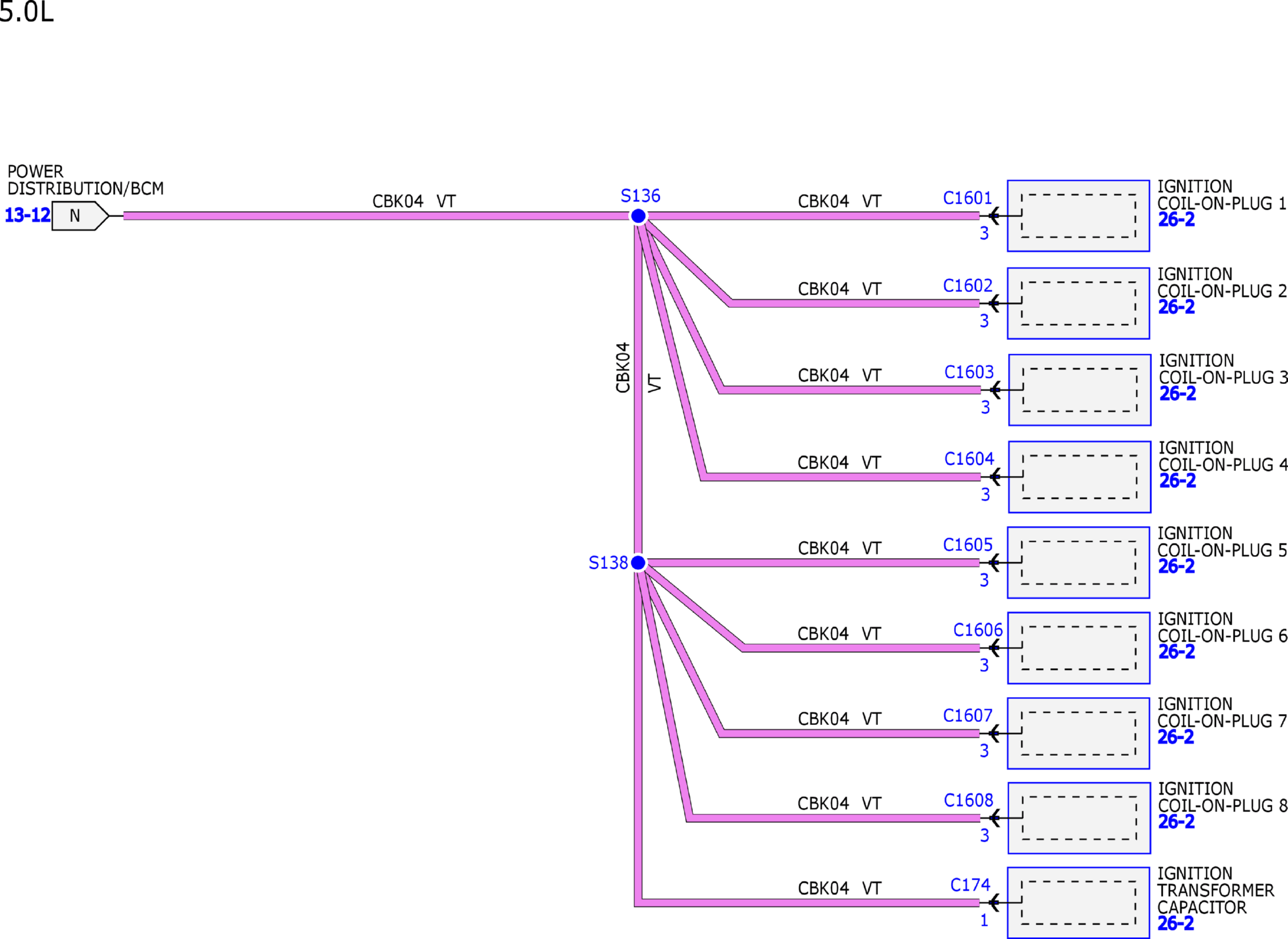

Fig 15: Power Distribution/BCM Wiring Diagram (15 of 56)
Courtesy of FORD MOTOR COMPANY

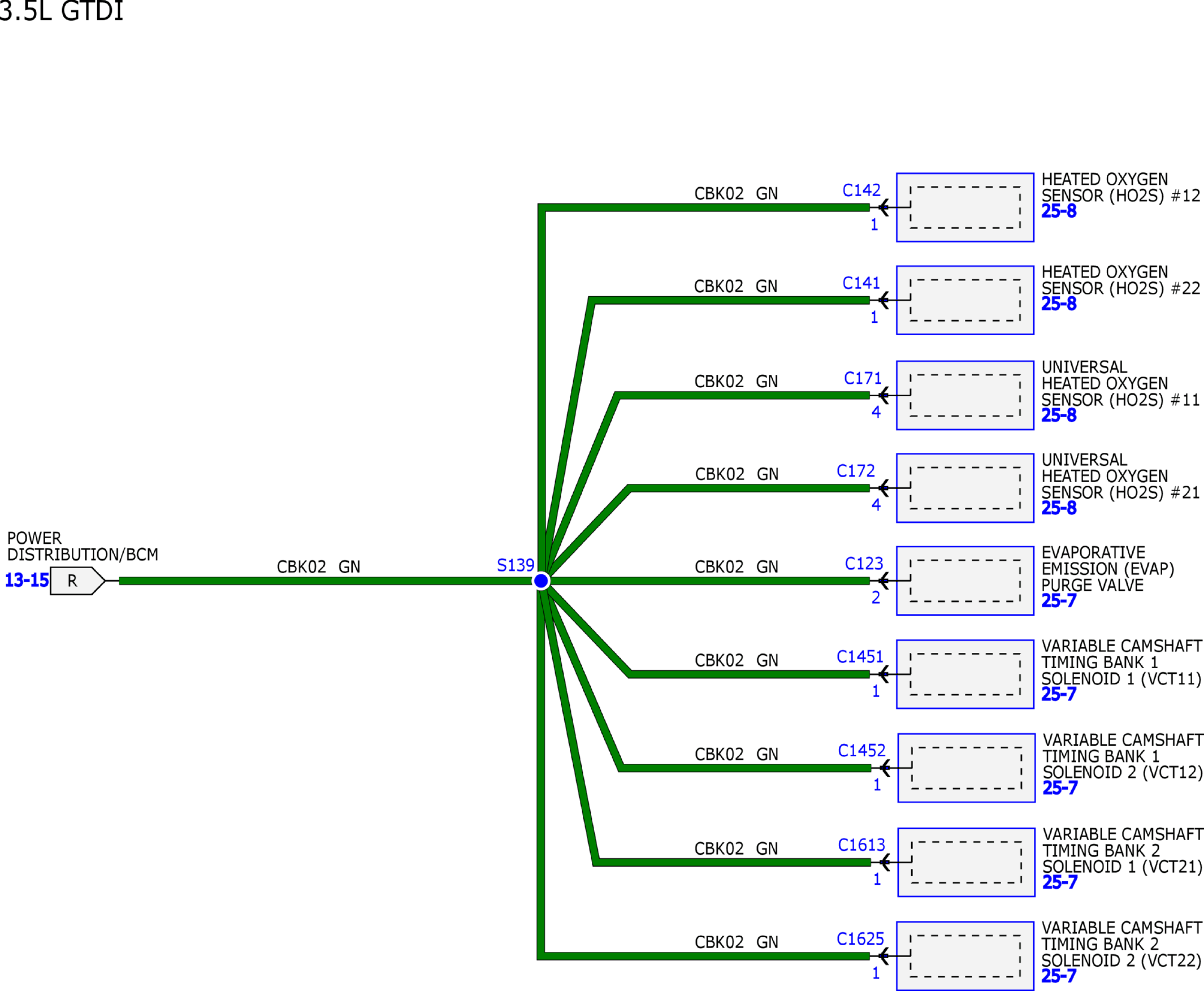

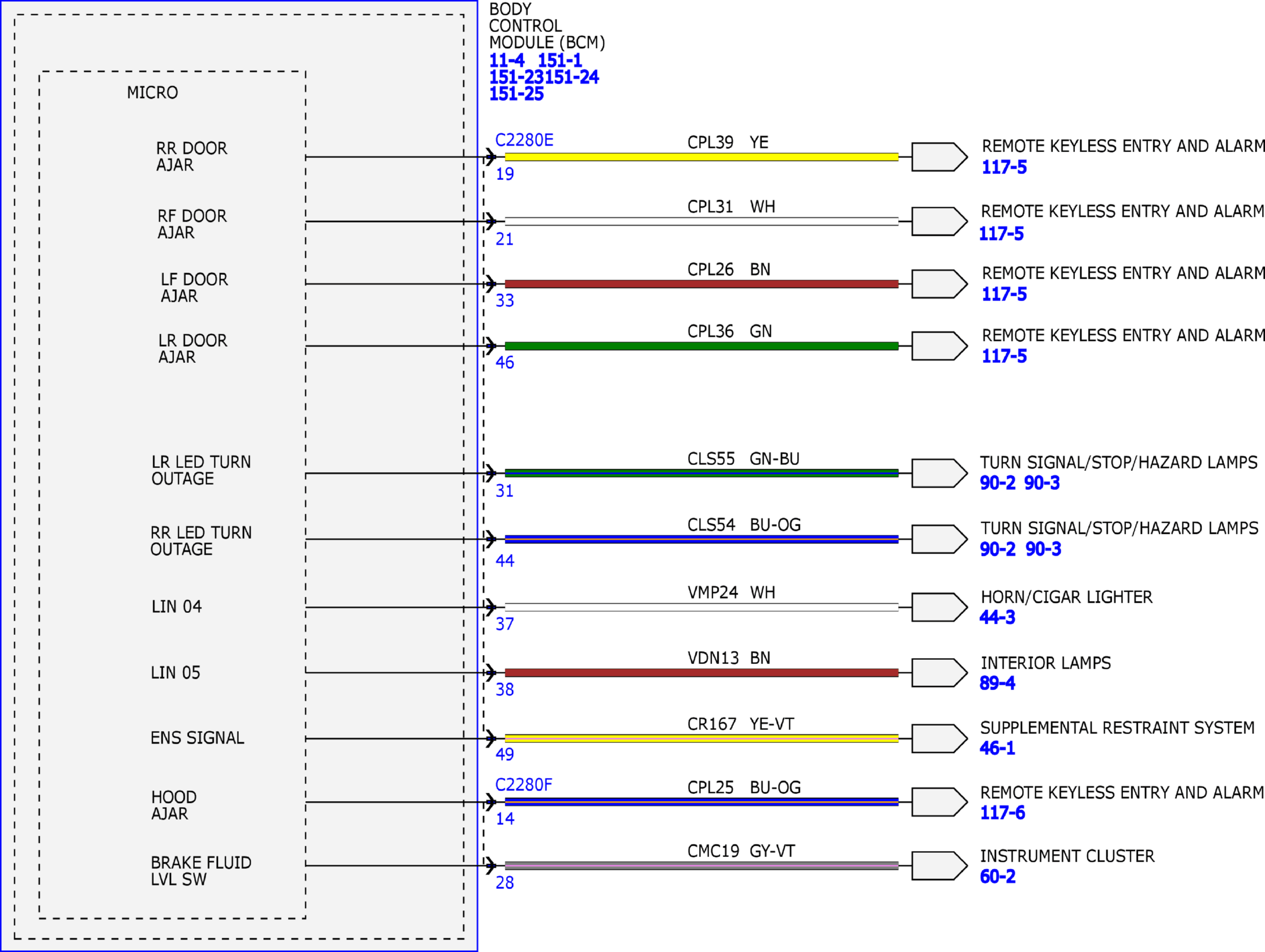

Fig 16: Power Distribution/BCM Wiring Diagram (16 of 56)
Courtesy of FORD MOTOR COMPANY
Fig 17: Power Distribution/BCM Wiring Diagram (17 of 56)
Courtesy of FORD MOTOR COMPANY
Fig 18: Power Distribution/BCM Wiring Diagram (18 of 56)
Courtesy of FORD MOTOR COMPANY
Fig 19: Power Distribution/BCM Wiring Diagram (19 of 56)
Courtesy of FORD MOTOR COMPANY
Fig 20: Power Distribution/BCM Wiring Diagram (20 of 56)
Courtesy of FORD MOTOR COMPANY
Fig 21: Power Distribution/BCM Wiring Diagram (21 of 56)
Courtesy of FORD MOTOR COMPANY
Fig 22: Power Distribution/BCM Wiring Diagram (22 of 56)
Courtesy of FORD MOTOR COMPANY
Fig 23: Power Distribution/BCM Wiring Diagram (23 of 56)
Courtesy of FORD MOTOR COMPANY
Fig 24: Power Distribution/BCM Wiring Diagram (24 of 56)
Courtesy of FORD MOTOR COMPANY
Fig 25: Power Distribution/BCM Wiring Diagram (25 of 56)
Courtesy of FORD MOTOR COMPANY
Fig 26: Power Distribution/BCM Wiring Diagram (26 of 56)
Courtesy of FORD MOTOR COMPANY
Fig 27: Power Distribution/BCM Wiring Diagram (27 of 56)
Courtesy of FORD MOTOR COMPANY
Fig 28: Power Distribution/BCM Wiring Diagram (28 of 56)
Courtesy of FORD MOTOR COMPANY
Fig 29: Power Distribution/BCM Wiring Diagram (29 of 56)
Courtesy of FORD MOTOR COMPANY
Fig 30: Power Distribution/BCM Wiring Diagram (30 of 56)
Courtesy of FORD MOTOR COMPANY
Fig 31: Power Distribution/BCM Wiring Diagram (31 of 56)
Courtesy of FORD MOTOR COMPANY
Fig 32: Power Distribution/BCM Wiring Diagram (32 of 56)
Courtesy of FORD MOTOR COMPANY
Fig 33: Power Distribution/BCM Wiring Diagram (33 of 56)
Courtesy of FORD MOTOR COMPANY
Fig 34: Power Distribution/BCM Wiring Diagram (34 of 56)
Courtesy of FORD MOTOR COMPANY
Fig 35: Power Distribution/BCM Wiring Diagram (35 of 56)
Courtesy of FORD MOTOR COMPANY
Fig 36: Power Distribution/BCM Wiring Diagram (36 of 56)
Courtesy of FORD MOTOR COMPANY
Fig 37: Power Distribution/BCM Wiring Diagram (37 of 56)
Courtesy of FORD MOTOR COMPANY
Fig 38: Power Distribution/BCM Wiring Diagram (38 of 56)
Courtesy of FORD MOTOR COMPANY
Fig 39: Power Distribution/BCM Wiring Diagram (39 of 56)
Courtesy of FORD MOTOR COMPANY
Fig 40: Power Distribution/BCM Wiring Diagram (40 of 56)
Courtesy of FORD MOTOR COMPANY
Fig 41: Power Distribution/BCM Wiring Diagram (41 of 56)
Courtesy of FORD MOTOR COMPANY
Fig 42: Power Distribution/BCM Wiring Diagram (42 of 56)
Courtesy of FORD MOTOR COMPANY
Fig 43: Power Distribution/BCM Wiring Diagram (43 of 56)
Courtesy of FORD MOTOR COMPANY
Fig 44: Power Distribution/BCM Wiring Diagram (44 of 56)
Courtesy of FORD MOTOR COMPANY
Fig 45: Power Distribution/BCM Wiring Diagram (45 of 56)
Courtesy of FORD MOTOR COMPANY
Fig 46: Power Distribution/BCM Wiring Diagram (46 of 56)
Courtesy of FORD MOTOR COMPANY
Fig 47: Power Distribution/BCM Wiring Diagram (47 of 56)
Courtesy of FORD MOTOR COMPANY
Fig 48: Power Distribution/BCM Wiring Diagram (48 of 56)
Courtesy of FORD MOTOR COMPANY
Fig 49: Power Distribution/BCM Wiring Diagram (49 of 56)
Courtesy of FORD MOTOR COMPANY
Fig 50: Power Distribution/BCM Wiring Diagram (50 of 56)
Courtesy of FORD MOTOR COMPANY
Fig 51: Power Distribution/BCM Wiring Diagram (51 of 56)
Courtesy of FORD MOTOR COMPANY
Fig 52: Power Distribution/BCM Wiring Diagram (52 of 56)
Courtesy of FORD MOTOR COMPANY
Fig 53: Power Distribution/BCM Wiring Diagram (53 of 56)
Courtesy of FORD MOTOR COMPANY
Fig 54: Power Distribution/BCM Wiring Diagram (54 of 56)
Courtesy of FORD MOTOR COMPANY
Fig 55: Power Distribution/BCM Wiring Diagram (55 of 56)
Courtesy of FORD MOTOR COMPANY
Fig 56: Power Distribution/BCM Wiring Diagram (56 of 56)
Courtesy of FORD MOTOR COMPANY
