Transaxle Support Insulator - Anti-Roll: Removal

All vehicles

1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
2. Remove the screws and the underbody cover.

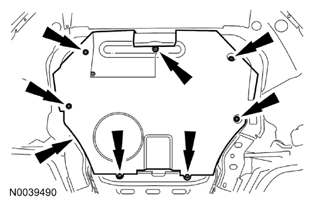

   Fig 1: Locating Underbody Cover And Screws

   Courtesy of FORD MOTOR CO.

   Vehicles equipped with a 3.0L engine

3. Remove the Y-pipe. For additional information, refer to EXHAUST SYSTEM .

   All vehicles

4. Remove the 2 bolts and remove the roll restrictor.

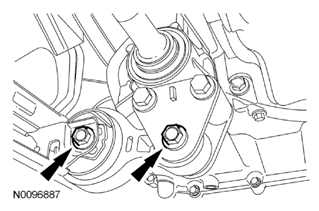

   Fig 2: Locating Roll Restrictor Bolts

   Courtesy of FORD MOTOR CO.
