Transaxle Support Insulator - Anti-Roll: Notes

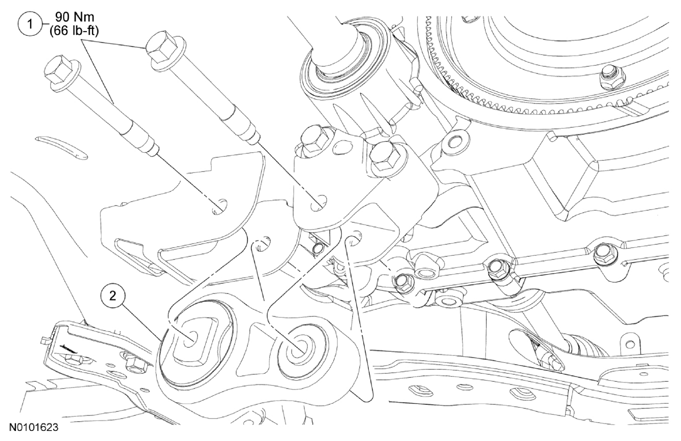

Fig 1: Roll Restrictor And Bolts With Fastener Tightening Torque Specifications Table
G08023408Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W711575 Roll restrictor bolts
2 6P082 Roll restrictor
