Transaxle Support Insulator - 3.0L: Notes

SPECIAL TOOLS

	Lifting Bracket, Engine 303-050 (T70P-6000)
	Support Bar, Engine 303-F072
	Universal Adapter Brackets 014-0001

MATERIAL SPECIFICATIONS

Item	Specification
Threadlock and Sealer TA-25	WSK-M2G351-A5

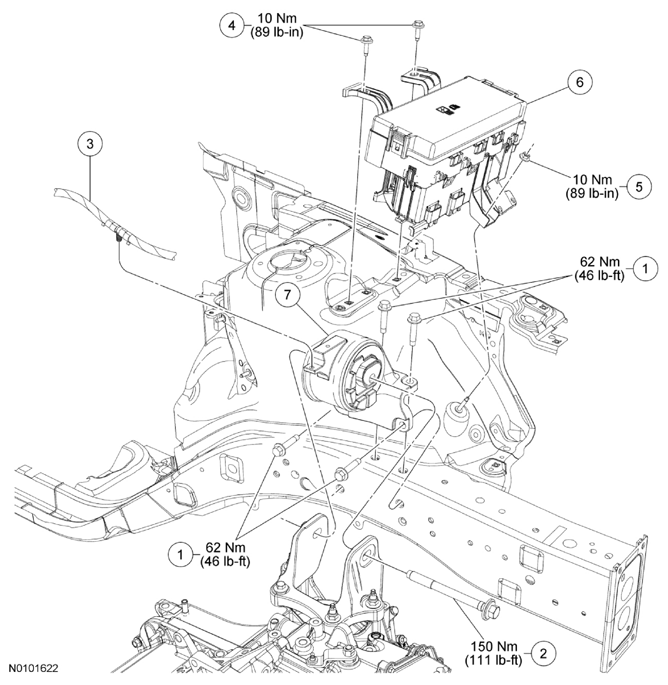

Fig 1: Exploded View Of Transaxle Support Insulator With Torque Specifications - 3.0L

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W709234	Transaxle support insulator-to-frame rail bolts
2	W711873	Transaxle support insulator through bolt
3	13A506	Wiring harness retainer
4	W702434	Power Distribution Box (PDB) bolts
5	N806543	PDB nut
6	180101	PDB
7	6F020	Transaxle support insulator
