Selector Lever Bezel: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: Be sure that the override lever is inserted in the override lever guide or the shift interlock override button will not work correctly.

NOTE: Selector lever removed for clarity.

Install the selector lever bezel on the selector lever.
- Position the override lever in the override lever guide.
- Make sure that the 3 locking tabs are locked in place.

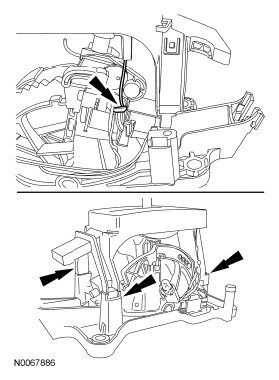

  Fig 1: Locating Locking Tabs
  Courtesy of FORD MOTOR CO.
Connect selector lever bezel electrical connector.

Fig 2: Locating Selector Lever Bezel Electrical Connector
Courtesy of FORD MOTOR CO.
Install the selector lever knob on the selector lever and install the screws.

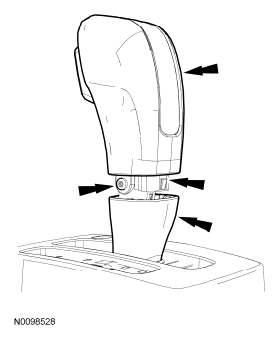

Fig 3: Removing/Installing Selector Lever Knob, Bezel With Screws
Courtesy of FORD MOTOR CO.
Slide the selector lever knob bezel up and install it on the selector lever knob.

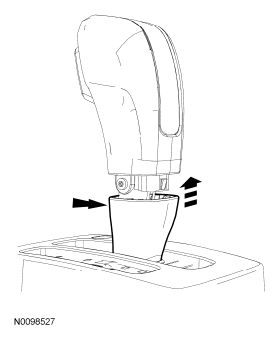

Fig 4: Sliding Selector Lever Knob Bezel Upwards
Courtesy of FORD MOTOR CO.
Position the utility tray in place and connect the electrical connector.

Fig 5: Locating Center Console Electrical Connector
Courtesy of FORD MOTOR CO.
Install the utility tray on the center console.

Fig 6: Center Console Utility Tray Location
Courtesy of FORD MOTOR CO.
Install the center console trim panel.

Fig 7: Center Console Trim Panel Location
Courtesy of FORD MOTOR CO.
Install the selector lever trim ring.

Fig 8: View Of Selector Lever Trim Ring
Courtesy of FORD MOTOR CO.
