2.5L Hybrid

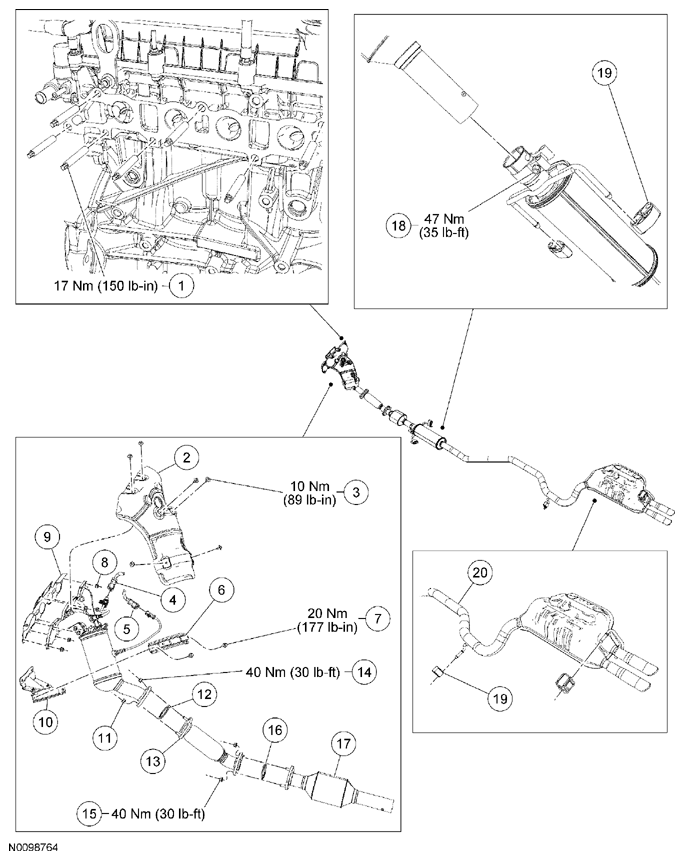

Fig 1: Exploded View Of Exhaust System With Torque Specification (2.5L Hybrid)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W704474	Catalytic converter manifold stud (7 required)
2	5K282	Catalytic converter manifold shield
3	W503921	Catalytic converter manifold shield bolt (6 required)
4	14A464	Heated Oxygen Sensor (HO2S) electrical connector
5	14A464	Catalyst Monitor Sensor (CMS) electrical connector
6	5K291	Catalytic converter manifold shield bracket
7	W500021	Catalytic converter manifold shield bracket bolt (2 required)
8	W708176	Catalytic converter manifold nut (7 required)
9	9448	Catalytic converter manifold gasket
10	-	Catalytic converter manifold bracket
11	5G236	Catalytic converter manifold
12	9451	Gasket
13	5G203	Exhaust flexible pipe
14	W520414	Catalytic converter-to-exhaust flexible pipe nut (2 required)
15	W520414	Exhaust flexible pipe-to-catalytic converter nut (2 required)
16	9451	Gasket
17	5E212	Catalytic converter
18	5221	Torca® clamp
19	5F262	Muffler and tail pipe isolator (4 required)
20	5C257	Muffler and tail pipe
