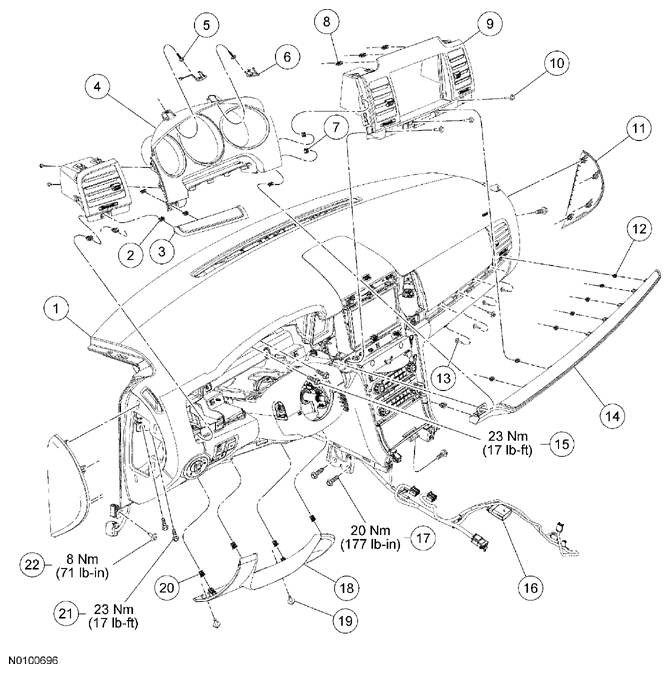

| 1 |
04320 |
Instrument panel |
| 2 |
- |
LH instrument panel finish panel clip (part of 044A91) (2 required) |
| 3 |
044A91 |
LH instrument panel finish panel |
| 4 |
044D70 |
Instrument cluster finish panel |
| 5 |
W707628 |
Instrument cluster finish panel screw (2 required) |
| 6 |
- |
Instrument cluster finish panel screw cover (part of 044D70) (2 required) |
| 7 |
- |
Instrument cluster finish panel retaining clip (part of 044D70) (3 required) |
| 8 |
- |
Center instrument panel finish panel retaining clip (part of 04302) (3 required) |
| 9 |
04302 |
Center instrument panel finish panel |
| 10 |
W707628 |
Center instrument panel finish panel screw (3 required) |
| 11 |
04480 RH/04481 LH |
Instrument panel side finish panel |
| 12 |
- |
Instrument panel finish molding retaining clip (part of 044A90) (8 required) |
| 13 |
W707607 |
Instrument panel finish molding screw (4 required) |
| 14 |
044A90 |
Instrument panel finish molding |
| 15 |
W701834 |
Instrument Cluster (IC) opening bolt (2 required) |
| 16 |
14401 |
Instrument panel harness connector |
| 17 |
N811479 |
Instrument panel center support bolt (3 required) |
| 18 |
011201 |
Steering column opening trim panel |
| 19 |
N808453 |
Steering column opening trim panel screw (2 required) |
| 20 |
- |
Steering column opening trim panel retaining clip (4 required) |
| 21 |
W701834 |
Instrument panel side bolt (3 required) |
| 22 |
W708268 |
Instrument panel lower bolt (2 required) |
