Wheel Speed Sensor - Rear, Front Wheel Drive (FWD): Notes

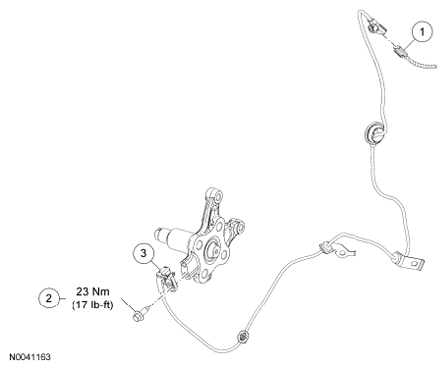

Fig 1: Wheel Speed Sensor And Bolt With Fastener Tightening Torque Specifications Table -- Rear, Front Wheel Drive (FWD)
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Wheel speed sensor electrical connector (part of 14A227) |
| 2 | W500222 | Wheel speed sensor bolt |
| 3 | 2C186 RH/2C187 LH | Wheel speed sensor |
