Window control switch, passenger front - Fusion: Schematic

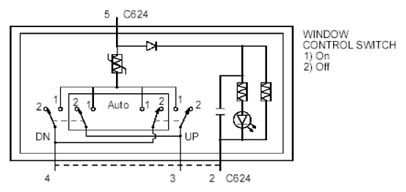

Fig 1: Window Control Switch, Passenger Front Schematic - Fusion

G07935861

Courtesy of FORD MOTOR CO.
