Master window control switch - MKZ: Schematic

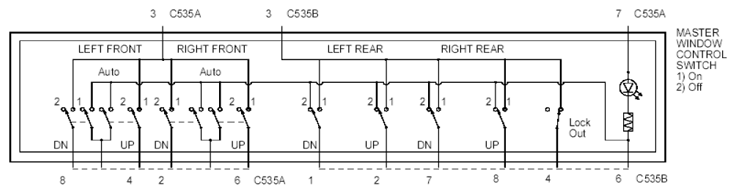

Fig 1: Master Window Control Switch Schematic - MKZ

G07935859

Courtesy of FORD MOTOR CO.
