OEM Ground Distribution: Grounds: G303

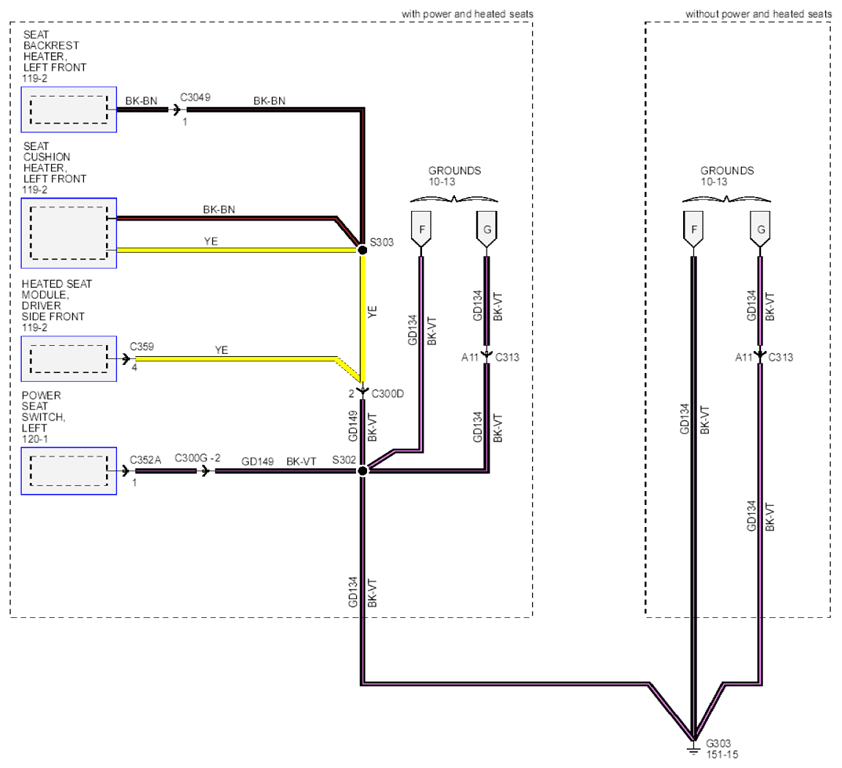

Fig 1: Ground Circuit Diagram - G303 (1 Of 2)

G07918676

Courtesy of FORD MOTOR CO.

Fig 2: Ground Circuit Diagram - G303 (2 Of 2)

G07918677

Courtesy of FORD MOTOR CO.
