OEM Ground Distribution: Grounds: G104

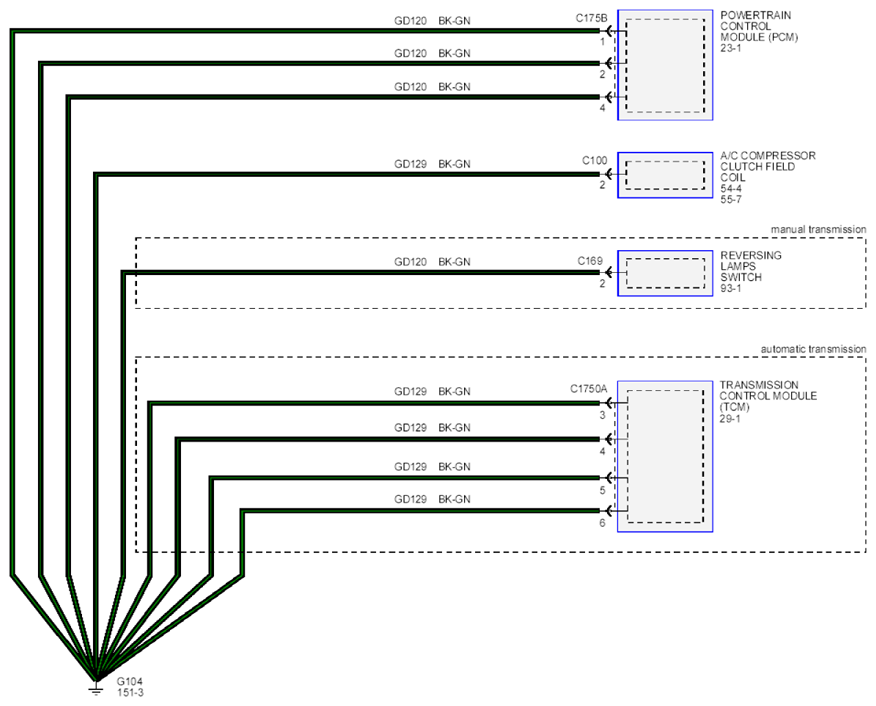

Fig 1: Ground Circuit Diagram - G104

G07918666

Courtesy of FORD MOTOR CO.
