Component Location Views

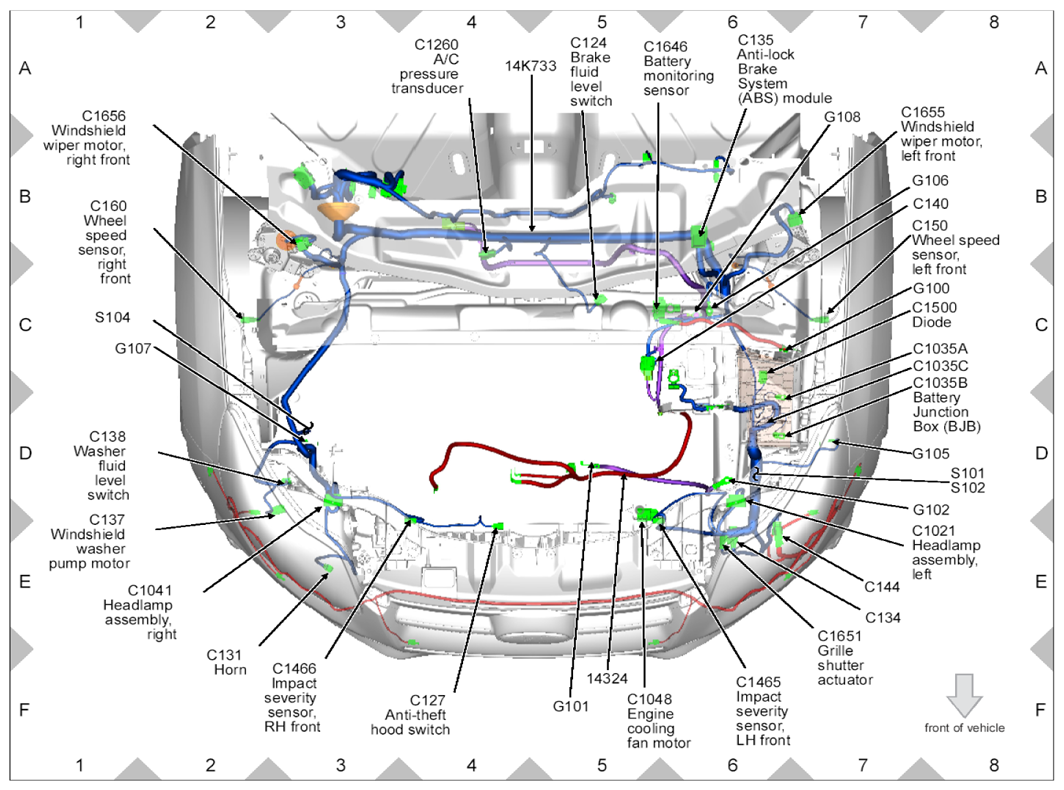

Fig 1: Engine Compartment Wiring Harness Connectors Location (1 Of 2)

G07918210

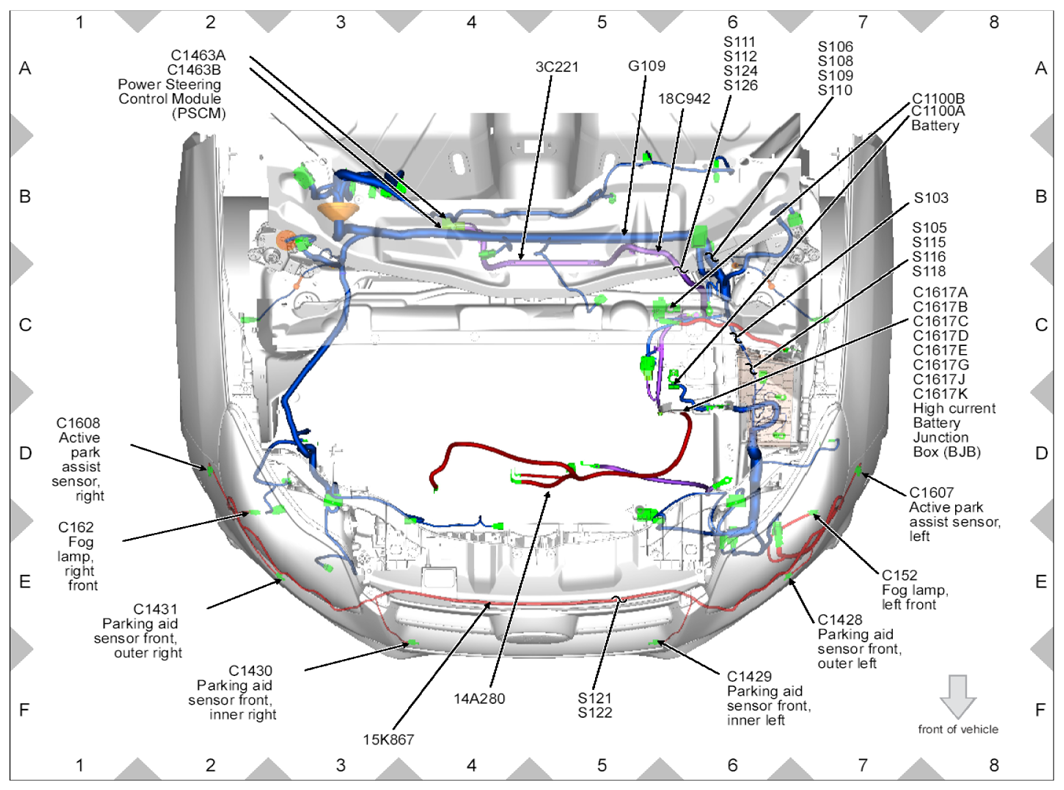

Fig 2: Engine Compartment Wiring Harness Connectors Location (2 Of 2)

G07918211

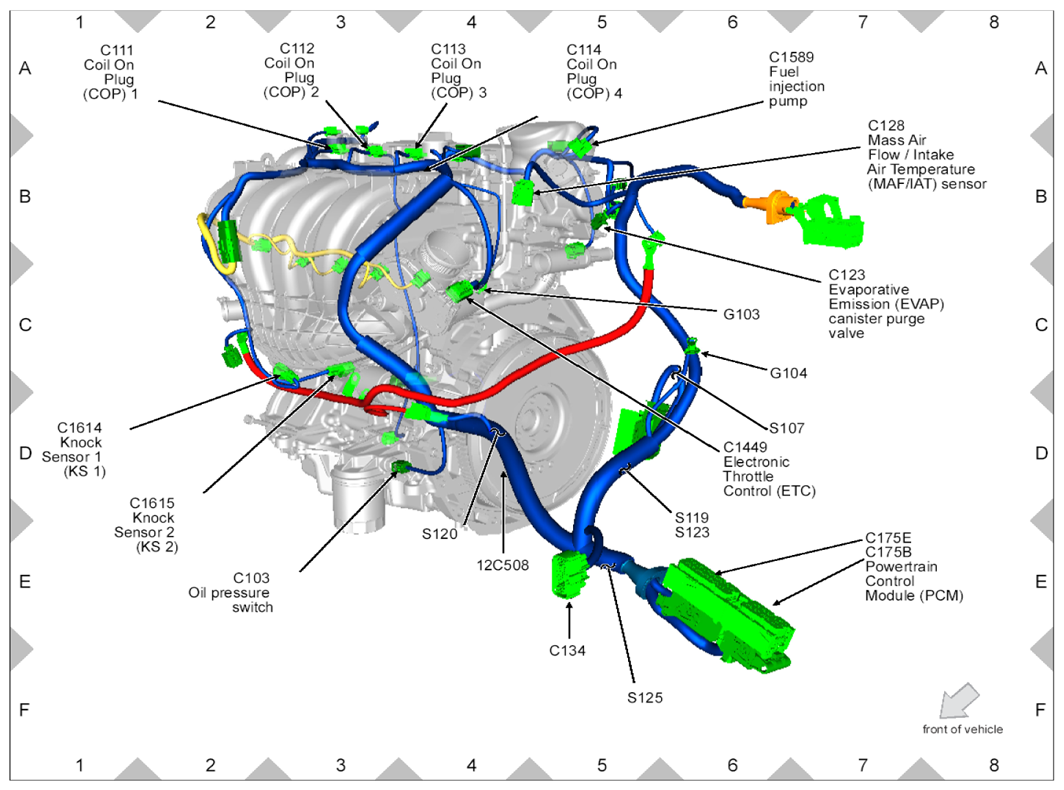

Fig 3: Engine Wiring Harness Connectors Location (1 Of 3)

G07918212

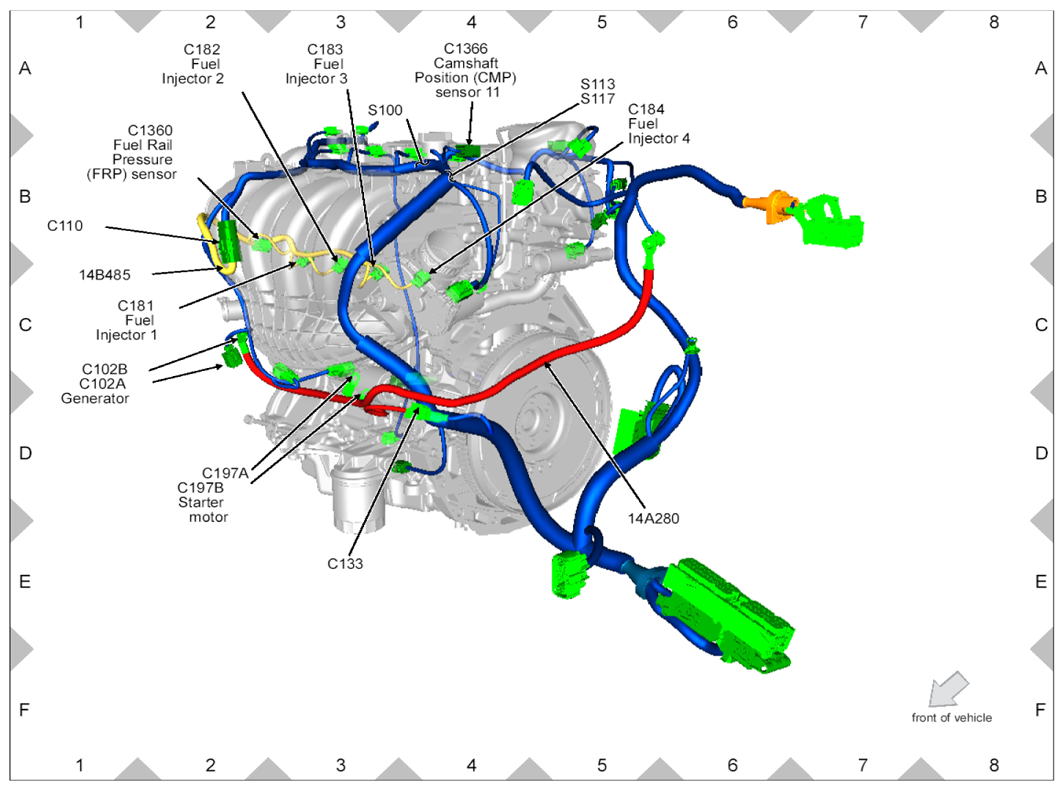

Fig 4: Engine Wiring Harness Connectors Location (2 Of 3)

G07918213

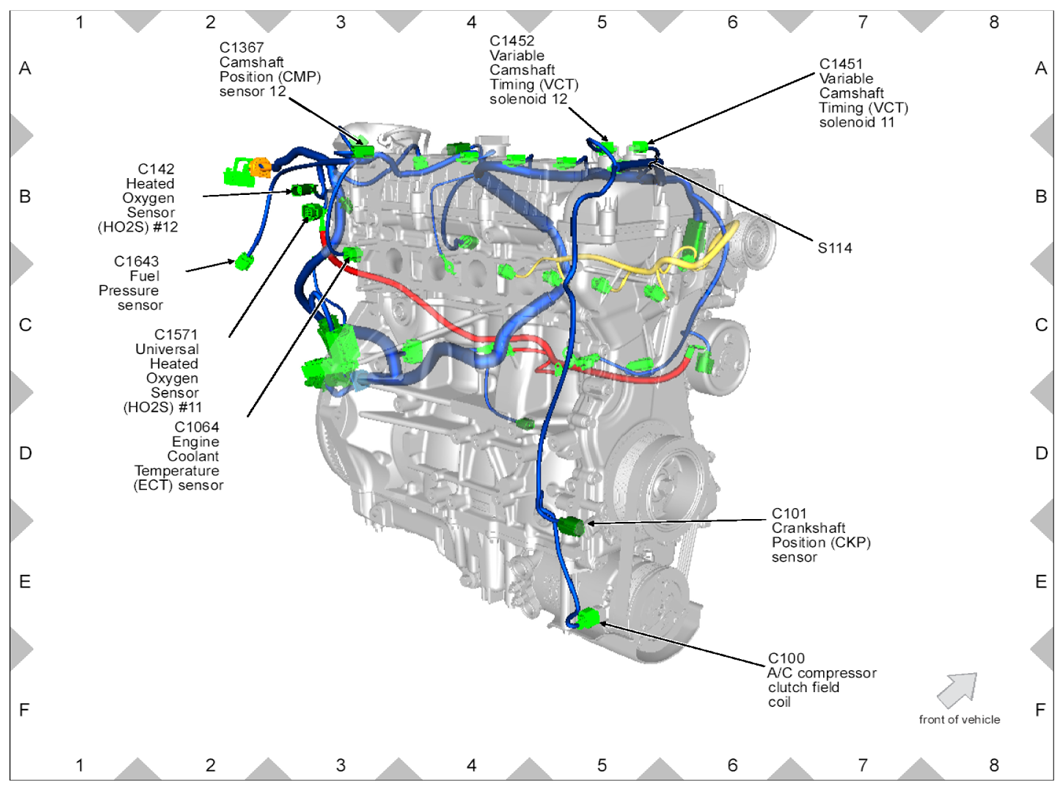

Fig 5: Engine Wiring Harness Connectors Location (3 Of 3)

G07918214

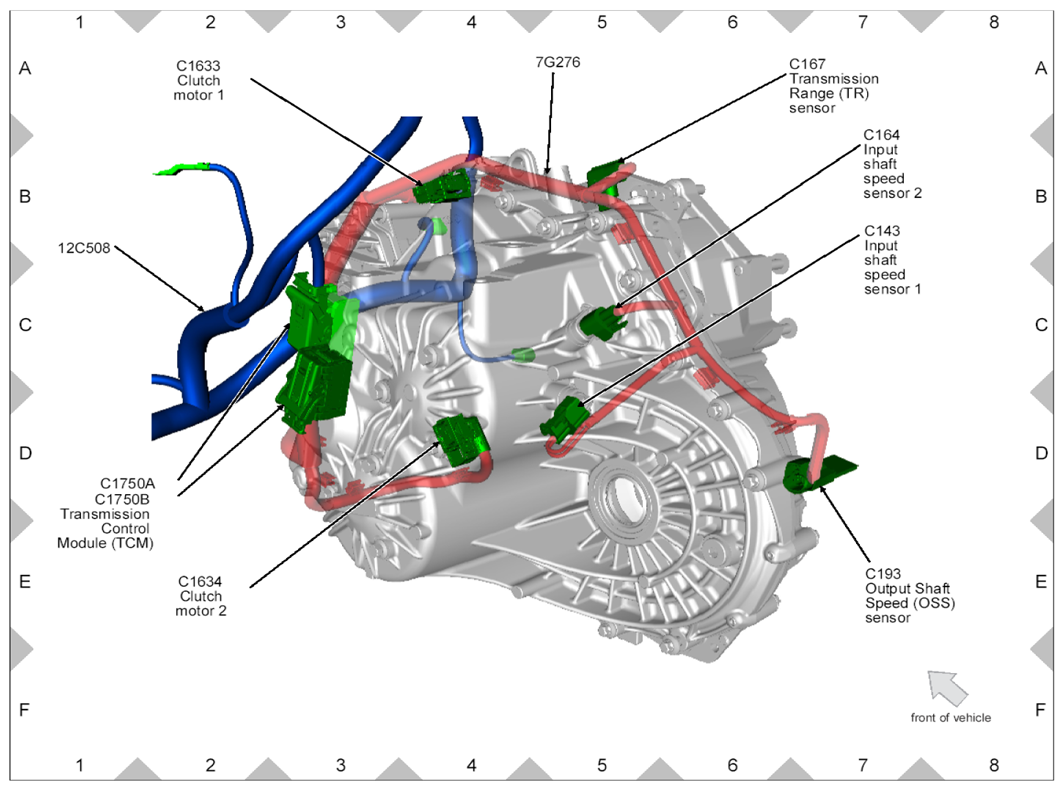

Fig 6: Transmission Wiring Harness Connectors Location (1 Of 2)

G07918215

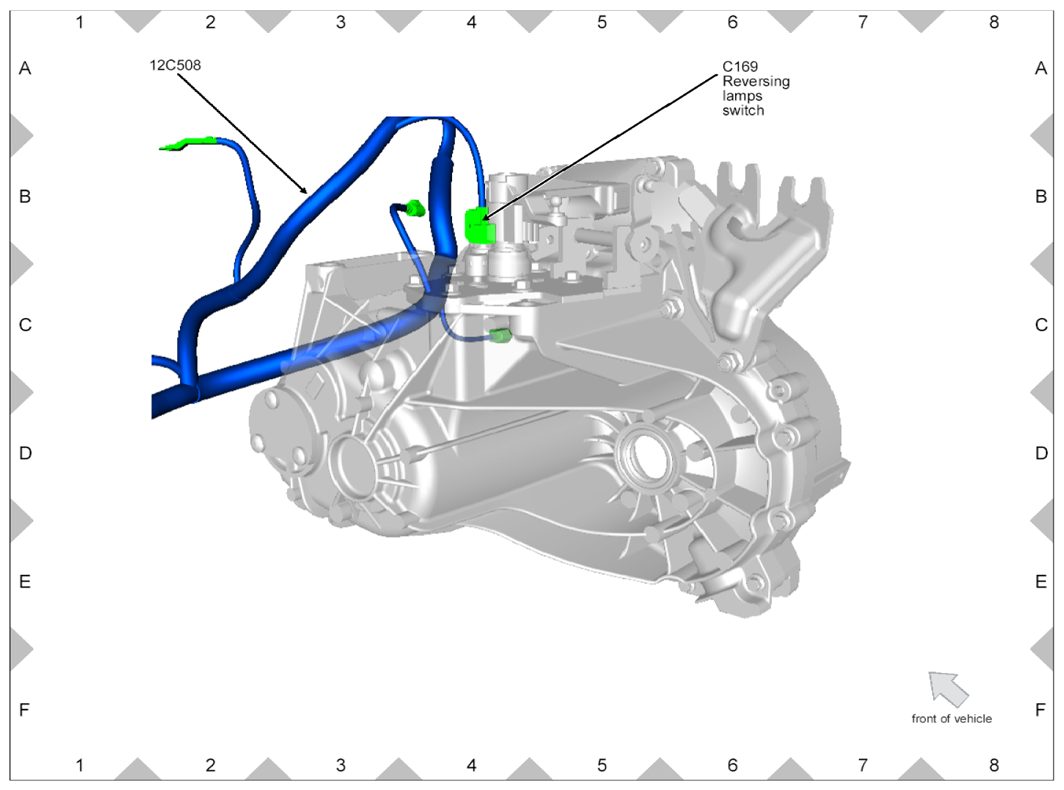

Fig 7: Transmission Wiring Harness Connectors Location (2 Of 2)

G07918216

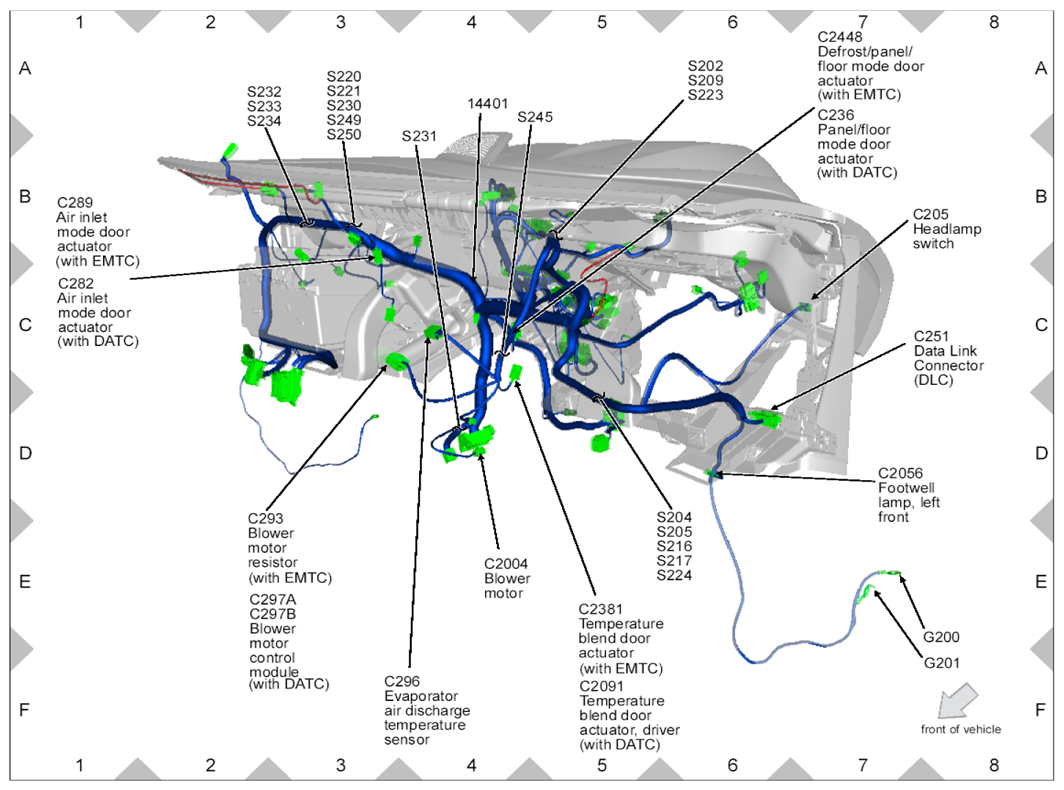

Fig 8: Dash Board Wiring Harness Connectors Location - Back Side (1 Of 2)

G07918217

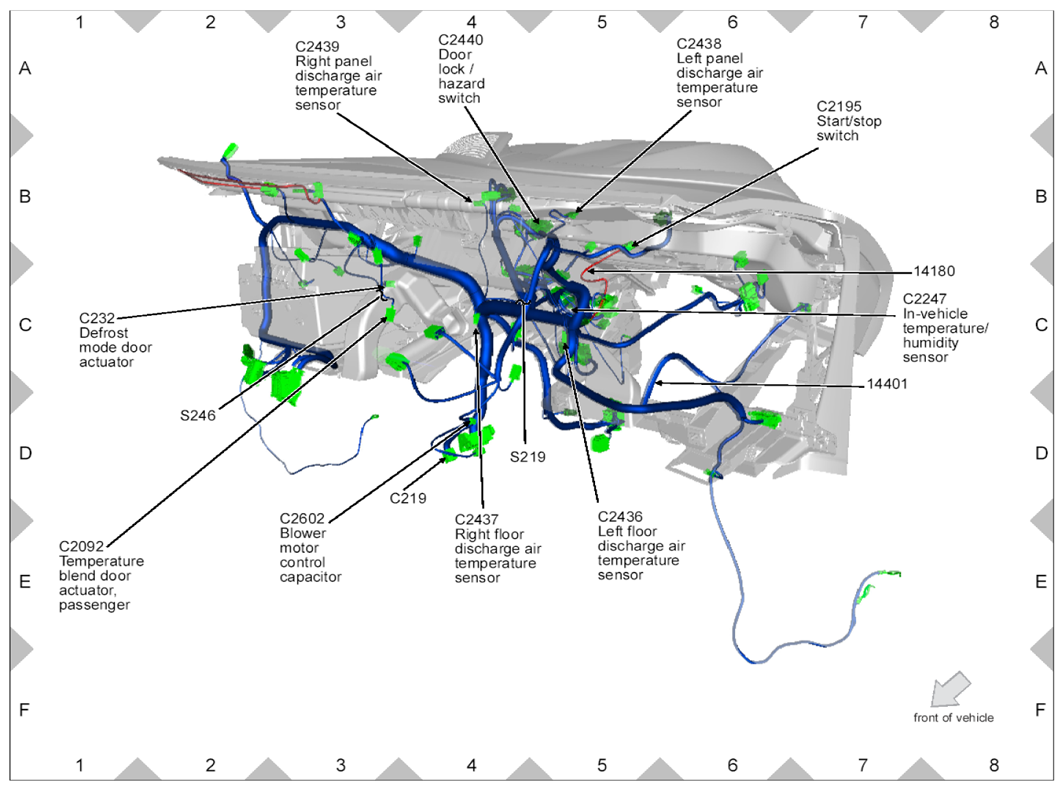

Fig 9: Dash Board Wiring Harness Connectors Location - Back Side (2 Of 2)

G07918218

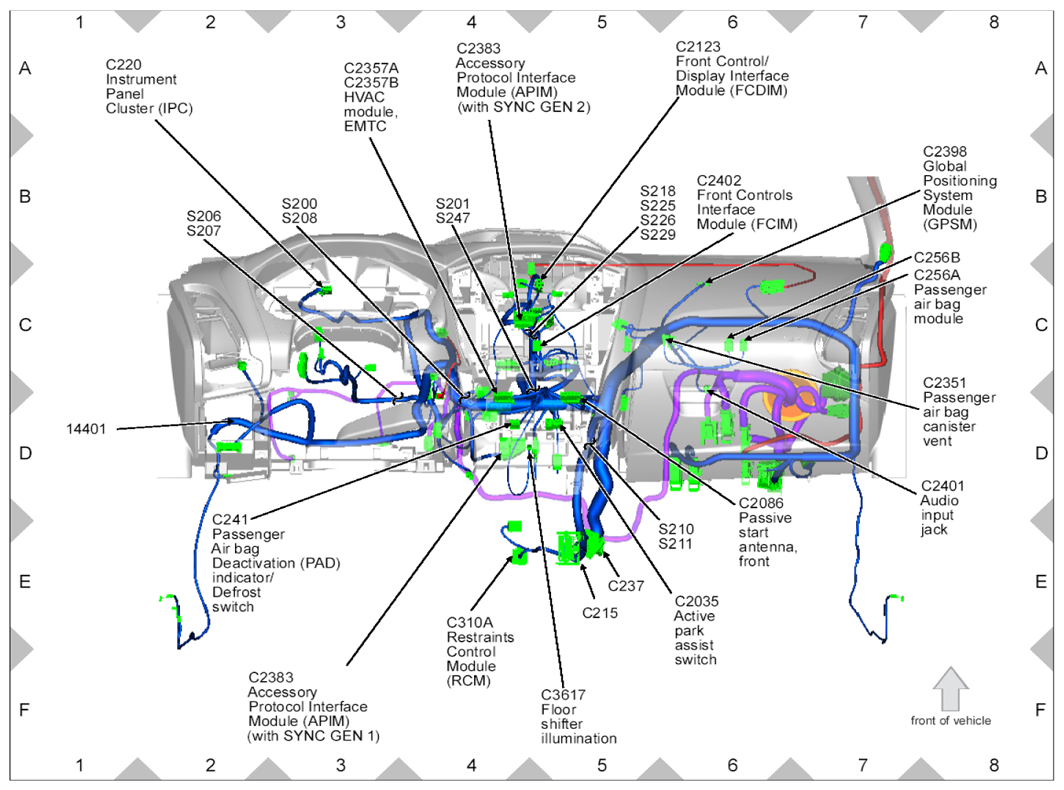

Fig 10: Dash Board Wiring Harness Connectors Location (1 Of 2)

G07918219

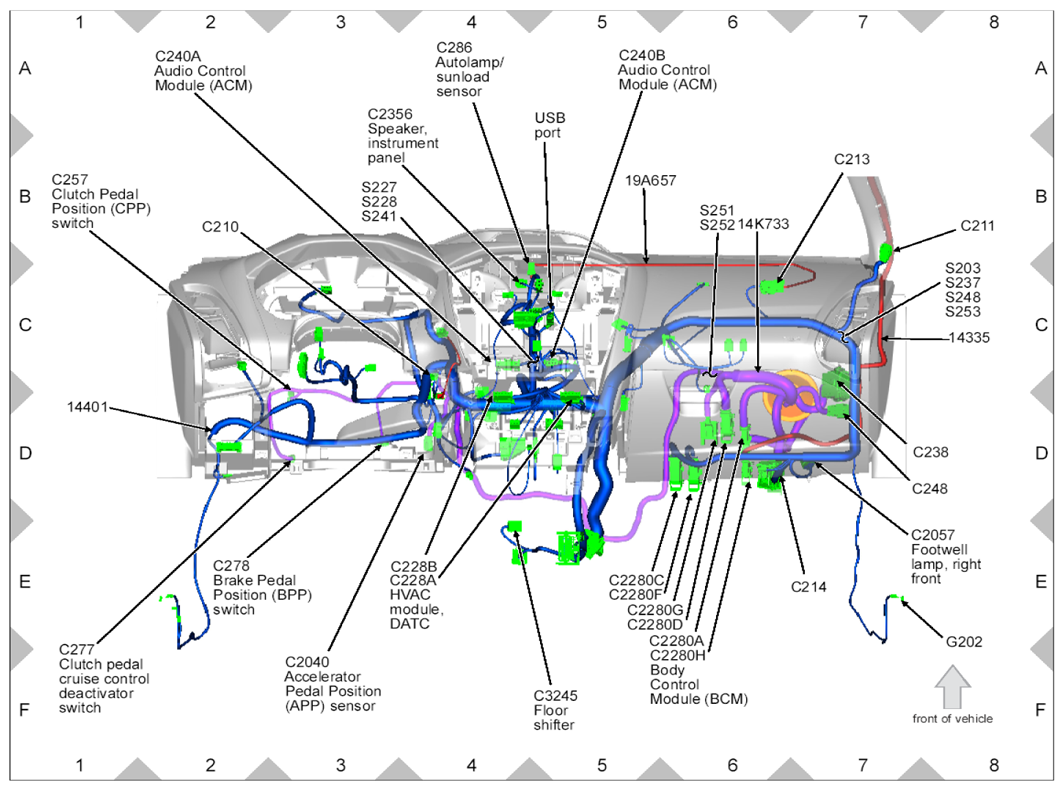

Fig 11: Dash Board Wiring Harness Connectors Location (2 Of 2)

G07918220

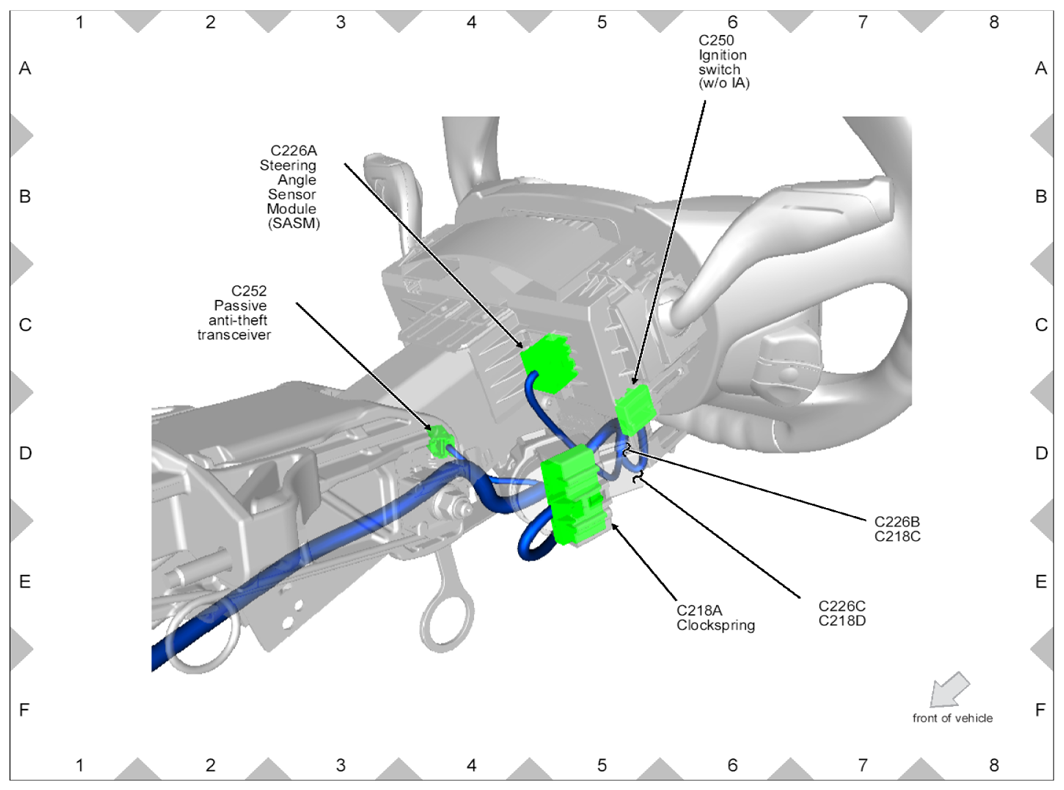

Fig 12: Steering Column Wiring Harness Connectors Location

G07918221

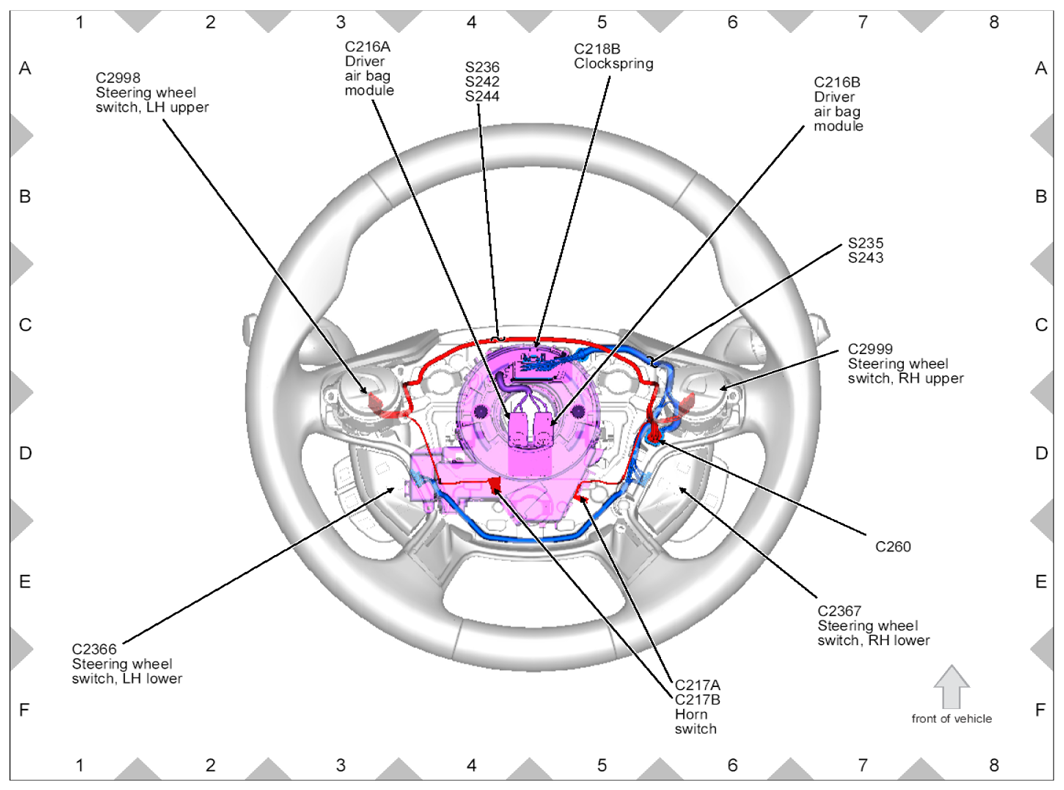

Fig 13: Steering Wheel Wiring Harness Connectors Location

G07918222

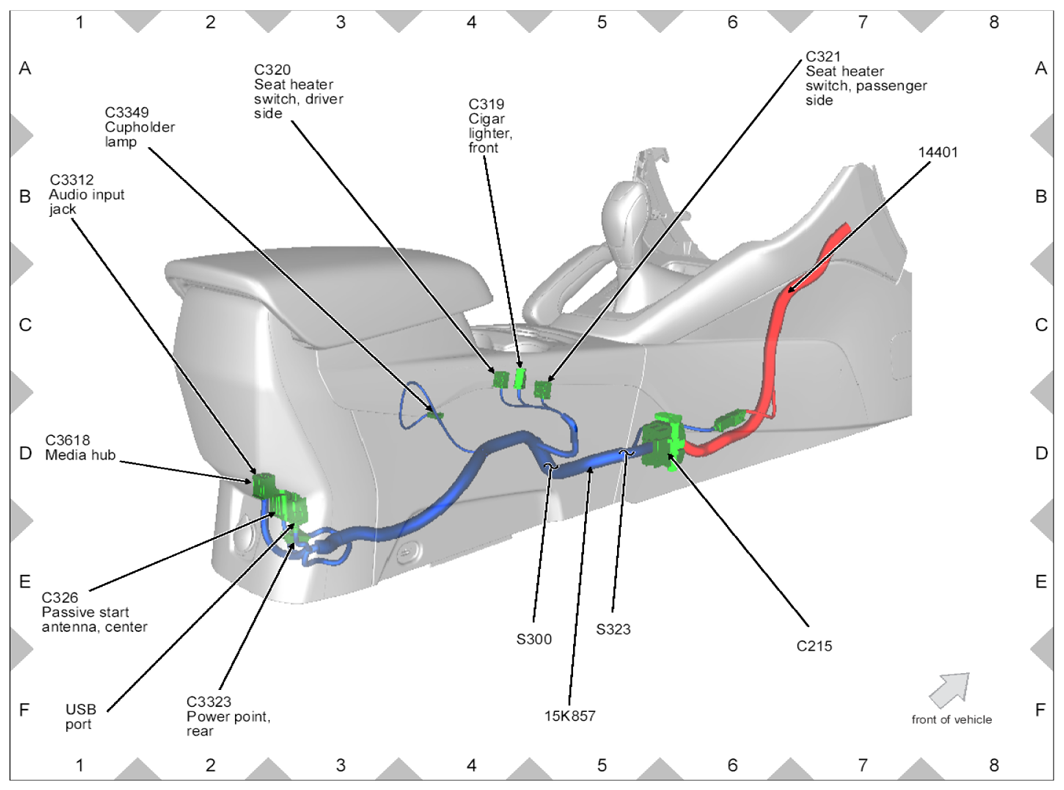

Fig 14: Center Console Wiring Harness Connectors Location

G07918223

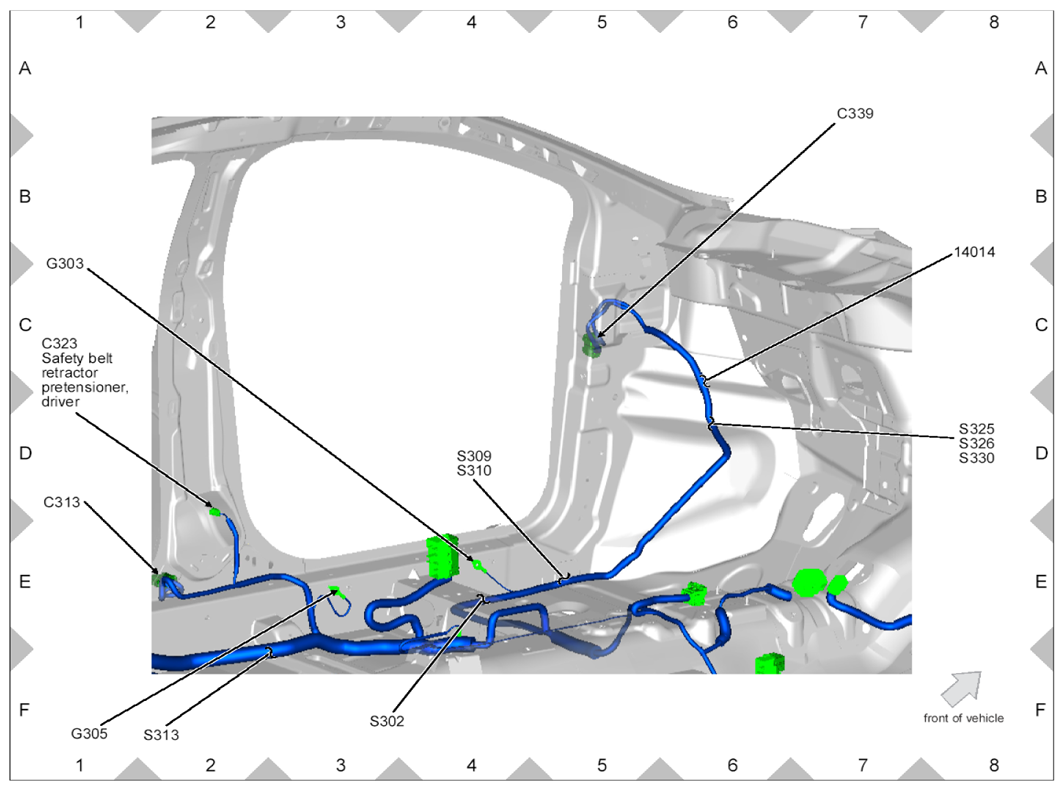

Fig 15: LH Front Compartment Wiring Harness Connectors Location

G07918224

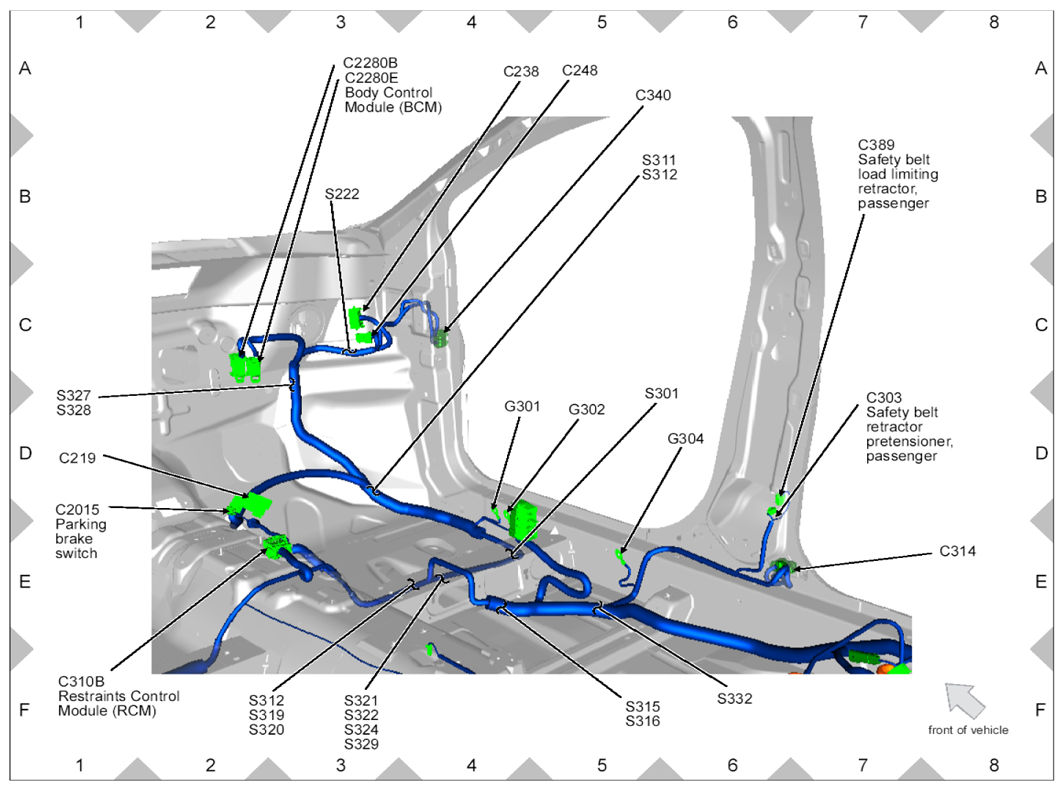

Fig 16: RH Front Compartment Wiring Harness Connectors Location

G07918225

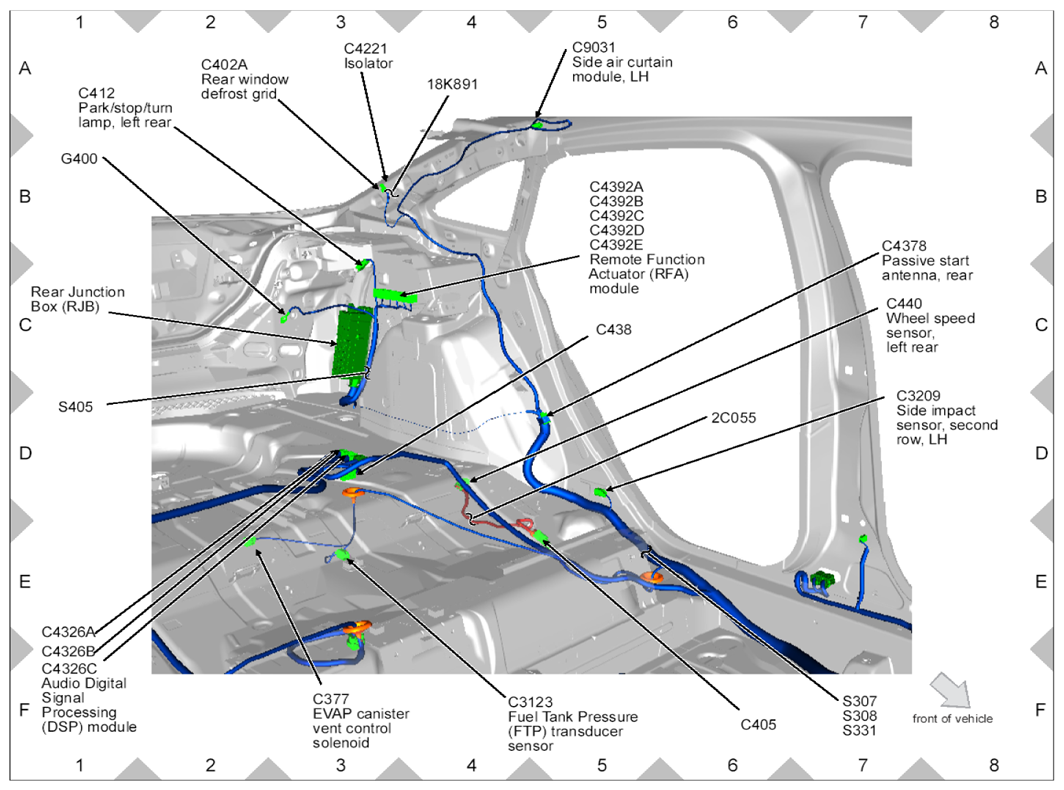

Fig 17: LH Rear Compartment Wiring Harness Connectors Location (1 Of 2)

G07918226

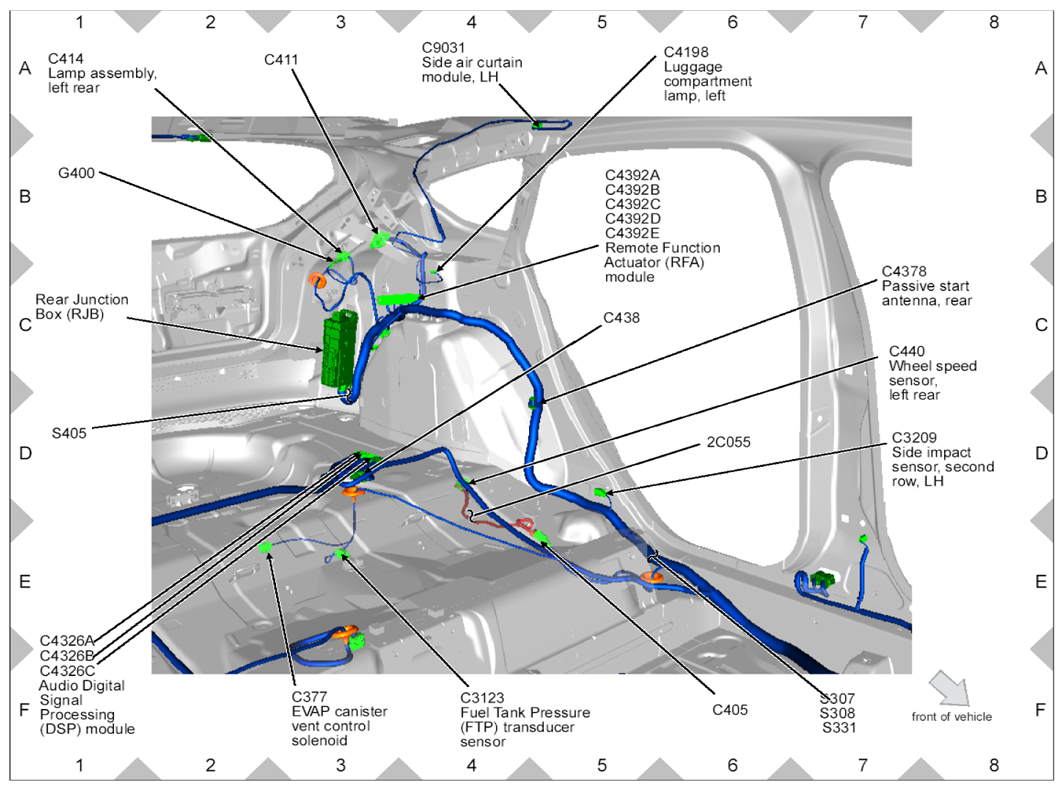

Fig 18: LH Rear Compartment Wiring Harness Connectors Location (2 Of 2)

G07918227

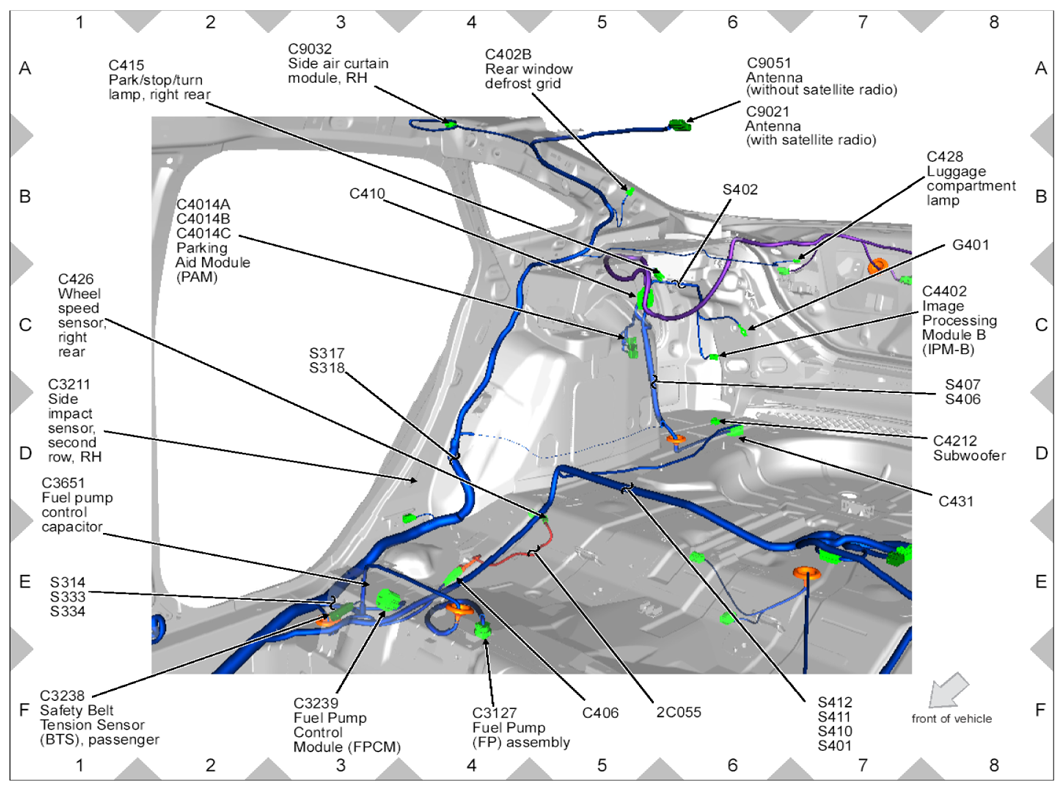

Fig 19: RH Rear Compartment Wiring Harness Connectors Location (1 Of 2)

G07918228

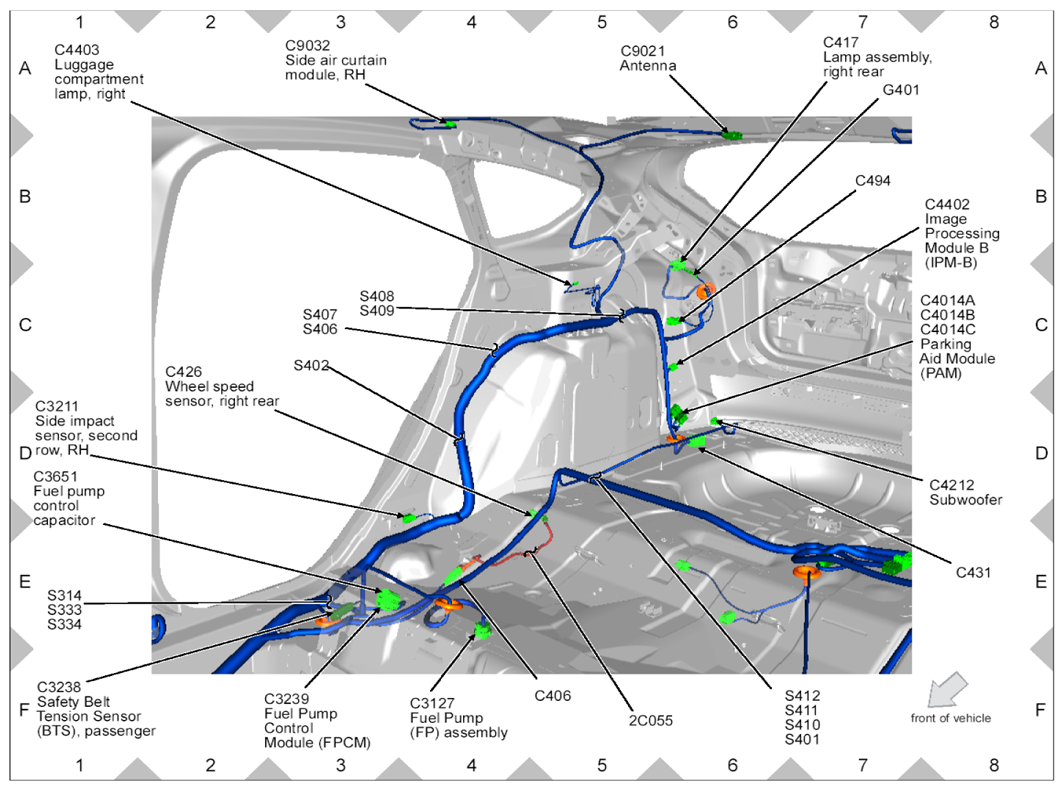

Fig 20: RH Rear Compartment Wiring Harness Connectors Location (2 Of 2)

G07918229

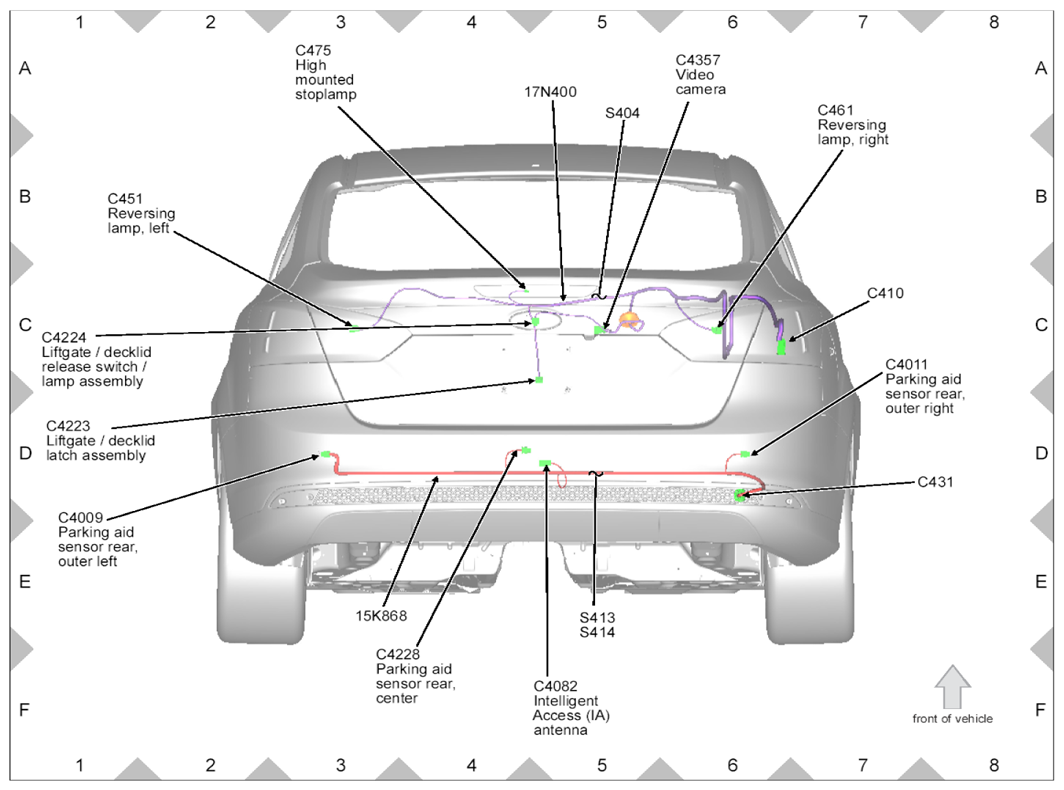

Fig 21: Rear Light Wiring Harness Connectors Location

G07918230

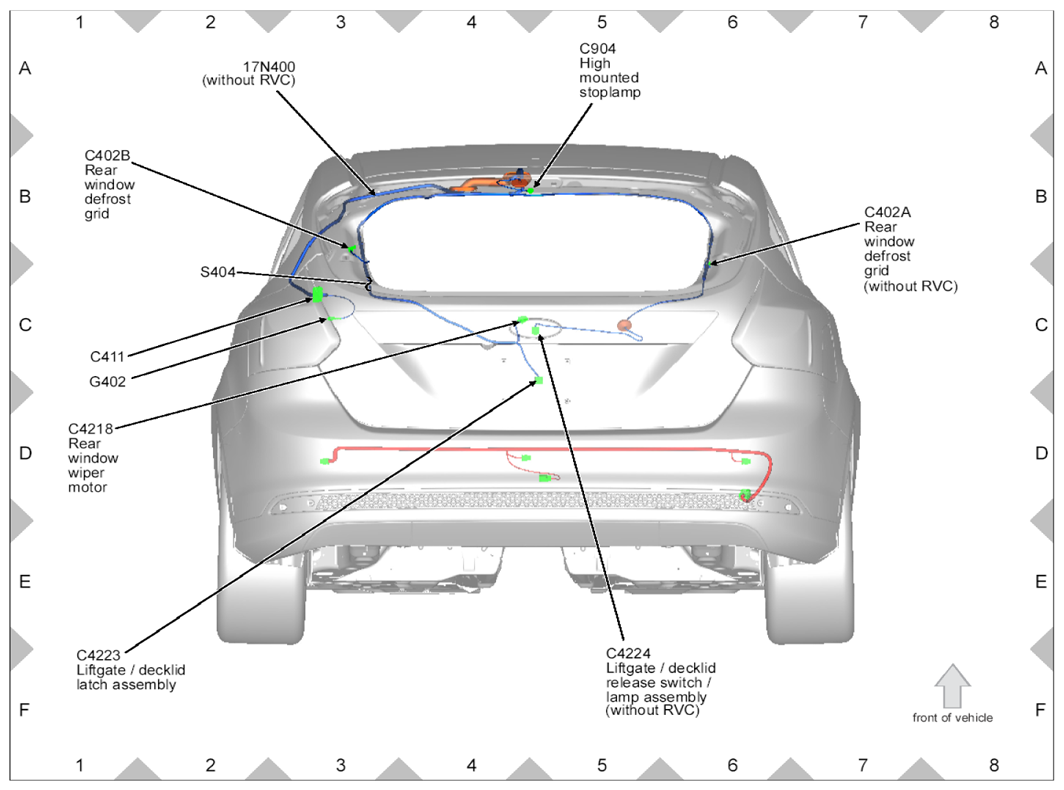

Fig 22: Liftgate Wiring Harness Connectors Location

G07918231

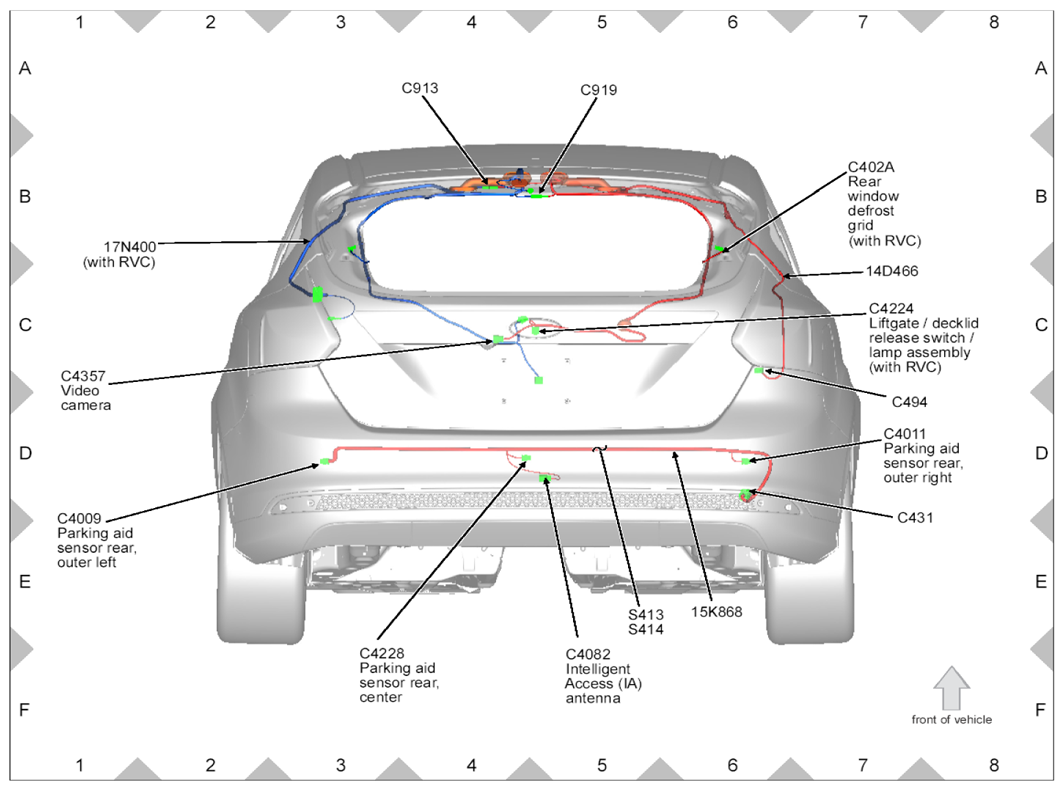

Fig 23: Parking Aid Sensor Wiring Harness Connectors Location

G07918232

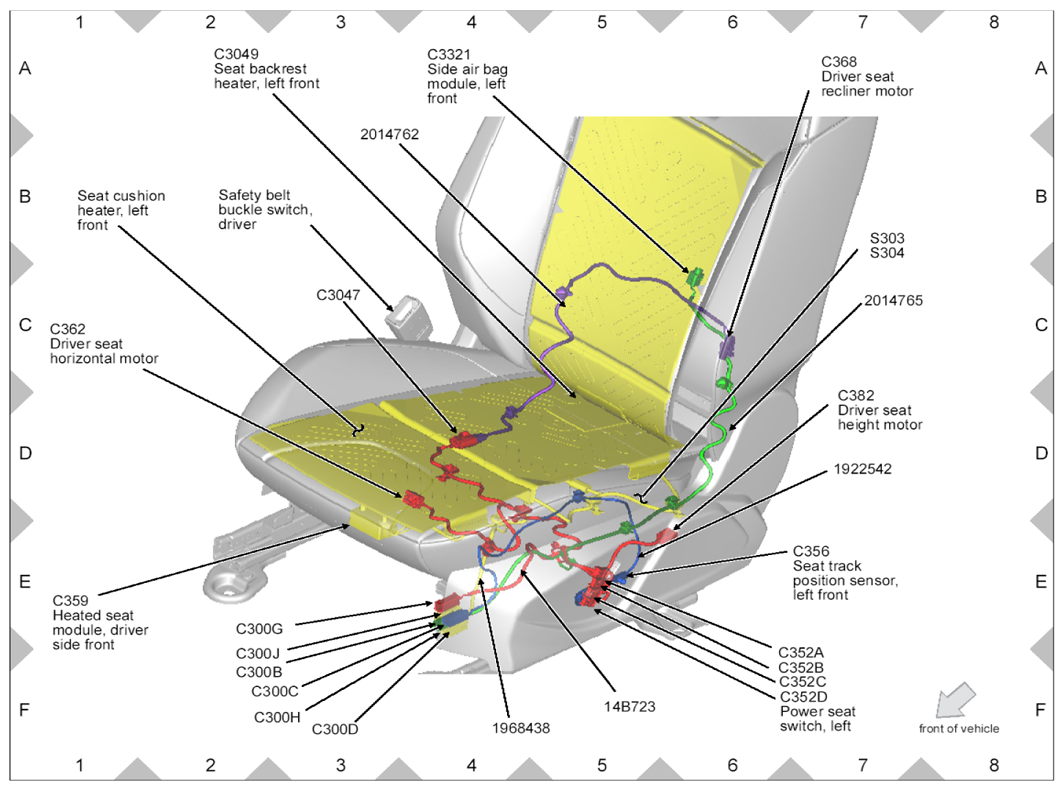

Fig 24: Driver Seat Wiring Harness Connectors Location

G07918233

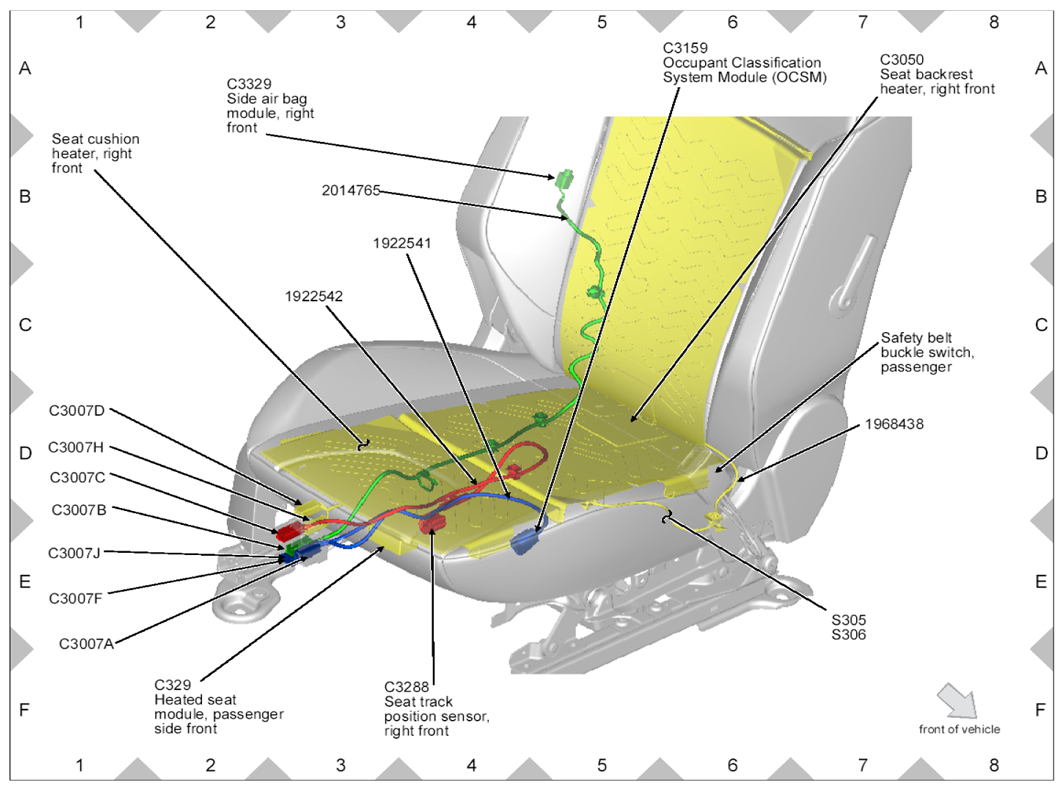

Fig 25: Passenger Seat Wiring Harness Connectors Location

G07918234

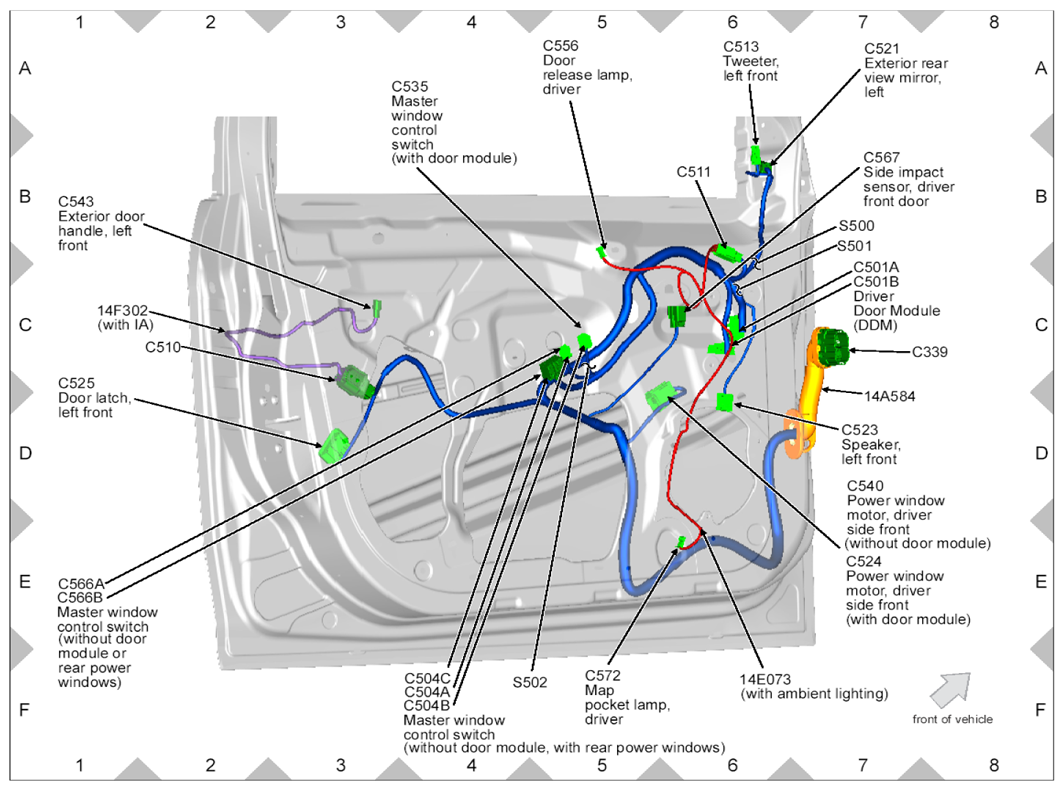

Fig 26: LH Front Door Wiring Harness Connectors Location

G07918235

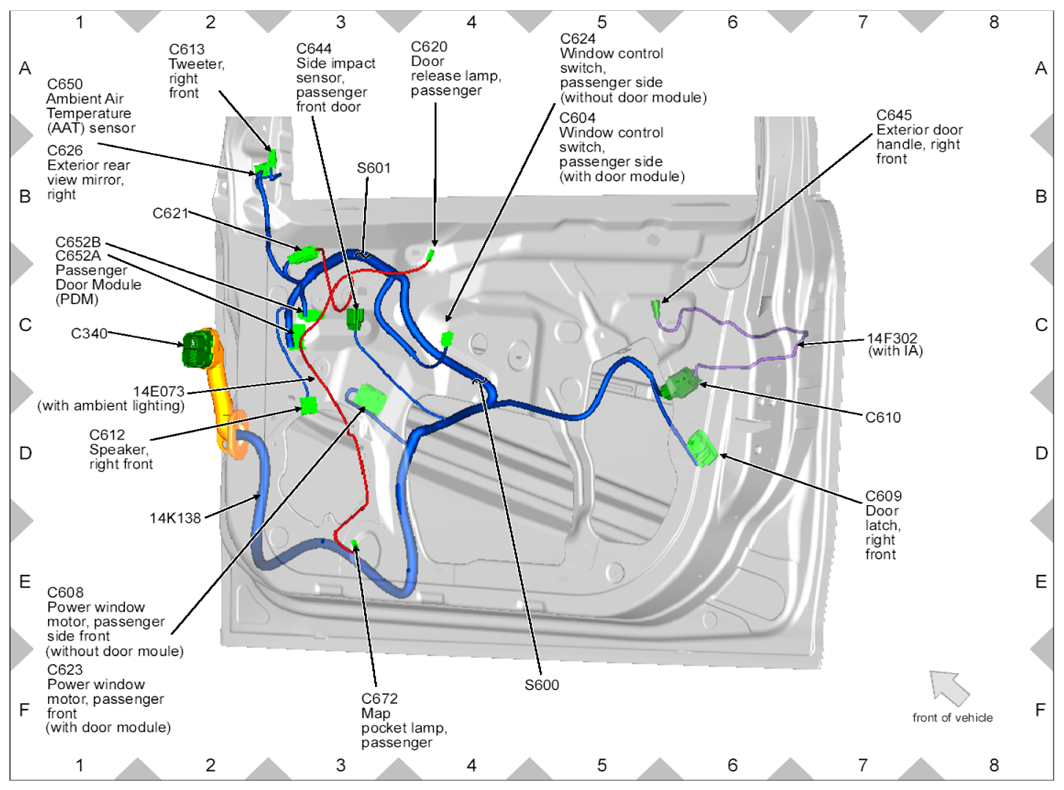

Fig 27: RH Front Door Wiring Harness Connectors Location

G07918236

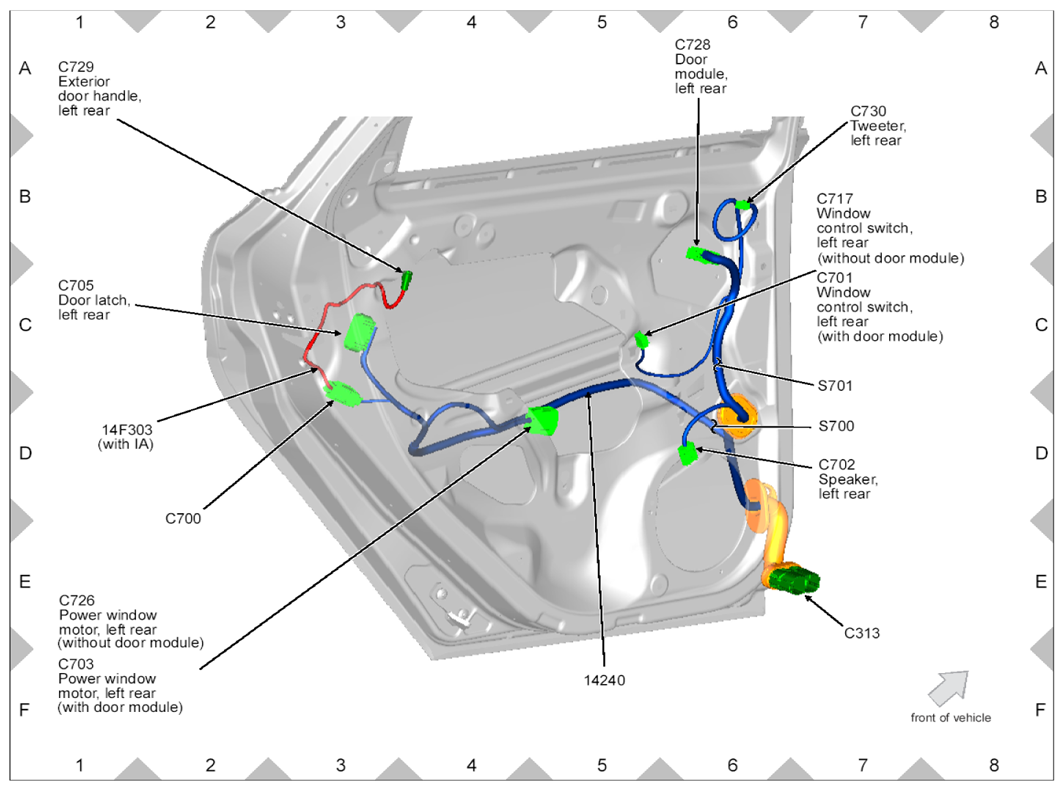

Fig 28: LH Rear Door Wiring Harness Connectors Location

G07918237

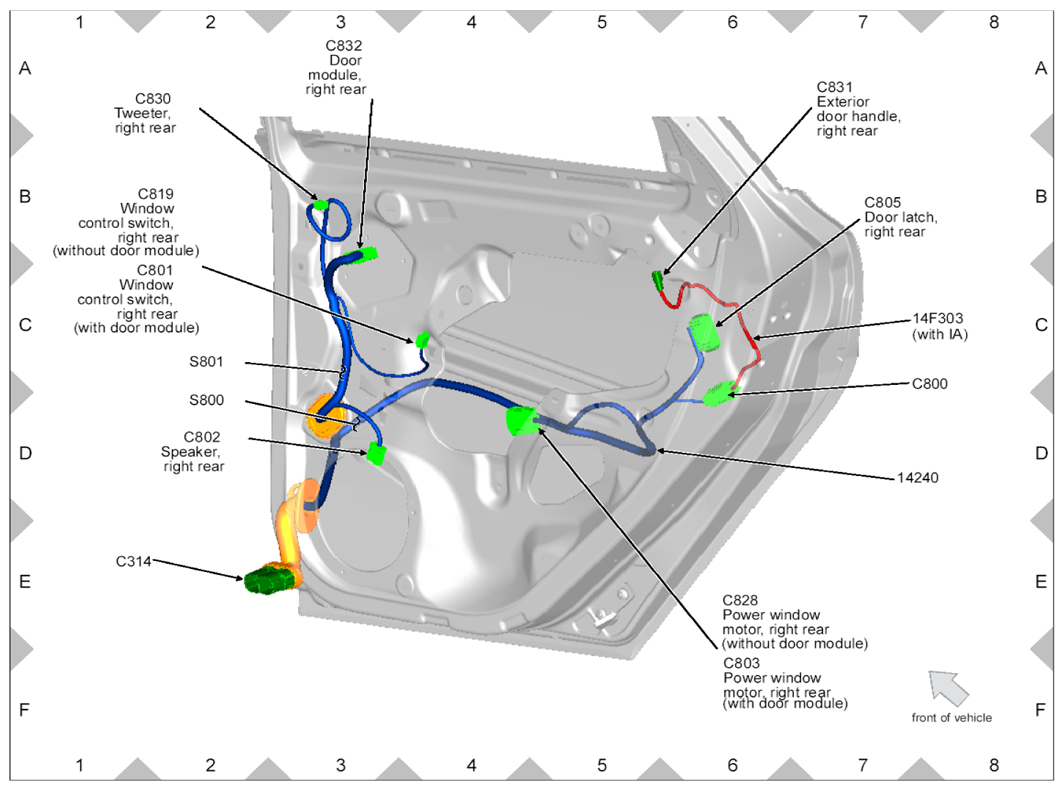

Fig 29: RH Rear Door Wiring Harness Connectors Location

G07918238

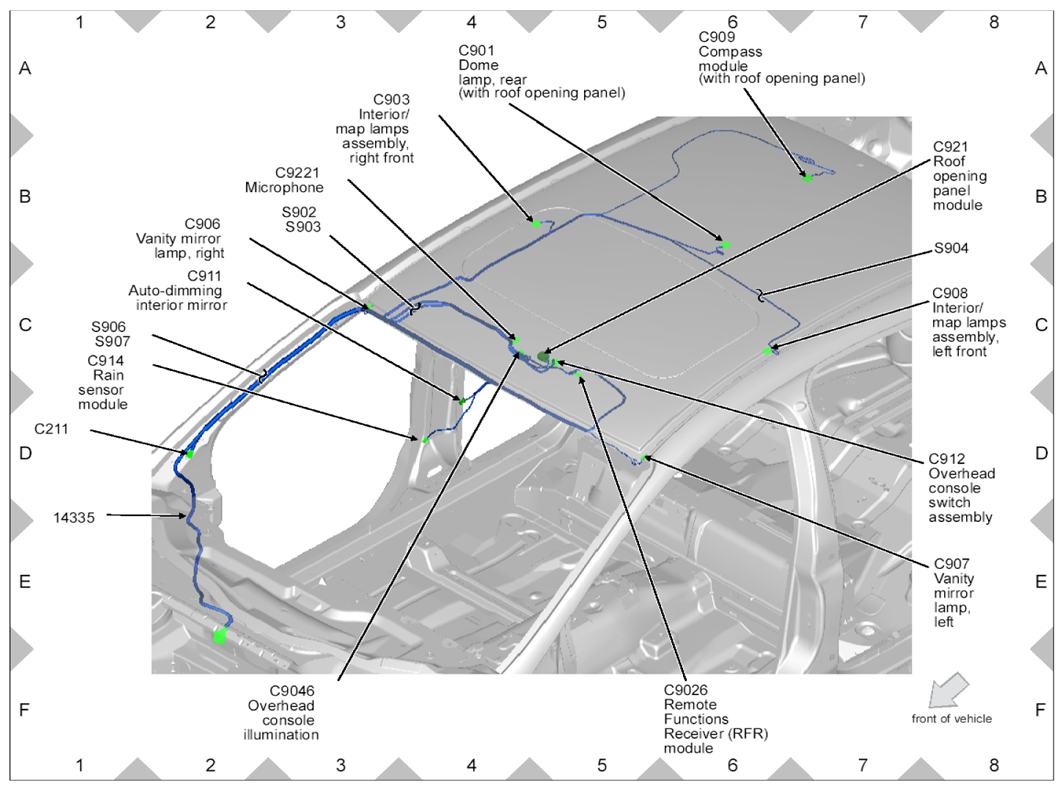

Fig 30: Roof Wiring Harness Connectors Location (1 Of 2)

G07918239

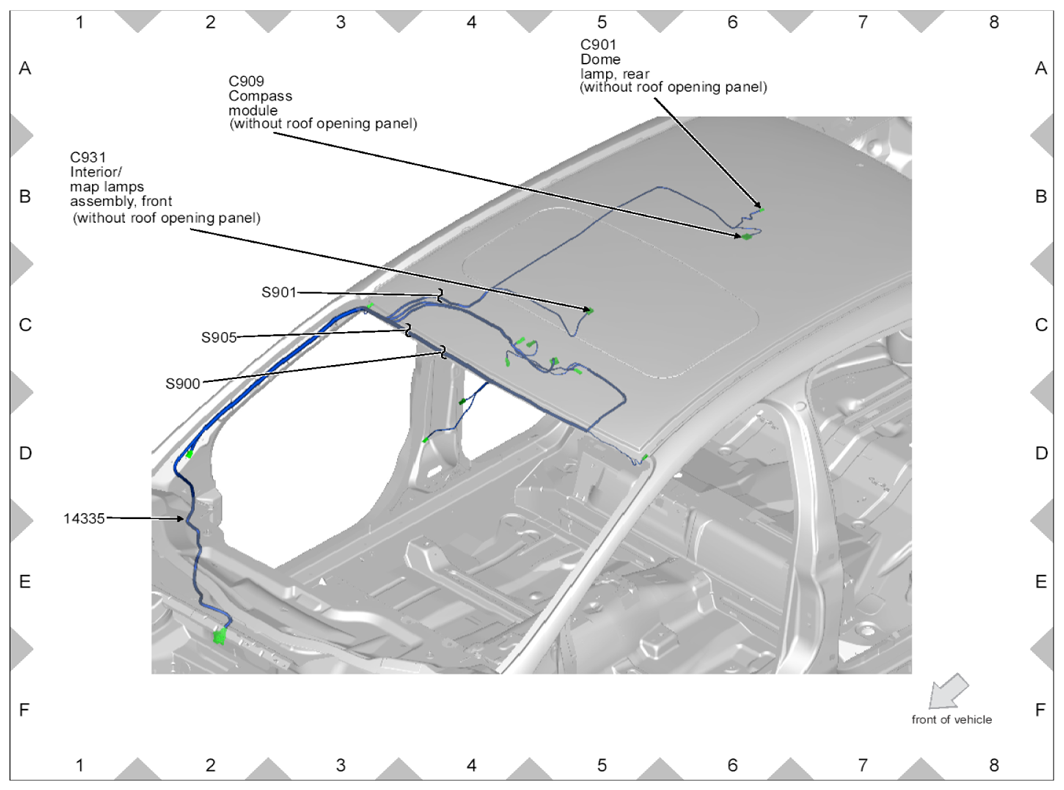

Fig 31: Roof Wiring Harness Connectors Location (2 Of 2)

G07918240
