OEM Ground Distribution: Grounds: G201

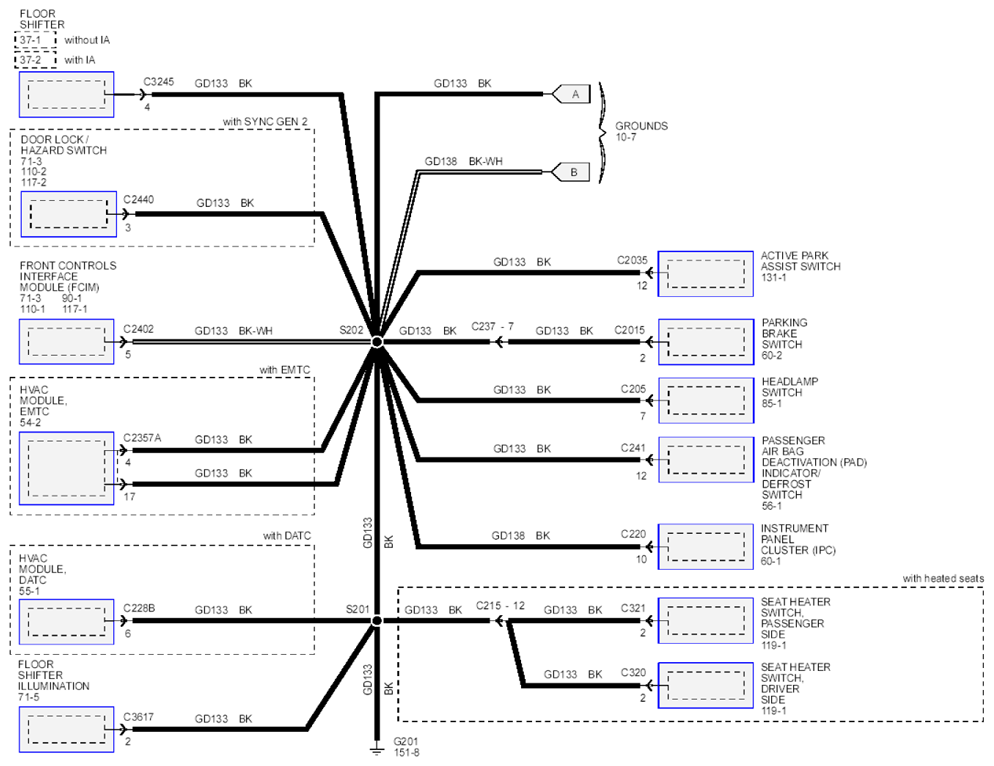

Fig 1: Ground Circuit Diagram - G201 (1 Of 2)

G07918670

Courtesy of FORD MOTOR CO.

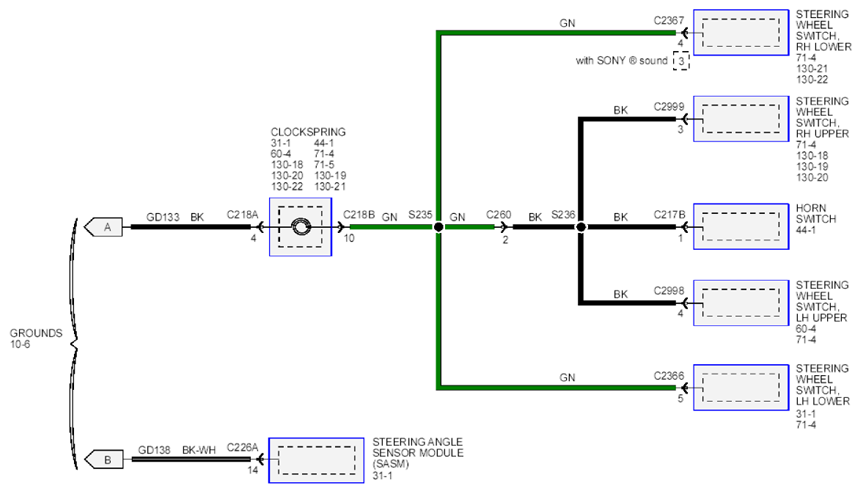

Fig 2: Ground Circuit Diagram - G201 (2 Of 2)

G07918671

Courtesy of FORD MOTOR CO.
