Climate Control System - Component Location
WARNING: This page is about a different variant/trim than selected.

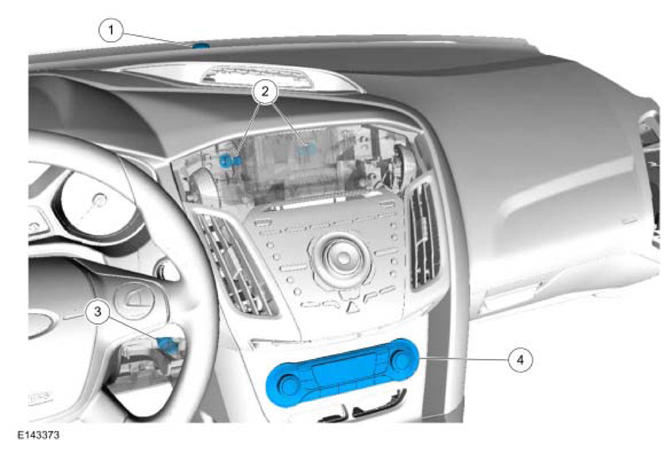

| Item | Description |
|---|---|
| 1 | Sunload sensor |
| 2 | Center register air discharge temperature sensor |
| 3 | In-vehicle temperature & humidity sensor |
| 4 | Heating, Ventilation, and Air Conditioning (HVAC) module |

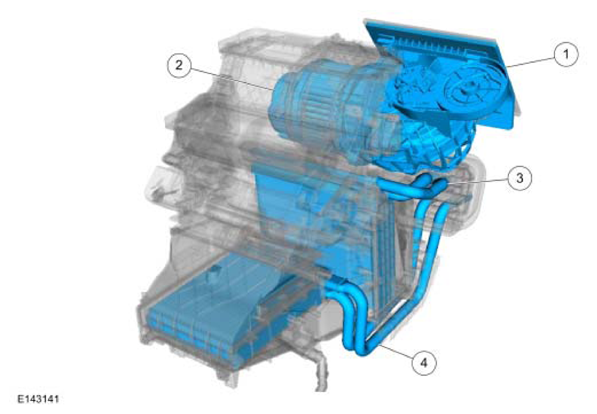

| Item | Description |
|---|---|
| 1 | Air inlet duct |
| 2 | Blower motor |
| 3 | Evaporator |
| 4 | Heater core |

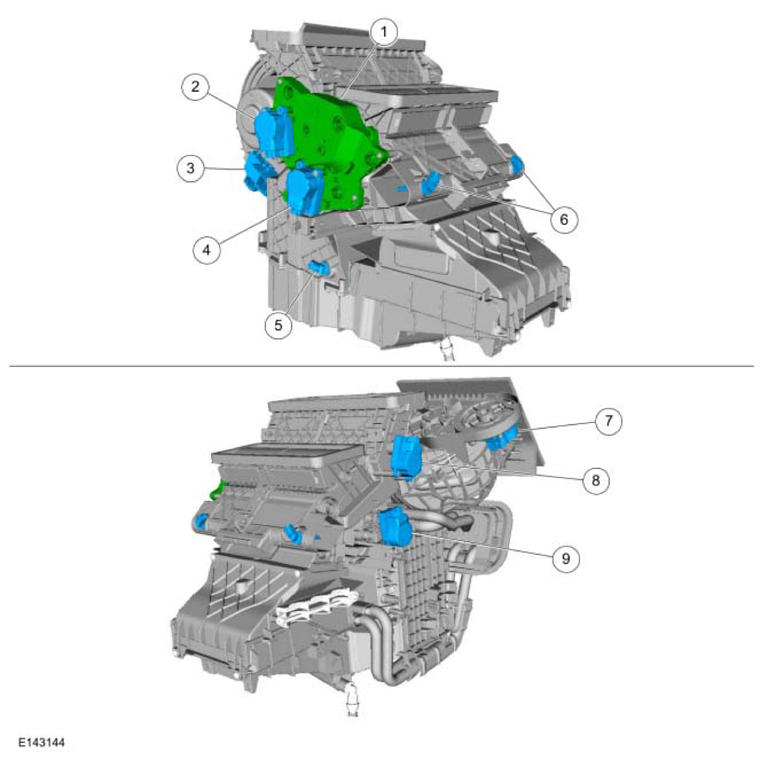

| Item | Description |
|---|---|
| 1 | Actuating assembly |
| 2 | Footwell vent/duct blend door actuator |
| 3 | Blower motor speed control |
| 4 | Temperature blend door actuator LH |
| 5 | Evaporator temperature sensor |
| 6 | Footwell air discharge temperature sensors |
| 7 | Air inlet door mode door actuator |
| 8 | Defrost vent/register blend door actuator |
| 9 | Temperature blend door actuator RH |

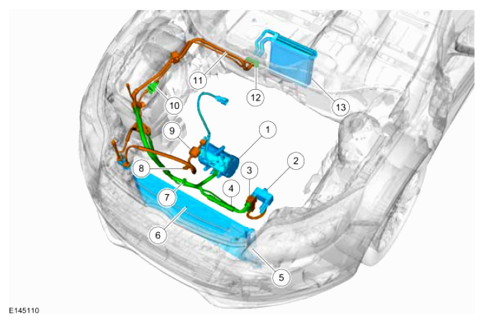

| Item | Description |
|---|---|
| 1 | Air Conditioning Control Module (ACCM) |
| 2 | High voltage battery coolant cooler |
| 3 | High voltage battery coolant cooler thermostatic expansion valve and isolator solenoid valve assembly |
| 4 | High voltage battery coolant cooler thermostatic expansion valve manifold and tube assembly |
| 5 | Integrated receiver drier (part of condenser core) |
| 6 | Condenser |
| 7 | Air Conditioning (A/C) low pressure sensor |
| 8 | Air Conditioning (A/C) high pressure sensor |
| 9 | Air Conditioning (A/C) compressor to condenser discharge line |
| 10 | Cabin air conditioning isolator solenoid valve |
| 11 | Cabin thermostatic expansion valve manifold and tube assembly |
| 12 | Cabin thermostatic expansion valve |
| 13 | Evaporator |

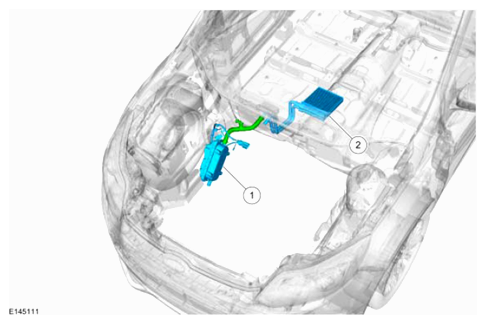

| Item | Description |
|---|---|
| 1 | Cabin coolant heater |
| 2 | Heater core |
