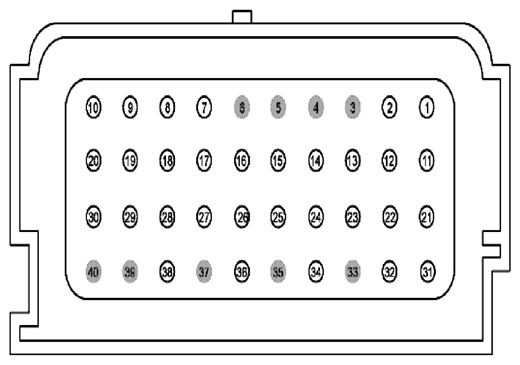

| 1 |
RR109 (BU) |
20 |
CTRL MOD. - INFLATABLE CURTAIN DRIVER SIDE - |
|
| 2 |
CR109 (BN) |
20 |
CTRL MOD. - INFLATABLE CURTAIN DRIVER SIDE + |
|
| 3 |
* |
* |
Not Used |
|
| 4 |
* |
* |
Not Used |
|
| 5 |
* |
* |
Not Used |
|
| 6 |
* |
* |
Not Used |
|
| 7 |
CR106 (VT-GY) |
22 |
CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT PASSENGER OUTBOARD + |
|
| 8 |
RR106 (YE-OG) |
22 |
CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT PASSENGER OUTBOARD - |
|
| 9 |
RR122 (BN) |
20 |
CTRL MOD. - SEAT BELT PRETENSIONER FRONT PASSENGER OUTBOARD - |
|
| 10 |
CR122 (WH-OG) |
20 |
CTRL MOD. - SEAT BELT PRETENSIONER FRONT PASSENGER OUTBOARD + |
|
| 11 |
RR111 (BK) |
20 |
CTRL MOD. - INFLATABLE CURTAIN PASSENGER SIDE - |
|
| 12 |
CR111 (YE) |
20 |
CTRL MOD. - INFLATABLE CURTAIN PASSENGER SIDE + |
|
| 13 |
CR105 (GY-YE) |
20 |
CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT DRIVER SIDE + |
|
| 14 |
RR105 (GN-BU) |
20 |
CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT DRIVER SIDE - |
|
| 15 |
RR147 (YE-VT) |
20 |
CTRL MOD. - SEAT BELT SHOULDER ADAPTIVE LOAD LIMITING PASSENGER OUTBOARD - |
|
| 16 |
CR147 (GN-OG) |
20 |
CTRL MOD. - SEAT BELT SHOULDER ADAPTIVE LOAD LIMITING PASSENGER OUTBOARD + |
|
| 17 |
CR120 (BU-OG) |
20 |
CTRL MOD. - SEAT BELT PRETENSIONER FRONT DRIVER SIDE + |
|
| 18 |
RR120 (BN-GN) |
20 |
CTRL MOD. - SEAT BELT PRETENSIONER FRONT DRIVER SIDE - |
|
| 19 |
RR105 (GY-YE) |
22 |
CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT DRIVER SIDE - |
|
| 20 |
CR105 (GN-BU) |
22 |
CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT DRIVER SIDE + |
|
| 21 |
CR153 (GN-WH) |
20 |
CTRL MOD. - OCCUPANT CLASSIFICATION WEIGHT SENSOR (#3) + |
|
| 22 |
RR153 (YE-VT) |
20 |
CTRL MOD. - OCCUPANT CLASSIFICATION WEIGHT SENSOR (#3) - |
|
| 23 |
RR152 (YE-VT) |
20 |
CTRL MOD. - SENSOR OCCUPANT CLASSIFICATION PRESSURE - |
|
| 24 |
CR152 (GN-WH) |
20 |
CTRL MOD. - SENSOR OCCUPANT CLASSIFICATION PRESSURE + |
|
| 25 |
CR203 (GY-VT) |
22 |
SENSOR - SEAT BELT BUCKLE (SEAT BELT REMINDER) FRONT PASSENGER OUTBOARD |
|
| 26 |
VR217 (GY-YE) |
20 |
SENSOR - SIDE IMPACT FRONT DRIVER SIDE |
|
| 27 |
RR131 (VT-GY) |
20 |
CTRL MOD. - SENSOR SIDE IMPACT FRONT DRIVER SIDE - |
|
| 28 |
RR132 (BU-WH) |
20 |
CTRL MOD. - SENSOR SIDE IMPACT FRONT PASSENGER SIDE - |
|
| 29 |
VR218 (YE-OG) |
20 |
SENSOR - SIDE IMPACT FRONT PASSENGER SIDE |
|
| 30 |
CR201 (BU-OG) |
22 |
SENSOR - SEAT BELT BUCKLE (SEAT BELT REMINDER) FRONT DRIVER SIDE |
|
| 31 |
VCA24 (GN-OG) |
22 |
CTRL MOD. - SENSOR YAW ABS/IVD/TC CAN BUS LOW |
|
| 32 |
VCA23 (BU-WH) |
22 |
CTRL MOD. - SENSOR YAW ABS/IVD/TC CAN BUS HIGH |
|
| 33 |
* |
* |
Not Used |
|
| 34 |
RR155 (GY) |
22 |
CTRL MOD. - SENSORS SEAT BELT BUCKLE - |
|
| 35 |
* |
* |
Not Used |
|
| 36 |
CR234 (BN-GN) |
20 |
RIGHT FRONT SEAT TRACK POSITION SENSOR FEED |
|
| 37 |
* |
* |
Not Used |
|
| 38 |
CR232 (BN-GN) |
20 |
LEFT FRONT SEAT TRACK POSITION SENSOR FEED |
|
| 39 |
* |
* |
Not Used |
|
| 40 |
* |
* |
Not Used |
|
