Power Steering Control Module (PSCM) Connector End View (C1463A)

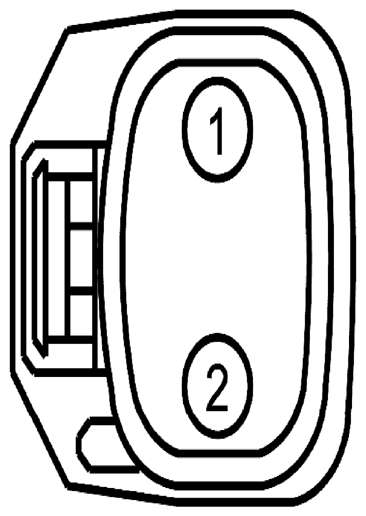

Fig 1: Identifying Power Steering Control Module (PSCM) Connector (C1463A)
G10374962Courtesy of FORD MOTOR CO.
Pin Circuit Gauge Circuit Function Qualifier
1 SBB03 (BU) 10 MEGAFUSE 1
2 GD120 (BK) 10 GROUND - FENDER FRONT LEFT
