Selector Lever - Paddle Shift: Installation

  1. Connect the paddle shifter electrical connector.

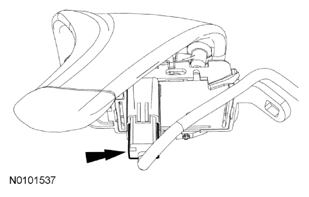

    Fig 1: Location of Paddle Shifter Electrical Connector
    G08049799Courtesy of FORD MOTOR CO.
  2. Install the paddle shifter on the steering wheel and position the corner of the back steering wheel trim cover back in place.

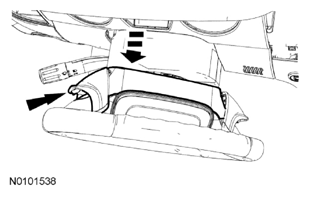

    Fig 2: Installing Paddle Shifter On Steering Wheel
    G08049800Courtesy of FORD MOTOR CO.
  3. Install the 2 paddle shifter screws.

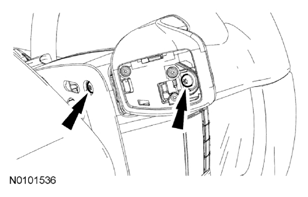

    Fig 3: Location of Paddle Shifter Screws
    G08049801Courtesy of FORD MOTOR CO.
  4. Install the paddle shifter cover.
    Fig 4: Location of Paddle Shifter Cover
    G08049802Courtesy of FORD MOTOR CO.
  5. Install the driver air bag module. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM .
