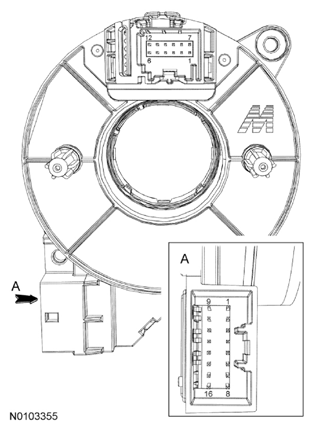

Clockspring Internal Paddle Shifter Circuits
Courtesy of FORD MOTOR CO.
| Clockspring Pin Number C218B End Component Side |
Clockspring Pin Number C218A End Component Side |
Circuit Function |
| 6 |
3 |
Upshift signal |
| 2 |
7 |
Ground supplied from PCM |
| 12 |
11 |
Downshift signal |
