Transaxle Support Insulator - 3.5L GTDI: Notes
SPECIAL TOOLS
| Bar, Engine Spreader 303-1454 |
|
| Eye, Engine Lift 303-1245 |
|
| Support Bar, Engine 303-F072 |
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Threadlock and Sealer TA-25 |
WSK-M2G351-A5 |

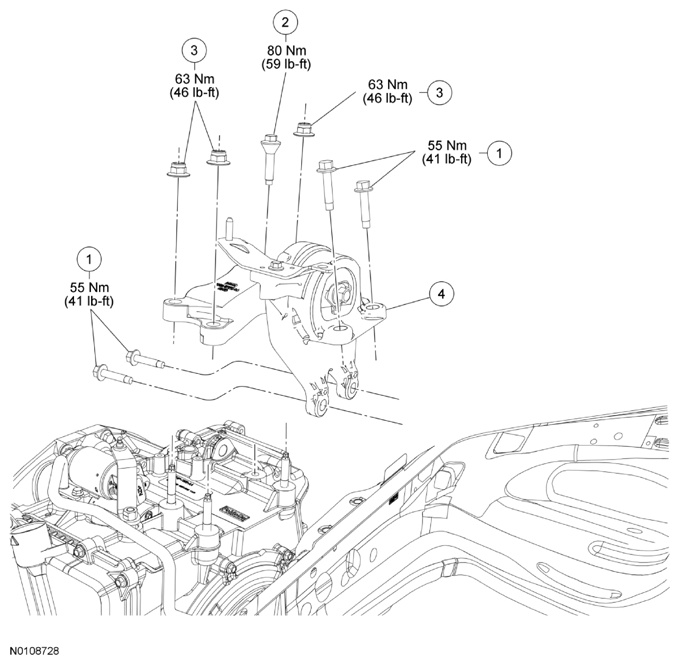

Fig 1: Exploded View Of Transaxle Support Insulator, Bracket Bolts And Nut With Torque Specifications-3.5L GTDI
| Item | Part Number | Description |
|---|---|---|
| 1 | W709234 | Transaxle support insulator bolts |
| 2 | W712711 | Transaxle support insulator bracket bolt |
| 3 | W714682 | Transaxle support insulator bracket nuts |
| 4 | 6F020 | Transaxle support insulator |
