Input Shaft: Assembly

  1. Using a suitable tube, install the new bearing.

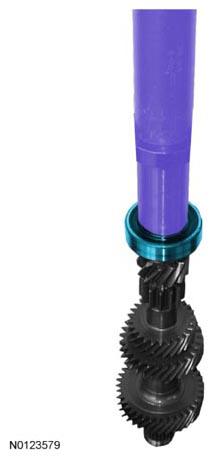

    Fig 1: Installing Bearing Using Suitable Tube
    G07980100Courtesy of FORD MOTOR CO.
  2. Using a suitable tube, install the new bearing.

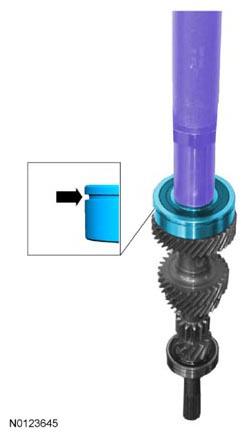

Fig 2: Locating Bearing
G07980101Courtesy of FORD MOTOR CO.
