Fiesta SEL, Standard Trans
>>
Repair and Diagnosis
>>
Transmission
>>
Manual Trans
>>
Manual Transaxle (IB5)
>>
Description And Operation
>>
Manual Transaxle
>>
Power Flow
>>
Fifth Gear
Fifth Gear

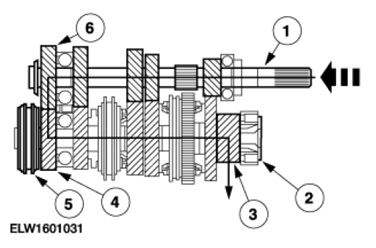

Fig 1: Power Flow Diagram - Fifth Gear
Courtesy of FORD MOTOR CO.
1
Input shaft
2
Output shaft
3
Output pinion
4
Gearing, 5th gear
5
Gear synchronizer, 5th gear
6
5th gear
