Hood Latch and Components - Exploded View

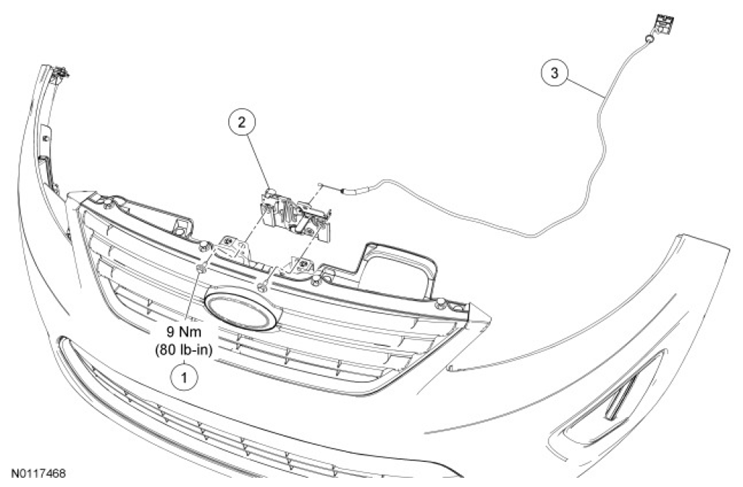

Fig 1: Exploded View Of Hood Latch Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W702928	Hood latch bolts (2 required)
2	16700	Hood latch
3	16916	Hood latch release handle and cable

1. For additional information, refer to the appropriate procedures.
