Home >> Ford >> 2012 >> Fiesta SE, 4D Hatchback, Automatic DCT Trans >> Repair and Diagnosis >> Quick Lookups >> Wiring Diagrams >> OEM Ground Distribution >> Grounds >> G302

OEM Ground Distribution: Grounds: G302

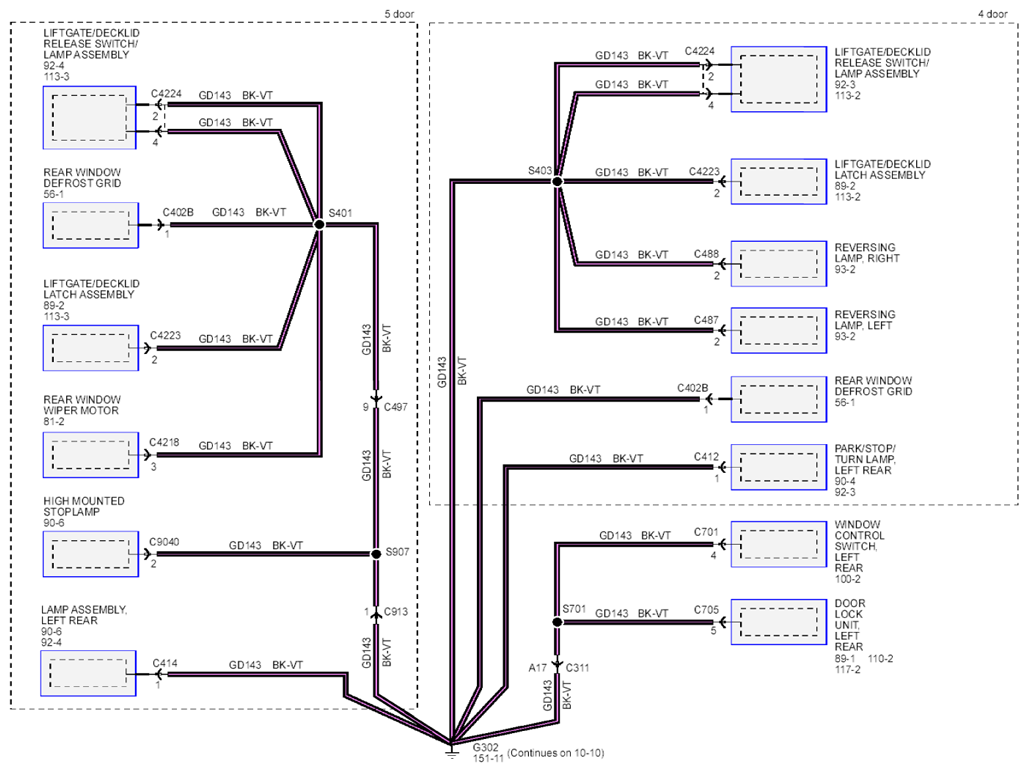

Fig 1: Grounds Circuit Diagram - G302

G07894411

Courtesy of FORD MOTOR CO.

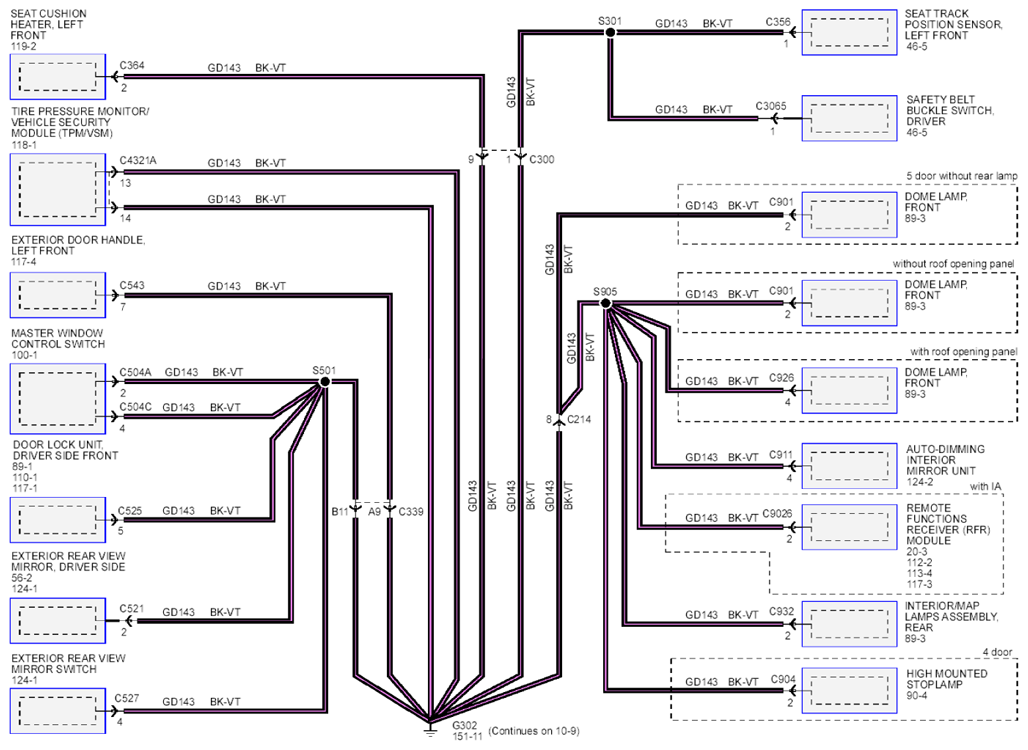

Fig 2: Grounds Circuit Diagram - G302

G07894412

Courtesy of FORD MOTOR CO.
