OEM Ground Distribution: Grounds: G201

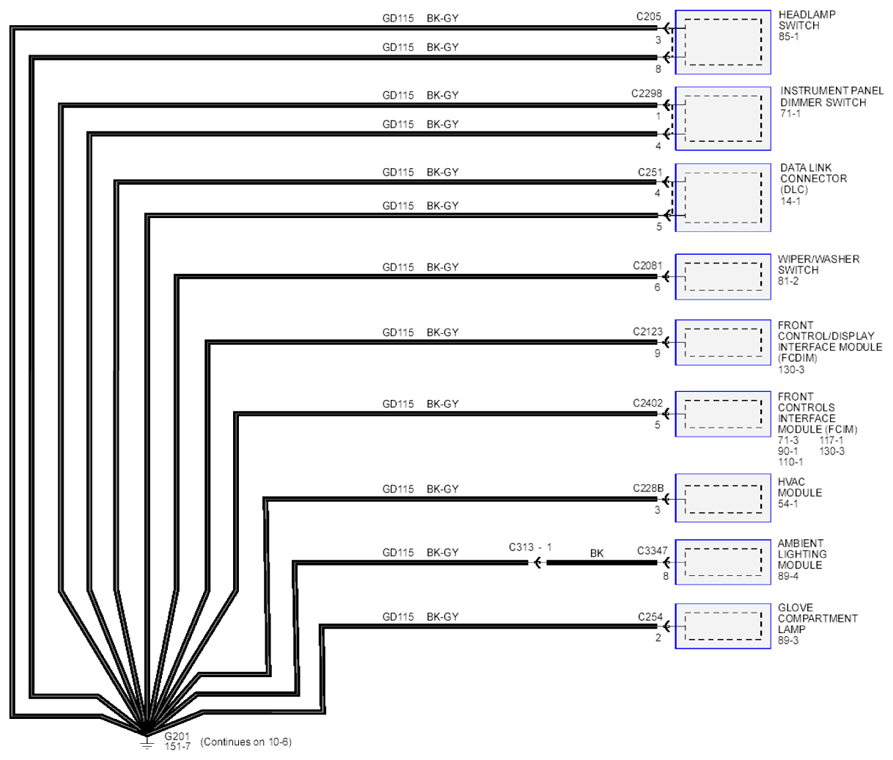

Fig 1: Grounds Circuit Diagram - G201

G07894407

Courtesy of FORD MOTOR CO.
