Pinpoint Tests RG: Reductant Pump: Introduction

NOTE: Regeneration may occur during normal operation. During regeneration, diagnostic procedures may display biased values. If a regeneration occurs during diagnostic procedures, allow the process to complete before continuing diagnostics.

This pinpoint test is intended to diagnose the following:

reductant pump
harness circuits: RDPC and VPWR
powertrain control module (PCM) (12A650)

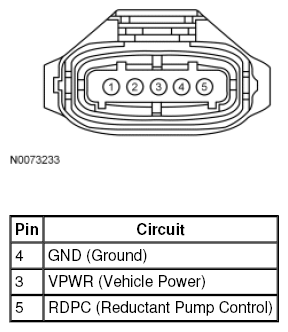

Fig 1: Identifying Reductant Pump Assembly Connector
Courtesy of FORD MOTOR CO.

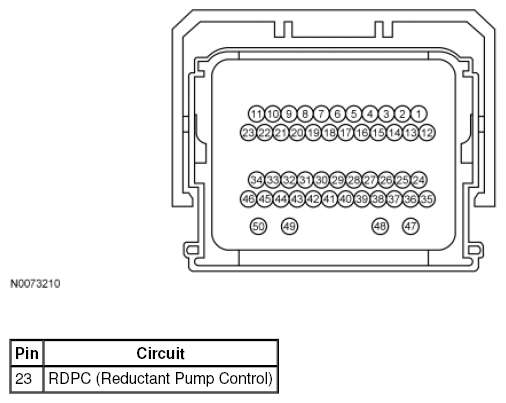

Fig 2: Identifying Powertrain Control Module-T (PCM-T) Connector
Courtesy of FORD MOTOR CO.
