Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Controls - Description & Operation (Diesel)
>>
Fuel System
>>
Low Pressure Fuel System
>>
Low Pressure Fuel System
Low Pressure Fuel System

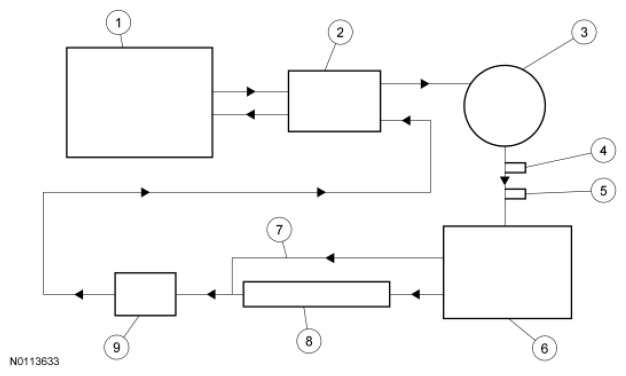

Fig 1: Low Pressure Fuel System Diagram
Courtesy of FORD MOTOR CO.
Item
Number
Description
1
-
Fuel tank
2
-
Fuel conditioning module
3
-
Secondary fuel filter
4
-
Fuel delivery pressure switch
5
-
Fuel rail temperature (FRT) sensor
6
-
High pressure pump
7
-
High pressure pump bypass
8
-
Fuel rail
9
-
Fuel cooler
