OEM Ground Distribution: Grounds: G302

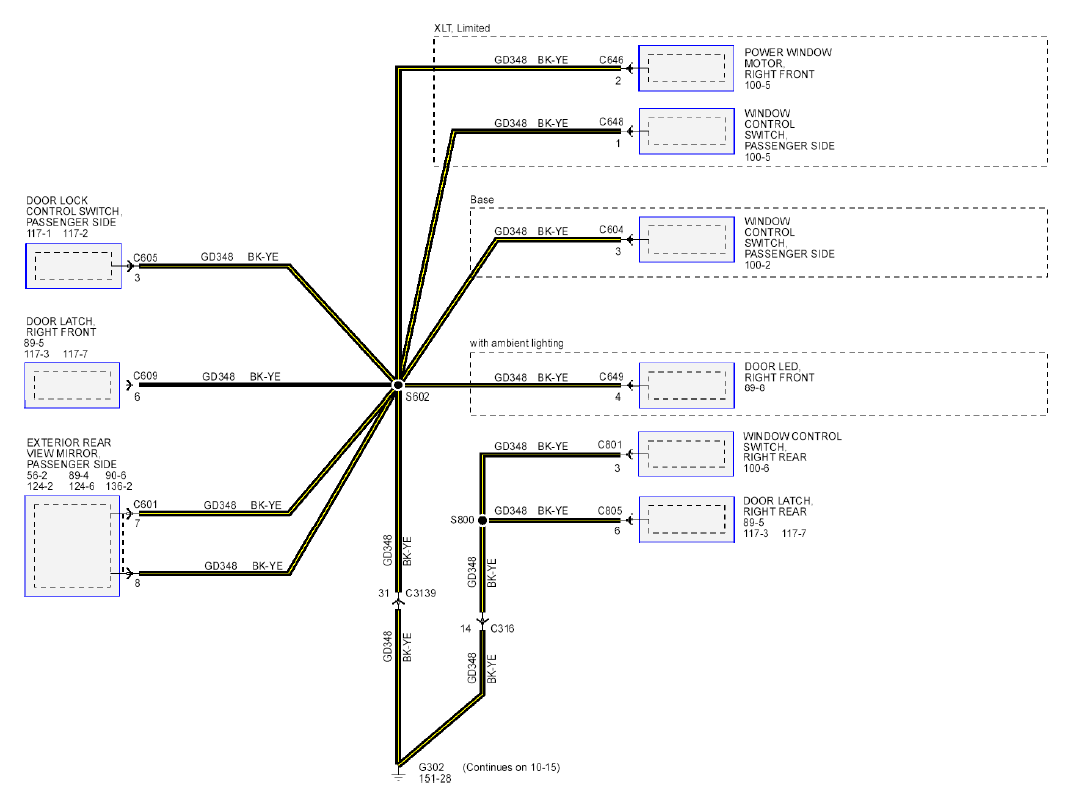

Fig 1: Grounds Circuit Diagram (G302)

G07895283

Courtesy of FORD MOTOR CO.

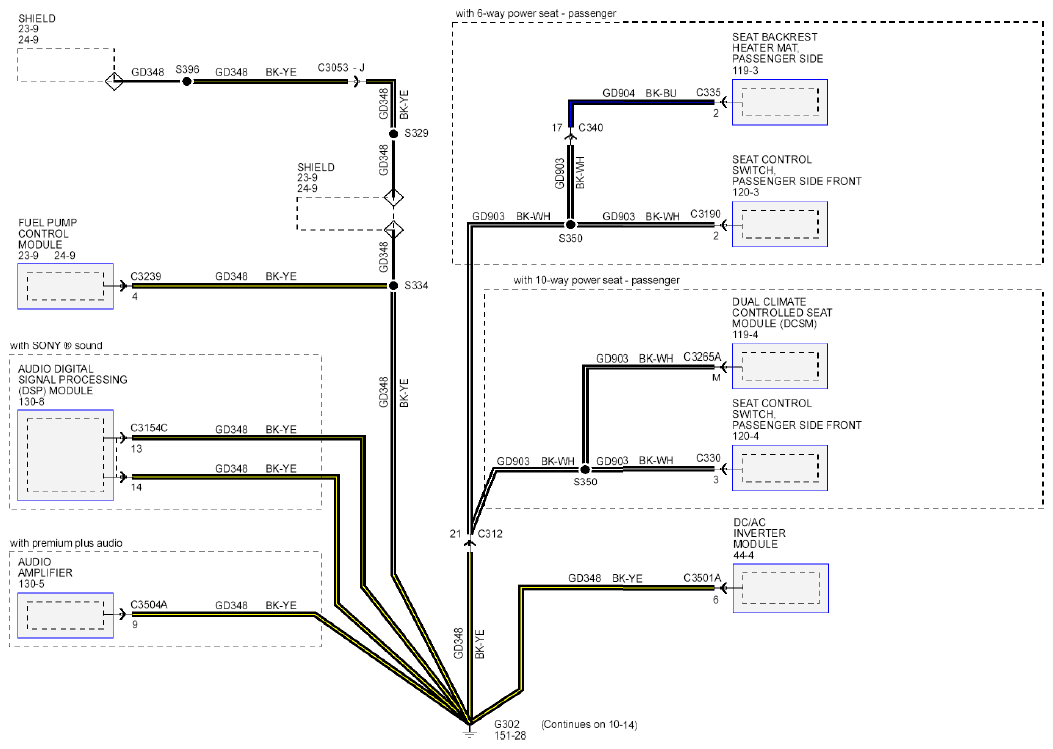

Fig 2: Grounds Circuit Diagram (G302)

G07895284

Courtesy of FORD MOTOR CO.
