OEM Ground Distribution: Grounds: G201

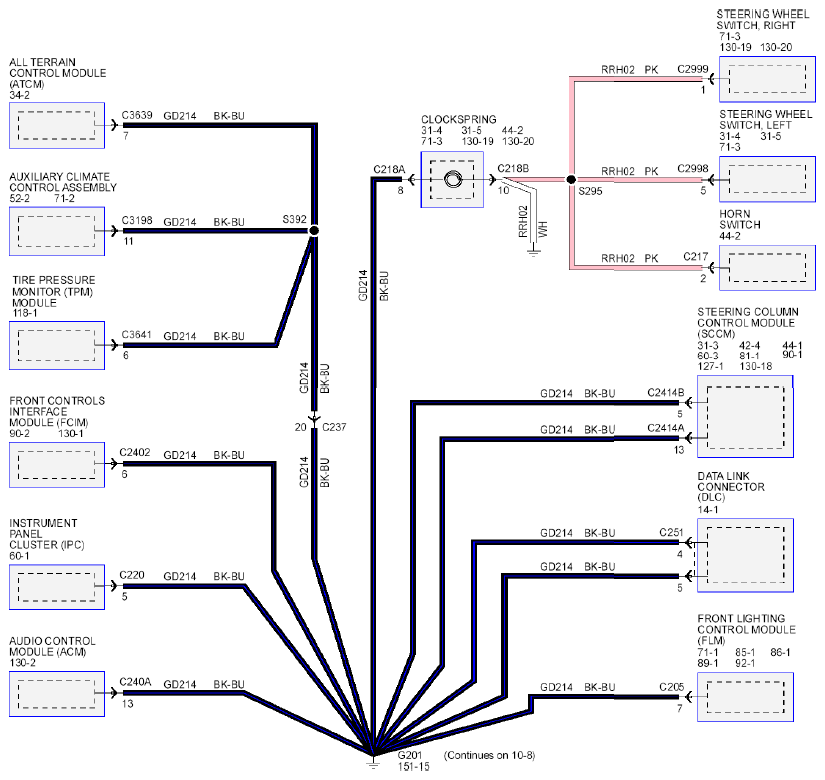

Fig 1: Grounds Circuit Diagram (G201)

G07895276

Courtesy of FORD MOTOR CO.

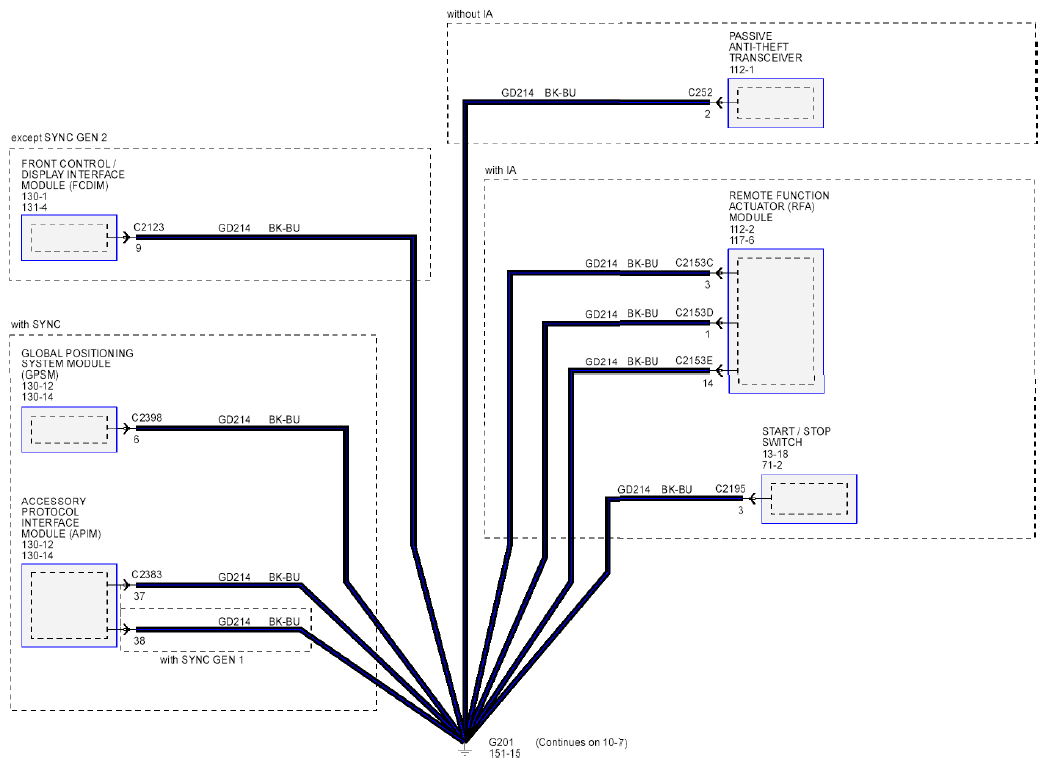

Fig 2: Grounds Circuit Diagram (G201)

G07895277

Courtesy of FORD MOTOR CO.
