OEM Ground Distribution: Grounds: G103

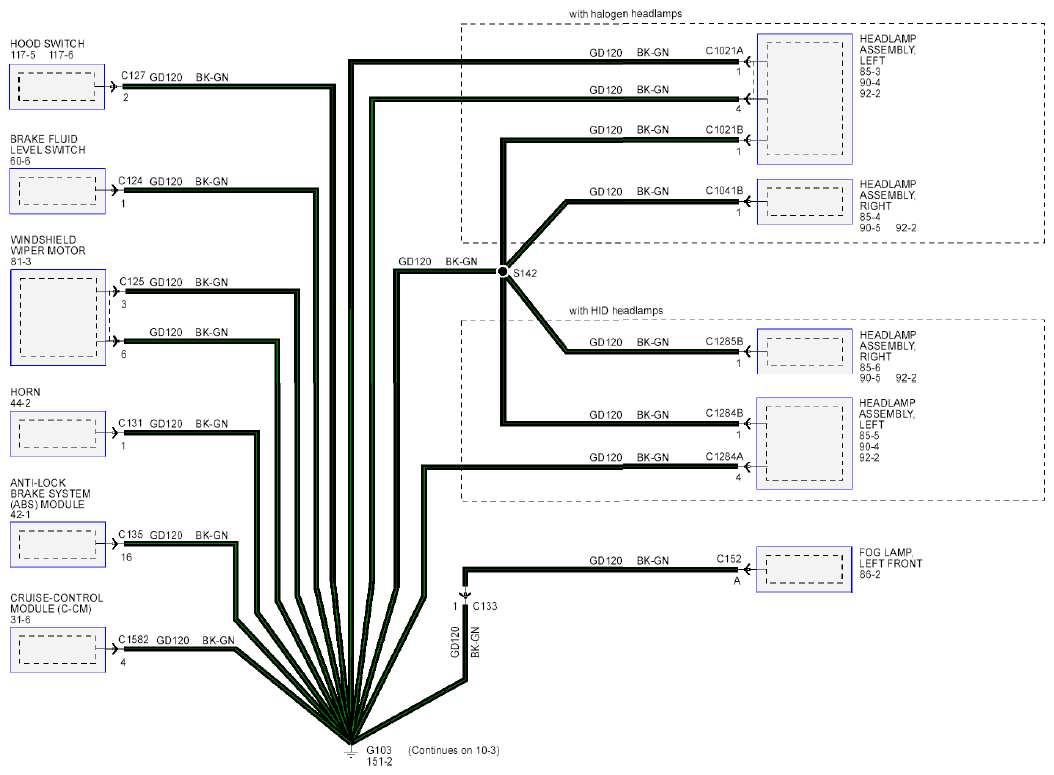

Fig 1: Grounds Circuit Diagram (G103)

G07895271

Courtesy of FORD MOTOR CO.
