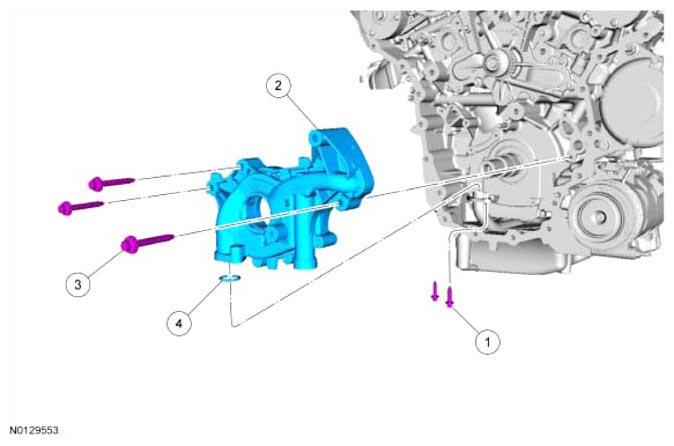

Exploded View
WARNING: This page is about a different variant/trim than selected.
Courtesy of FORD MOTOR CO.
| Item |
Service Part Number |
Description |
Torque |
Material Name |
Notes |
| 1 |
W503278 |
Oil pump screen and pickup tube bolts (2 required) |
10 Nm (89 lb-in) |
- |
- |
| 2 |
6621 |
Oil pump |
- |
- |
- |
| 3 |
W503282 |
Oil pump bolt (3 required) |
10 Nm (89 lb-in) |
- |
- |
| 4 |
6625 |
O-ring seal |
- |
- |
- |
